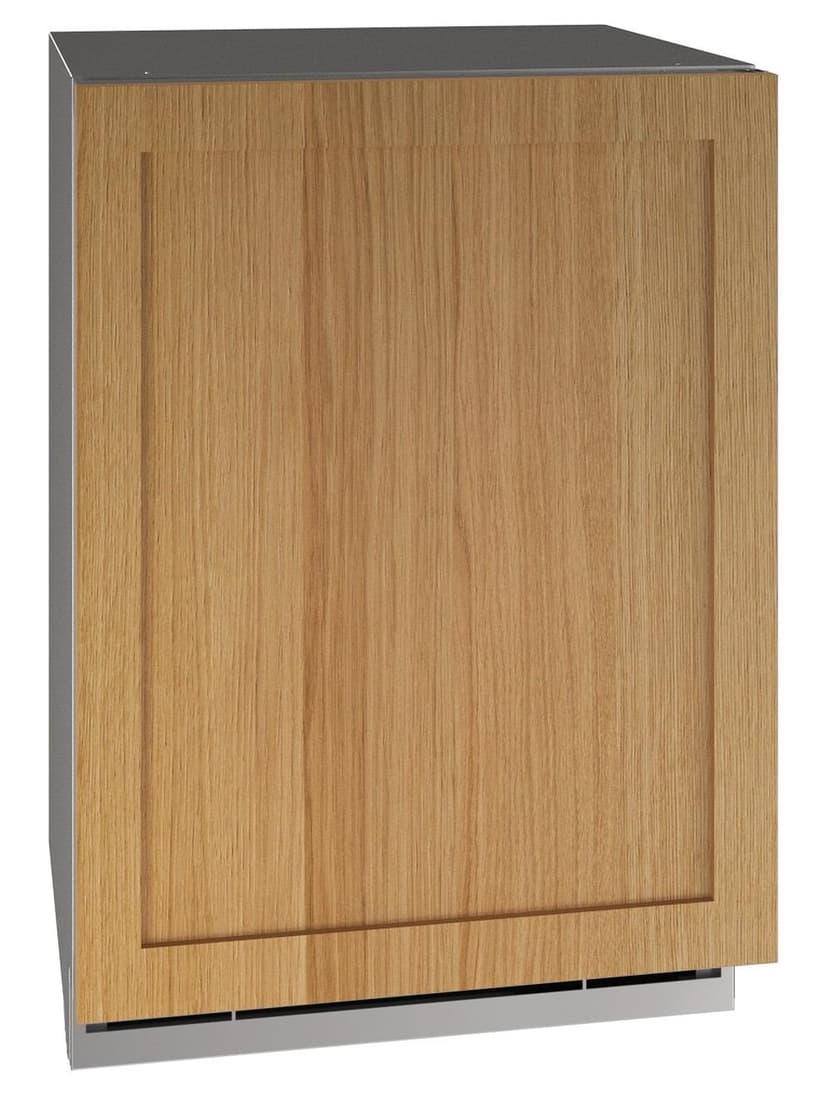

U-LINE 24" Dual-zone Beverage Center with Integrated Solid Panel Ready

The UHBD524IS01A 24" Dual-Zone Beverage Center offers exceptional storage capacity and temperature control, making it an ideal addition to any home bar or entertainment area. With its versatile design, this beverage center can be built-in to cabinetry or used in freestanding applications, providing flexibility in installation.

Highlights

• Dual Zone Temperature Control: Equipped with two independently controlled temperature zones, allowing you to store wine and various beverages at their optimal temperatures. The upper zone has a temperature range of 38˚F - 65˚F, while the lower zone ranges from 33˚F - 45˚F, catering to a variety of drinks.

• 5.1 Cu. Ft. Capacity: With a spacious interior, this beverage center can accommodate up to 72 (12 Oz) cans, 14 (750ml) wine bottles, or 68 (12 Oz) bottles, ensuring you always have plenty of beverages on hand for guests or gatherings.

• Convection Cooling: Utilizes a state-of-the-art variable speed compressor and convection cooling system to provide quick cool down and consistent temperatures, ensuring your beverages are always perfectly chilled.

• Stainless Steel Interior: The stainless steel interior not only enhances durability but also makes cleaning a breeze, while being energy efficient to maintain optimal performance.

• Removable Full-Extension Features: Includes a slide & secure bin, stainless steel shelf, and wine racks, all fully extendable for easy access and organization of your beverages.

• Star-K Certified: Features Sabbath Mode, making it suitable for use in observant Jewish households, with Star-K certification ensuring compliance with religious requirements.

• Quick Access Touch Panel Controls: Easily adjust internal temperatures with the touch panel controls, providing convenient and quick access to temperature settings.

• Field Reversible Door: The door ships right-hand hinged but is field reversible, allowing for flexible installation to suit your space and preferences.

• Full-Depth Lower Interior: Industry-exclusive full-depth lower interior design provides additional storage space, maximizing storage capacity for your beverages.

• Wi-Fi compatible with the U-Connect™ App
• Industry Exclusive: Full-depth lower interior maximizes storage options
• Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
• Convection cooling system provides a quick cool down and consistent temperature
• Stainless steel interior
• Stainless steel cabinet, grille, and accents
• U-Adjust™ Interior: 17 adjustable positions
• One removable full-extension Slide & Secure™ Bin
• One removable full-extension stainless steel shelf
• Two removable full-extension wine racks
• Digital touch pad control
• Use of U-Line U-Connect™ App is included during the two-year parts and labor warranty period
• Independently controlled dual-zones
• Temperature range: (upper compartment) 38(degree)F - 65(degree)F; (lower compartment) 33(degree)F - 45(degree)F (The upper temperature must be the lower temperature, maximum 20(degree) higher)
• Adjustable bright white or blue LED lighting
• Soft close door with articulating hinges
• Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)
• Stainless steel handle (7/8" diameter)
• Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
• Field reversible door is shipped right-hand hinged

A favorite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 24" 5 Class Slide & Secure™ Dual-Zone Beverage Center is the ultimate home bar companion. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. Robust and refined, U-Line's 5 Class Collection features an industry-exclusive full-depth lower interior allowing you to maximize storage space, adjustable blue and white LED lighting, and U-Adjust™ 17 position adjustment for full extension wine racks, Slide & Secure™ robust bins, and stainless steel sliding shelf. to contain and protect. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry. This product is Wi-Fi compatible. Access product controls and settings and receive notifications to monitor activity through the U-Line U-Connect™ App.

Amps: Running (115 v)	1.6 A
Capacity Bottle	68
Capacity Can	72
Capacity: Total Volume (cu ft)	5.1 cu ft
Capacity: Wine Bottle (750 ml)	14
Control Type	Digital
Dimensions: Product Depth	22 15/16" (583mm)
Dimensions: Product Height	33 11/16" (855mm)
Dimensions: Product Width	23 5/8" (600mm)
Energy Consumption: Avg. Per Year	220 kWh
Refrigerant Type	R600a
Sabbath (Star K Certified)	Yes
Shipping Depth	28.63" (727 mm)
Shipping Height	36" (914 mm)
Shipping Weight	163 lbs (74 kg)
Shipping Width	26.5" (673 mm)
Temperature Range	38°F to 65°F / 33°F to 45°F
