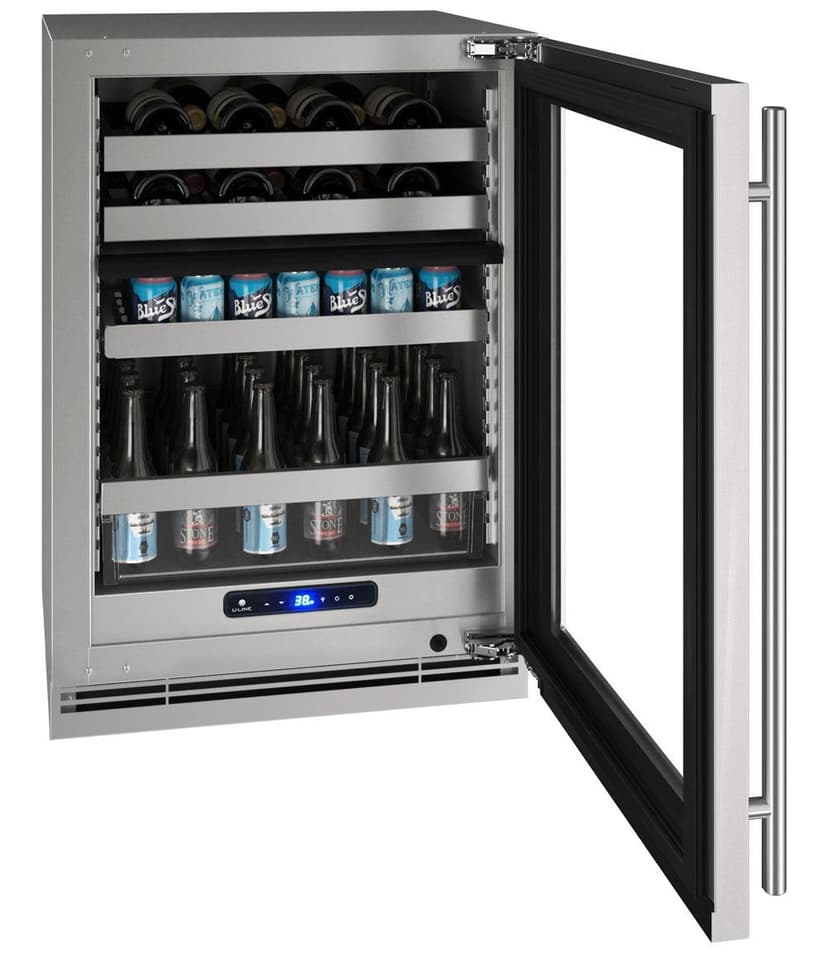

U-LINE 24" Dual-zone Beverage Center - Stainless Frame with Field Reversible Hinge

The UHBD524SG01A 24" Dual-Zone Beverage Center offers versatile storage options and precise temperature control, making it an excellent addition to any home bar or entertainment area. Designed to accommodate a variety of beverages, this beverage center combines functionality with style to enhance your hosting experience.

Highlights

• Dual Zone Temperature Control: Featuring two independently controlled temperature zones, this beverage center allows you to store wine and other beverages at their ideal serving temperatures. The upper zone offers a temperature range of 38˚F - 65˚F, while the lower zone ranges from 33˚F - 45˚F, ensuring optimal chilling for different types of drinks.

• 5.1 Cu. Ft. Capacity: With a spacious interior, this beverage center can hold up to 72 (12 Oz) cans, 14 (750ml) wine bottles, or 68 (12 Oz) bottles, providing ample storage space for all your favorite beverages.

• Convection Cooling: Utilizing advanced convection cooling technology and a variable speed compressor, this beverage center delivers quick cooling and maintains consistent temperatures throughout the interior, preserving the quality of your drinks.

• Stainless Steel Interior: The stainless steel interior not only adds a sleek, modern look to the beverage center but also ensures easy cleaning and maintenance. Additionally, it is energy-efficient, contributing to overall energy savings.

• Removable Full-Extension Features: Equipped with full-extension bins, a slide & secure bin, a stainless steel shelf, and wine racks, all of which are removable for convenient access and organization of beverages.

• Star-K Certified: With Star-K certification and Sabbath Mode functionality, this beverage center meets the requirements of observant Jewish households, allowing for use during religious observances.

• Quick Access Touch Panel Controls: The touch panel controls provide quick and easy access to adjust internal temperatures, allowing you to customize settings to suit your preferences.

• Field Reversible Door: While the door ships right-hand hinged, it is field reversible, providing flexibility in installation to accommodate your space and layout preferences.

• Full-Depth Lower Interior: The industry-exclusive full-depth lower interior design maximizes storage space, providing additional room for storing beverages and enhancing organizational capabilities.

• Wi-Fi compatible with the U-Connect™ App
• Industry Exclusive: Full-depth lower interior maximizes storage options
• Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
• Convection cooling system provides a quick cool down and consistent temperature
• Stainless steel interior
• Stainless steel cabinet, grille, and accents
• U-Adjust™ Interior: 17 adjustable positions
• One removable full-extension Slide & Secure™ Bin
• One removable full-extension stainless steel shelf
• Two removable full-extension wine racks
• Digital touch pad control
• Use of U-Line U-Connect™ App is included during the two-year parts and labor warranty period
• Independently controlled dual-zones
• Temperature range: (upper compartment) 38(degree)F - 65(degree)F; (lower compartment) 33(degree)F - 45(degree)F (The upper temperature must be the lower temperature, maximum 20(degree) higher)
• Adjustable bright white or blue LED lighting
• Soft close door with articulating hinges
• Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)
• Stainless steel handle (7/8" diameter)

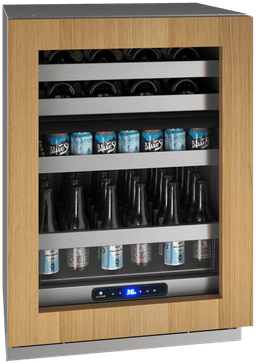

• Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
• Field reversible door is shipped right-hand hinged

A favorite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 24" 5 Class Slide & Secure™ Dual-Zone Beverage Center is the ultimate home bar companion. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. Robust and refined, U-Line's 5 Class Collection features an industry-exclusive full-depth lower interior allowing you to maximize storage space, adjustable blue and white LED lighting, and U-Adjust™ 17 position adjustment for full extension wine racks, Slide & Secure™ robust bins, and stainless steel sliding shelf. to contain and protect. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry. This product is Wi-Fi compatible. Access product controls and settings and receive notifications to monitor activity through the U-Line U-Connect™ App.

Amps: Running (115 v)	1.6 A
Capacity Bottle	68
Capacity Can	72
Capacity: Total Volume (cu ft)	5.1 cu ft
Capacity: Wine Bottle (750 ml)	14
Control Type	Digital
Dimensions: Product Depth	22 15/16" (583mm)
Dimensions: Product Height	33 11/16" (855mm)
Dimensions: Product Width	23 5/8" (600mm)
Energy Consumption: Avg. Per Year	220 kWh
Refrigerant Type	R600a
Sabbath (Star K Certified)	Yes
Shipping Depth	28.63" (727 mm)
Shipping Height	36" (914 mm)
Shipping Weight	163 lbs (74 kg)
Shipping Width	26.5" (673 mm)
Temperature Range	38°F to 65°F / 33°F to 45°F
