The WHIRLPOOL 6.4 Total Cu. Ft. Combo Wall Oven with Air Fry When Connected (Model: WOEC5030LZ) is a versatile and innovative appliance designed to revolutionize your cooking experience. This combination wall oven features advanced technology, intuitive controls, and spacious capacity, making it a perfect addition to any modern kitchen.
Highlights
-
Total Cu. Ft. Capacity: With a total capacity of 6.4 cubic feet, this combo wall oven offers ample space for cooking multiple dishes simultaneously, making it ideal for large gatherings, holiday meals, and everyday cooking needs.
-
Air Fry Technology: The WOEC5030LZ oven is equipped with Air Fry technology, allowing you to enjoy crispy, delicious fried foods with up to 75% less fat than traditional frying methods. Simply select the Air Fry mode, and hot air circulates around the food to deliver crispy results without the need for oil.
-
Connected Features: This combo wall oven is designed to be connected to your smartphone or tablet via the Whirlpool app, allowing you to remotely monitor and control the oven from anywhere. You can preheat the oven, adjust cooking settings, and receive alerts and notifications right on your mobile device.
-
Multi-Function Oven: The WOEC5030LZ oven offers a variety of cooking functions, including baking, broiling, roasting, and more, giving you the flexibility to prepare a wide range of recipes with precision and ease.
-
True Convection Cooking: With true convection cooking, this oven ensures even heat distribution and consistent results, whether you're baking, roasting, or broiling. The convection fan circulates hot air throughout the oven cavity, eliminating cold spots and reducing cooking times.
-
Easy-to-Use Controls: The WOEC5030LZ oven features intuitive touch controls and a user-friendly interface, making it easy to navigate and select cooking settings. The digital display provides clear feedback and status updates, allowing you to monitor the cooking process with ease.
-
Self-Cleaning Function: This combo wall oven is equipped with a self-cleaning function, making maintenance and upkeep a breeze. Simply select the self-clean cycle, and the oven will automatically remove baked-on food and grease, leaving the interior sparkling clean without the need for harsh chemicals or scrubbing.
-
Stylish Design: Featuring a sleek and modern design, this combo wall oven adds a touch of elegance to any kitchen space. The stainless steel finish and contemporary styling complement a variety of kitchen styles and decor, while the large viewing window allows you to check on your food without opening the oven door.
- 1.4 Cu. Ft. Microwave Capacity
- Explore your options. There s room for whatever you re craving.
- Fit most dishes for your family meals with 1.4 Cu. Ft. Microwave Capacity.
- 5.0 Cu. Ft. Oven Capacity
- Easily cook large meals with 5.0 Cu. Ft. Oven Capacity.
- 6-in-1 Wall Oven with Fan Convection
- Cook however you want with 6 cooking modes in one wall oven: Frozen Bake™ Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry connect your appliance to receive Automatic Feature Updates.
- 6.4 Cu. Ft. Total Capacity
- Easily cook a whole meal with 6.4 Cu. Ft. Total Capacity.
- 900-Watt Cooking Power
- Get quick cooking with 900 watts of cooking power in the microwave.
- Add 30 Seconds Option
- Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- Adjustable Self-Clean Cycle
- Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- Air Fry Mode When Connected
- Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.* Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect
- An American Company for Over 100 Years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Assisted Cooking
- Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
- Automatic Feature Updates When Connected
- Select Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they re released.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.
- Bake
- Make your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses heat from the radiant element in the oven to cook food.
- Broil
- When you place food close to the oven s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
- CleanRelease® Non-Stick Interior
- Help prevent spills from sticking in the microwave with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Connects to Yummly® Smart Thermometer
- The Yummly® Smart Thermometer helps eliminate guesswork in the kitchen by helping you cook meat exactly how you like it. Paired with your Whirlpool® Smart Thermometer Smart Oven, it allows you to set the oven temperature and monitor progress from your phone. When the meat is finished cooking, you'll get a notification and your oven witll automatically turn off.
Yummly® Smart Thermometer sold separately.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.
- Convect Bake
- Convect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.*
*Compared to a traditional thermal-bake cycle on the same model.
- Convect Broil
- When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
- Delay Start
- Delay Start lets you start the washer at a later time to match your schedule and take advantage of reduced energy rates where available.
- Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
- Dishwasher-Safe Air Fry Basket (Sold Separately)
- For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.
- Extra-Large Oven Window
- Keep an eye on your meal through the Extra-Large Oven Window.
- See and savor. A bigger view lets you check on food without having to open the oven door.
- FIT System Limited Guarantee
- The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*
*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
- Fan Convection Cooking
- Cook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.
- Favorites
- Create customized cycles and save them in the Maytag™ app. Instantly access Favorites from the app and send them to your washer or dryer to start the load remotely.
- Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.
Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
- Fingerprint Resistant
- Available in a stainless finish that s easy to clean and resists fingerprints and smudges.
- Hidden Bake Element
- A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
- The oven's bake element is hidden under the oven floor, providing even heat and a smooth surface that is easy to clean.
- Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
- Keep Warm™ Setting
- The Keep Warm™ setting uses low heat to keep food warm in your oven.
- Multi-Step Cooking
- Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven or microwave all at once. The temperature automatically adjusts based on the recipe you enter for great results without having to monitor your meal.
- Rapid Preheat
- Save time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus two-rack without option.
- Remote Start
- With remote start enabled, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
- Sabbath Mode
- Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
- Scan-to-Connect Technology*
*U.S. only.
- You don t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running.
Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect
- Sensor Cooking
- Take out the guesswork with sensors that track the cooking progress of your food in the microwave and automatically adjust cook times.
- Smart Wall Oven
- When you re busy in another room, use your smartphone to monitor cooking progress, so you re ready to eat when dinner s done.
- Steam Clean Option
- Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent traditional high heat self-clean cycles.
- Steam Cooking
*Accessory sold separately
- Clear up cooktop space by steaming foods like vegetables and fish right in the microwave. Steam accessory available separately.
- SteamClean Option
- Spot cleans the oven floor in just 20 minutes using only 1/4 cup of water. Use periodically to clean light spills on the bottom of the oven, reducing the need for frequent self-clean cycles.
- Touchscreen
- Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
- Turntable On/Off Option
- Choose whether the microwave turntable rotates or not to accommodate a wide range of dish sizes.
- Voice Control with a Compatible Voice-Enabled Device*
*U.S. only.
- Control your kitchen no matter what you ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.
- Yummly® Guided Cooking *U.S. only.
- Yummly® Guided Cooking* makes meal prep easier by helping you answer the question what s for dinner? before it s even asked. Recipes with the Connected Fork icon in the Yummly® App include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to select Whirlpool® Smart Wall Ovens at the right times, so dinner s ready when your family s hungry.**
*U.S. only. **Select recipes only. Compatible smart appliance required. Appliance must be set to remote enable. Features subject to change. Details and privacy info at whirlpool.com/connect and yummly.com.
- Frozen Bake™ Technology*
- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
5.0 Cu. Ft. Oven Capacity
Easily cook large meals with 5.0 Cu. Ft. Oven Capacity.
FIT System Limited Guarantee
The FIT System Limited Guarantee ensures your new Whirlpool(R) Wall Oven will fit or get up to $300 toward cabinet modification.*(BR)(BR)*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool(R) Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
Fingerprint Resistant
Available in a stainless finish that s easy to clean and resists fingerprints and smudges.
Smart Wall Oven
When you re busy in another room, use your smartphone to monitor cooking progress, so you re ready to eat when dinner s done.
Touchscreen
Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
Frozen Bake(TM) Technology*
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Take on every meal with a smart wall oven microwave combo with air fryer built for multitasking. Get crispy results in this combo wall oven with Air Fry Mode (available via Automatic Feature Updates* when appliance is connected), while Fan Convection Cooking and Frozen Bake™ Technology let you get meals to the table easily. Clean everyday spills with the Steam Clean Option.
Ada Compliant |
No |
Cul |
Yes |
Energy Rating |
349 |
Prop65 |
Standard |
Star K Certified |
Star K Certified |
Ul |
Yes |
Control Type |
Glass Touch Digital Display |
Display Color |
Full Color |
Electronic Display Type |
LCD Touch Screen |
Microwave Selections |
Add 30 Seconds; Add A Minute; Beverage; Control Lock; Cook Power; Cook Time; Cook/Start; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Frozen Vegetable; Keep Warm; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; |
Flush Installation Approved |
Yes |
Fuel Type |
Electric |
Grill |
No |
Oven Automatic Shut-off |
Yes |
Oven Selections |
Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; Rapid Preheat; Sabbath Mode; Stop Time; Timer |
Oven Type |
Combination |
Turntable |
Yes |

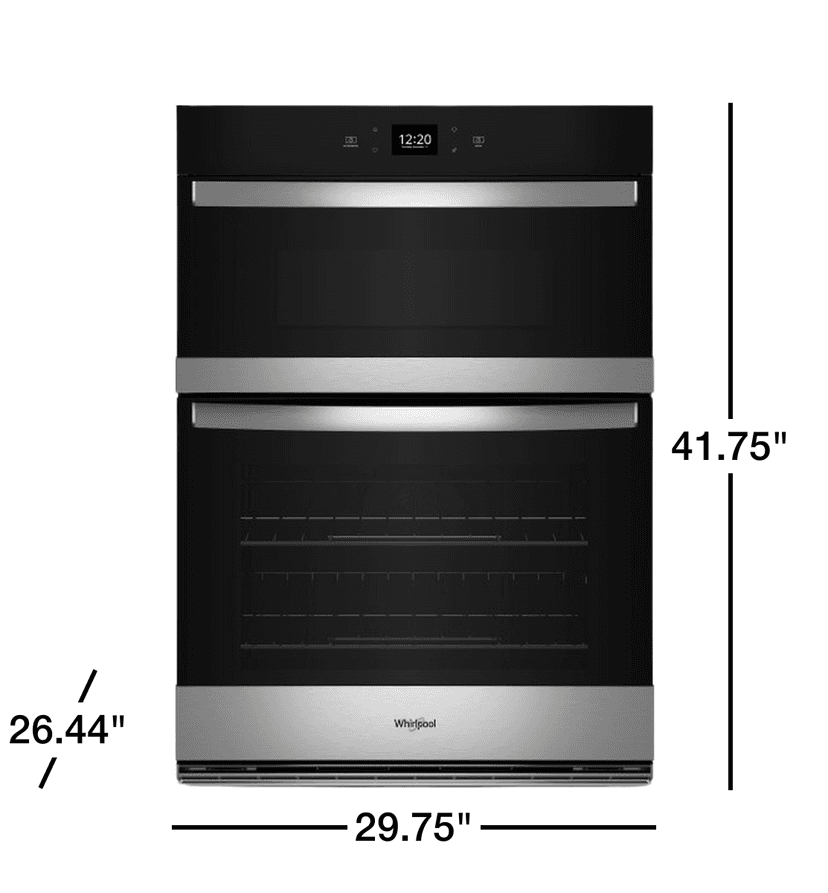

Product Height |
41.75 |
Carton Height |
45 |
Gross Weight |
228 |
Oven Interior Height |
18 |
Carton Width |
35 |
Product Depth |
26.4375 |
Oven Interior Depth |
19 |
Depth With Door Open 90 Degree |
46.188 |
Cutout Depth |
24 |
Cutout Height |
41.313 |
Depth Closed Including Handles |
26.438 |
Carton Depth |
31 |
Cutout Width |
28.5 |
Oven Capacity |
5 |
Oven Interior Width |
25 |
Net Weight |
223 |
Product Width |
29.75 |
Power Cord Included |
No |
Door Type |
Metal & Glass |
Handle Color |
Stainless Steel |
Handle Material |
Metal |
Microwave Door Swing |
Drop Down |
Microwave Interior Depth |
16.5 |
Microwave Interior Height |
8.25 |
Microwave Interior Light |
Halogen |
Microwave Interior Width |
17.625 |
Door Release |
Handle |
Language Conversion |
English/French/Spanish |
Microwave Capacity |
1.4 |
Number of Microwave Racks |
0 |
Sensor Cooking |
Yes - Microwave |
Turntable Diameter Size |
14.125 |
Bake Element Power |
2,800 W/2,427W |
Broiler Element Power |
3600 W/3120 W |
Broiler Location |
Top of Oven |
Convection |
No |
Convection Element Power |
2500 W/2167 W |
Convection Element Type |
Fan |
Convection Functions |
Bake; Broil; Convection Conversion |
Cooking Power |
900 |
Door Broil Position |
Closed |
Door Lock |
Yes |
Hidden Bake Element |
Yes |
Interior Coating |
Porcelain |
Interior Color |
Grey |
Number of Oven Lights |
2 |
Number of Oven Racks |
2 |
Number of Rack Guides |
6 |
Oven Cleaning Type |
Self-Cleaning |
Oven Light Type |
Halogen |
Connectivity |
Amazon Alexa; Android; Google Assistant; iOS |
Smart Appliance |
Yes |
Works With |
App; Remote Access; Voice Controlled; WiFi |
