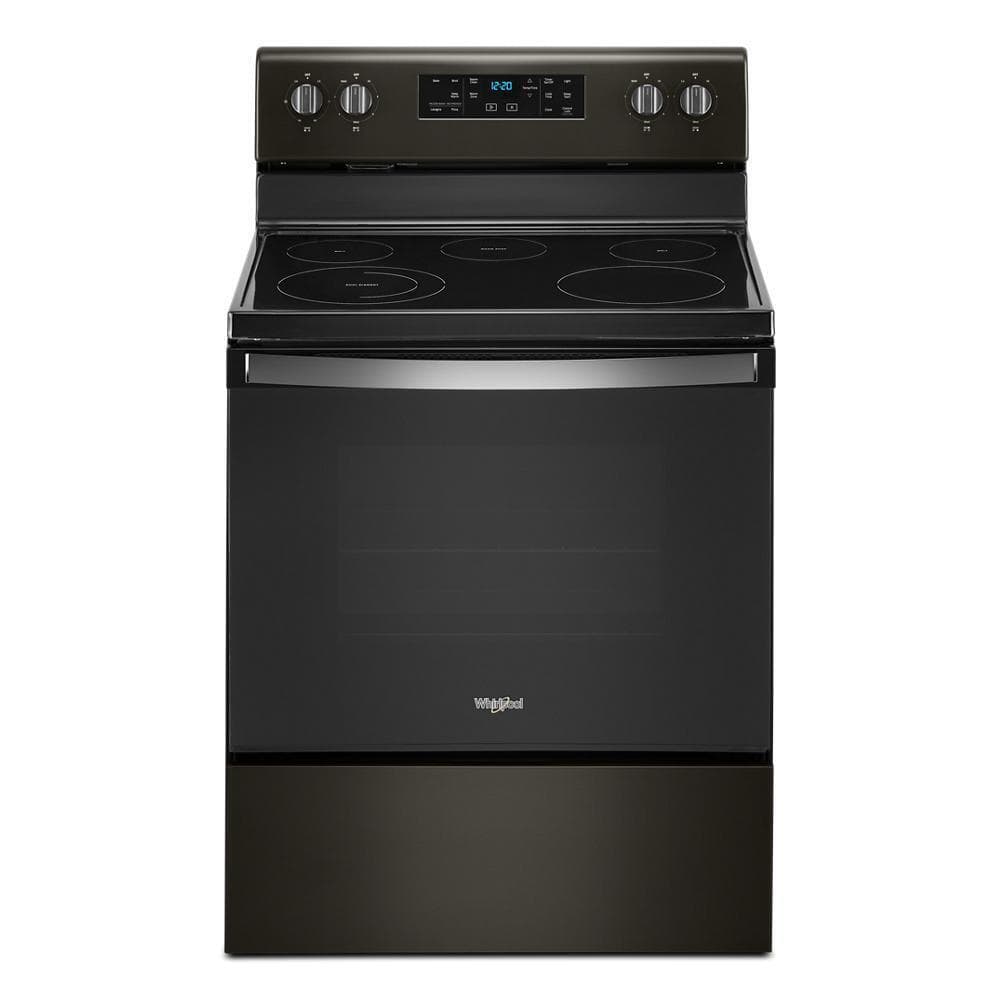

WHIRLPOOL 30'' 5.3 cu. ft. Electric Range Black Stainless

The WHIRLPOOL 5.3 cu. ft. Whirlpool® electric range with Frozen Bake™ technology, model WFE505W0JV, is a versatile and efficient kitchen appliance that makes cooking a breeze. With its spacious oven capacity, innovative Frozen Bake™ technology, and user-friendly features, this electric range is designed to simplify your cooking experience and deliver delicious results.

The 5.3 cu. ft. oven capacity of the WFE505W0JV range provides ample space for all your cooking needs. Whether you're baking a large batch of cookies, roasting a turkey for Thanksgiving, or preparing multiple dishes for a dinner party, this oven offers plenty of room to accommodate it all. The spacious interior ensures even heat distribution for consistent and reliable cooking results.

One of the standout features of the WFE505W0JV range is its Frozen Bake™ technology. With this innovative feature, you can skip the preheating process and start cooking frozen foods immediately. Simply select the Frozen Bake™ mode, enter the cooking time, and let the range take care of the rest. This time-saving technology eliminates the need to wait for the oven to preheat, making it convenient and efficient.

The WFE505W0JV range is equipped with a smooth ceramic glass cooktop, which not only adds a sleek and modern look to your kitchen but also makes cleaning a breeze. The cooktop is resistant to stains and spills, and the smooth surface allows for easy wiping and maintenance. The range also features a variety of burner sizes and power levels to accommodate different cooking needs, from simmering delicate sauces to boiling water for pasta.

Operating the WFE505W0JV range is simple and intuitive. The range features user-friendly electronic controls and a digital display that allows you to easily adjust the cooking settings and monitor the temperature. The control panel is conveniently located at the front of the range, providing easy access and ensuring safe operation.

Cleaning the WFE505W0JV range is hassle-free thanks to its self-clean feature. With the touch of a button, the oven initiates a high-temperature cleaning cycle that eliminates grease, spills, and food residue, saving you time and effort. The oven racks are also designed to withstand the self-clean cycle, so you don't have to remove them separately for cleaning.

In terms of design, the WFE505W0JV range boasts a sleek and modern appearance that complements any kitchen decor. The stainless steel finish adds a touch of elegance and durability to the appliance. The oven door is equipped with a large viewing window, allowing you to monitor the progress of your dishes without opening the oven and disrupting the cooking process.

Overall, the WHIRLPOOL 5.3 cu. ft. Whirlpool® electric range with Frozen Bake™ technology, model WFE505W0JV, offers a combination of convenience, efficiency, and advanced cooking technology. Whether you're a novice cook or an experienced chef, this range provides the tools you need to create delicious meals with ease. Enjoy the spacious oven capacity, time-saving Frozen Bake™ technology, and user-friendly features of the WFE505W0JV range in your kitchen.

• FlexHeat™ Dual Radiant Element

Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.

• Frozen Bake™ technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.

• Warm Zone Element

Keep food warm while you're finishing the rest of the meal using this low-powered center element.

• Keep Warm setting

Keep dishes from getting cold with this setting that delivers low heat to the oven.

• Large Oven Window

Keep an eye on your meal through the large oven window.

• Fingerprint Resistant

Available in black stainless and stainless finishes that are easy to clean and resist fingerprints and smudges.

• Closed Door Broiling

Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.

• Control Lock Mode

Disable the control panel to avoid unintended use

• Steam Clean option

Use the Steam Clean option periodically to clean up after everyday light spills on the bottom of the ovenusing only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed.

• 5.3 cu. ft. Capacity

Easily cook large meals with 5.3 cu. ft. capacity

• Ceramic Glass Cooktop

Wiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.

• Upswept SpillGuard™ Cooktop

Clean up faster with a cooktop that has raised edges to help contain spills.

• An American company for over 100 years

Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

This Whirlpool® electric range with a dual element stove top resists fingerprints and helps you get dinner to the table. Skip preheating for favorites like pizza with Frozen Bake™ technology. This steam cleaning oven also prevents cooked food from getting cold with a Warm Zone on the cooktop and the Keep Warm setting in the oven.

Certifications
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .

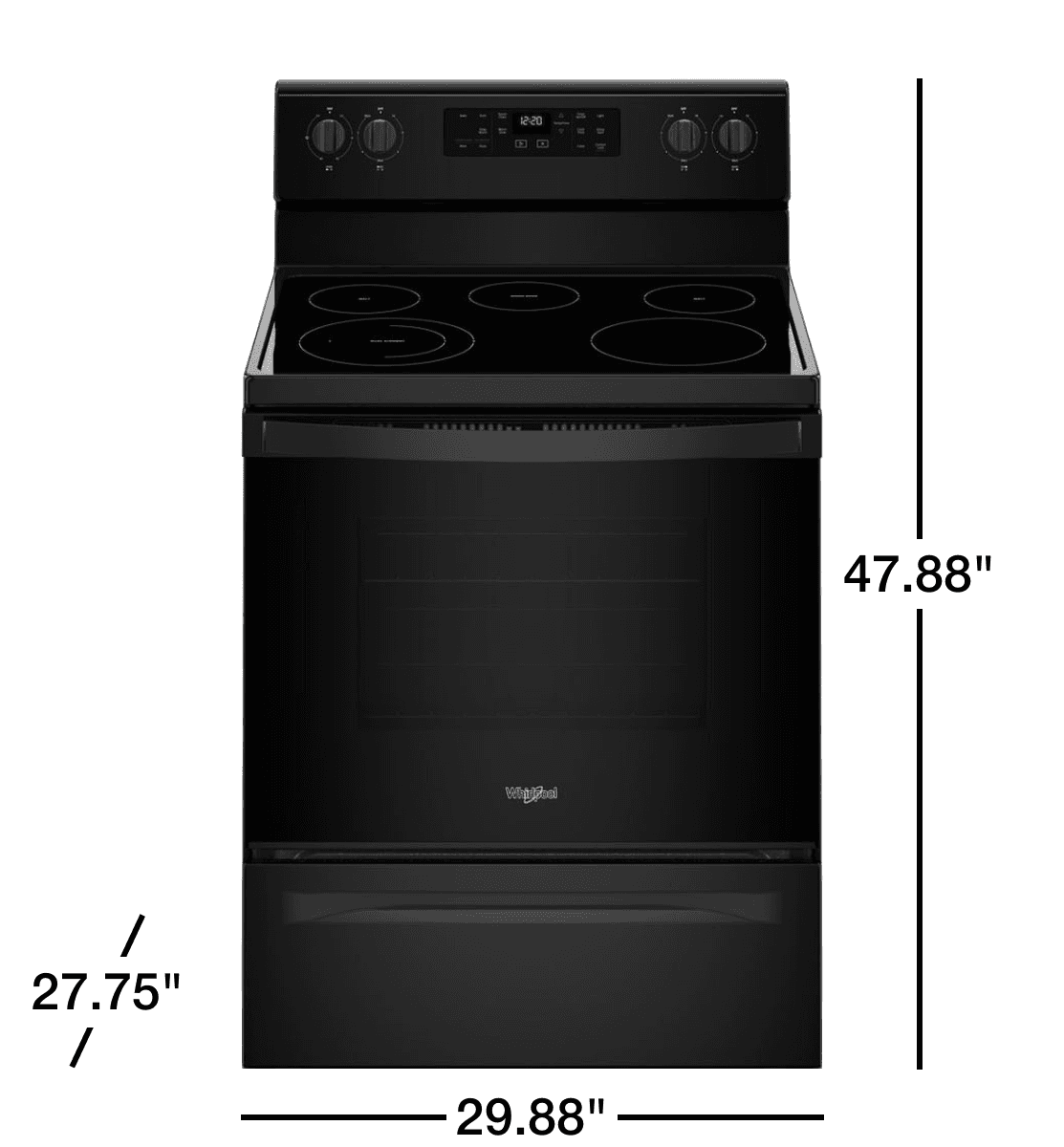

Dimensions
Capacity	5-3/10
Cutout Depth	24.0 in
Cutout Height	36.0 in
Cutout Width	30.0 in
Depth	27-3/4 in
Depth Closed Excluding Handles	25-5/16 in
Depth Closed Including Handles	28.0 in
Depth With Door Open 90 Degree	46-11/16 in
Height	47-7/8 in
Height To Top Of Cabinet	36.0 in
Maximum Height	47-7/8 in
Minimum Height	46-7/8 in
Net Weight	137 lbs
Width	29-7/8 in
Configuration and Overview
Fuel Type	Electric
Range Type	Freestanding
Size	30 in
Oven Details
Automatic Convection Conversion Temperature Adjust	No
Automatic Shut-Off	No
Broiler Location	Top Center
Door Removable	Yes
Drawer Type	Storage Drawer
Hidden Bake Element	No
Interior Color	Black
Oven Control Location	Backguard
Oven Control Type	Electronic Touch
Oven Cooking System	Thermal
Oven Interior Depth	18-1/2 in
Oven Interior Height	18-1/8 in
Oven Interior Width	24-1/2 in
Oven Light Switch Location	Oven Control
Power On Indicator Light	Yes
Appearance
Handle Material	Metal
Features
Power Outage Compatible	No
Cooktop Details
Center Front Element-Burner Size	6""
Cooktop Control Knob Type	Plastic
Cooktop Control Location	Backguard
Cooktop Control Type	Knobs
Cooktop Element Style	Radiant
Cooktop Surface Color	Black
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Left Front Element-Burner Power	3000W
Left Front Element-Burner Size	9""/6""
Left Rear Element-Burner Size	6""
Number of Cooking Element-Burners	5
Right Front Element-Burner Size	9""
Right Front Element-Burner Type	Standard
Right Rear Element-Burner Size	6""
Details
Bake Element Power	2400W
Cooktop Surface Material	Glass
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Steam-Clean
Oven Light Type	Incandescent
Oven Rack Type	Standard (Both)
Electrical
Power Cord Included	No
Watts	8000
Exterior
Handle Type	Reach-Through Handle
Oven Window Size	Extra Large
