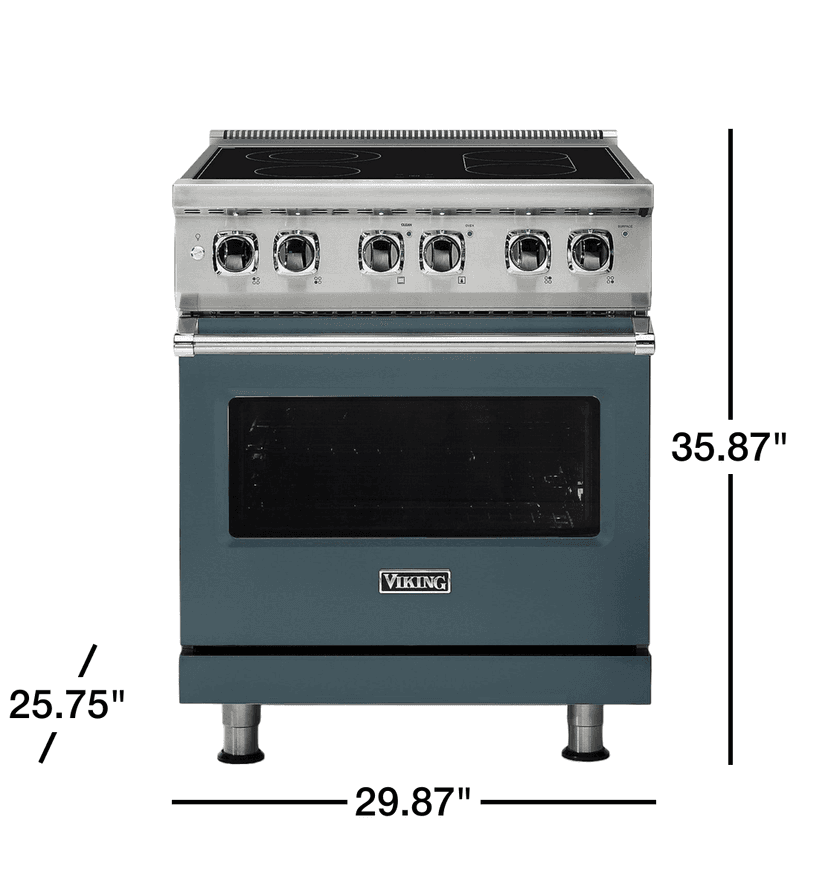

VIKING 30" 5 Series Electric Range - VER5301 Viking 5 Series

• Vari-Speed Dual Flow™ Convection

Maximize airflow and fluffiness with Vari-Speed Dual Flow™ Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.

• QuickCook? Surface Elements

Fast high heat makes cooking a flash in the pan with our QuickCook™ surface elements. Surface elements utilize new ribbon technology elements - elements reaching full power in about three seconds.

• Concealed Bake Element

Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.

• Easy-to-Clean

Spend more time creating and less time cleaning with our easy to clean glass ceramic top and removable knobs.

• Rapid Ready™ Preheat System

Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.

• Extra Large Capacity Oven

Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.

Vari-Speed Dual Flow(TM) Convection

Maximize airflow and fluffiness with Vari-Speed Dual Flow(TM) Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.

QuickCook? Surface Elements

Fast high heat makes cooking a flash in the pan with our QuickCook(TM) surface elements. Surface elements utilize new ribbon technology elements - elements reaching full power in about three seconds.

Concealed Bake Element

Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.

Easy-to-Clean

Spend more time creating and less time cleaning with our easy to clean glass ceramic top and removable knobs.

Rapid Ready(TM) Preheat System

Wait less and cook more with the Rapid Ready(TM) Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.

Extra Large Capacity Oven

Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.

Commercial-Type Cooking Power
QuickCook™ surface elements utilize ribbon technology - elements reach full power in about three seconds
Wide range of surface elements and wattages
(BULL)Right front - 7" 1,800 watt element
(BULL)Right rear - 7" 1,800 watt element
(BULL)800 watt "bridge" element between right front and right rear elements; excellent for use in conjunction with both right elements for griddling with optional accessory
(BULL)Left front - 6.5" 1500 watt element
(BULL)Left rear - dual element - 9" 3,000 watt element/6" 1,400 watt element
(BULL)High infrared transmission for fast surface cooking, regardless of type of cookware used
(BULL)Exclusive! ? one of the largest oven cavity in the industry
4.7 cu. ft. overall
(BULL)4.1 cu. ft. measured to AHAM standards
(BULL)Exclusive! Patented Vari-Speed Dual Flow™ convection system has the largest convection fan in the industry; the 8 1/2" fan works bi-directionally for maximum airflow and excellent cooking results
(BULL)NEW BlackChrome™ Metal Knobs ship standard
(BULL)NEW SoftLit™ LED lights accent the control panel and illuminate knobs
(BULL)NEW Exclusive GentleClose™ Door allows the door to slowly close
(BULL)NEW larger window opening
(BULL)Concealed 10-pass dual bake element provides precise temperature control
(BULL)Large 10 pass Broiler with heat reflector
(BULL)Rapid Ready™ Preheat provides one of the fastest preheat times - so your oven is ready to begin cooking when you are
(BULL) Oven has six porcelain-coated rack positions and comes standard with three oven racks including two TruGlide? full extension racks
(BULL)Three strategically located oven lights provide maximum visibility
(BULL)High performance cooking modes include Bake, Convection Bake, TruConvec™ Convection Cooking, Convection Roast, Hi, Medium, and Low Broil, Convection Broil, Convection Dehydrate, Convection Defrost, and Self-Clean
(BULL)Commercial-style bezels around control panel knobsEasy Operation and Cleanup
Self-cleaning, porcelain oven
(BULL)Strong, wear-resistant glass ceramic surface for excellent cleanability
(BULL)Concealed 10-pass dual bake element makes for easy clean-up of the oven cavityExclusive Color Finishes
Available in all Classic and Contemporary Color Finishes.Included Accessories
Island Trim (shipped standard with 30" range) Optional Accessories
8"H. Backguard ? BG8530SS for 30" Range
(BULL)High Shelf ? HS24530SS for 30" Range
(BULL)Countertop Side Trim - P24CST
(BULL)Countertop Rear Trim - P30CRT
(BULL)Curb Base and Custom Curb Base Front - P30CBF4Model Number
VER5301-4B- 30" wide range with four burners
