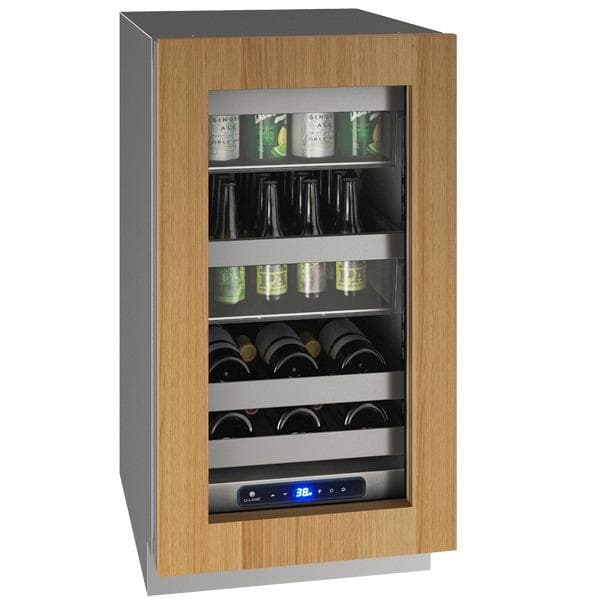

The UHBV518IG01A 18 Inch Undercounter Beverage Center offers efficient and versatile storage for a variety of drinks in a compact design. Ideal for both residential and commercial settings, this unit features a passive cooling system that ensures efficient cooling performance. It accommodates up to 75 cans, 45 bottles, and 10 bottles of wine of any shape, providing ample space to organize beverages conveniently. The interior is equipped with LED lighting, which automatically turns off when the door is closed to conserve energy or can be set to stay illuminated for 3 hours for easy access. This integrated (panel-ready) model does not include a handle and panel.
Highlights
-
Storage Capacity: Holds up to 45 (12 oz) bottles and 10 (750 ml) wine bottles, or up to 75 (12 oz) cans, offering a generous 3.7 cubic foot volume for storing various beverage types.
-
Digital Touch Pad Control: Located on the upper face of the unit, the Digital Touch Pad Control provides intuitive operation and allows users to easily adjust settings.
-
LED Lighting: The black interior features LED lighting that enhances visibility when accessing beverages. The lighting automatically turns off when the door is closed, contributing to energy efficiency. Alternatively, it can be set to remain on for 3 hours as needed.
-
Reversible Door: Designed for flexibility, non-lock and Integrated models come with Field Reversible Doors with a Right-Hand Hinge, facilitating customizable installation options to suit different spaces.
-
Adjustable Storage: Featuring the U-Adjust™ Feature with 19 adjustable positions for storage bins and wine racks, this unit allows customization to accommodate varying bottle sizes and shapes.
-
Built-in or Freestanding Use: Versatile installation options enable this beverage center to be used as a built-in undercounter appliance or as a freestanding unit, adapting to different layout requirements.
-
Adjustable Leveling Legs: Equipped with four adjustable leveling legs, the unit ensures stability on uneven surfaces, facilitating a secure installation in diverse environments.
-
Convection Cooling System: Ensures rapid cooling and maintains a consistent temperature throughout the interior, preserving the quality of stored beverages.
-
Certifications: EnergyStar® Certification is available exclusively with a solid door panel, ensuring energy efficiency and environmental sustainability. The unit is also Star-K Certified for Sabbath Mode compliance, meeting specific religious observance requirements.
-
Passive Cooling System: Operates silently and efficiently within a temperature range of 33°F to 70°F, ideal for maintaining optimal storage conditions for beverages of various types.
- Industry Exclusive: Full-depth lower interior maximizes storage options
- Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
- Convection cooling system provides a quick cool down and consistent temperature
- Stainless steel interior
- Stainless steel cabinet, grille, and accents
- U-Adjust™ Interior: 19 adjustable positions
- Two removable full-extension Slide & Secure™ Bins
- Two removable full-extension wine racks
- Digital touch pad control
- Temperature range: 33(degree)F to 70(degree)F
- Adjustable bright white or blue LED lighting
- Soft close door with articulating hinges
- Volume of 3.7 cu ft holds up to 10 wine bottles (750 ml) and 45 bottles (12 oz) or 75 cans (12 oz)
- Stainless steel handle (7/8" diameter)

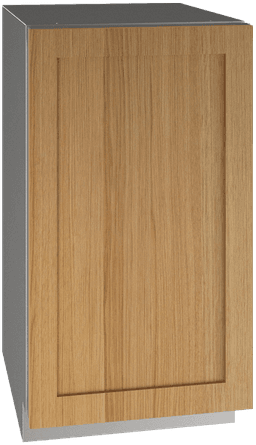

- Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
- Field reversible door is shipped right-hand hinged
- Built-in or freestanding
- Four adjustable leveling legs
A favorite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 18" 5 Class Slide & Secure™ Beverage Center is the ultimate home bar companion. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. Robust and refined, U-Line's 5 Class Collection features an industry-exclusive full-depth lower interior allowing you to maximize storage space, adjustable blue and white LED lighting, and U-Adjust™ 19 position adjustment for full extension wine racks and Slide & Secure™ robust bins to contain and protect. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry.
Amps: Running (115 v) |
1.6 A |
Capacity Bottle |
45 |
Capacity Can |
75 |
Capacity: Total Volume (cu ft) |
3.7 cu ft |
Capacity: Wine Bottle (750 ml) |
10 |
Control Type |
Digital |
Dimensions: Product Depth |
23 7/16" (595mm) |
Dimensions: Product Height |
33 11/16" (856mm) |
Dimensions: Product Width |
17 3/4" (450mm) |
Energy Consumption: Avg. Per Year |
290 kWh |
Refrigerant Type |
R600a |
Sabbath (Star K Certified) |
Yes |
Shipping Depth |
28.63" (727 mm) |
Shipping Height |
36" (914 mm) |
Shipping Weight |
128 lbs (58 kg) |
Shipping Width |
19.75" (502 mm) |
Temperature Range |
33°F to 70°F |
