SUMMIT Shallow Depth Outdoor Built-in All-refrigerator - Stainless Steel/Black

• Approved for use in the outdoors with a stainless steel door for added durability
• Ideal for home wet bars, island kitchens, and other applications with limited footprint space
• Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
• ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
• Stainless steel door affords added durability
• Reduced user maintenance with auto defrost system
• User-reversible door swing makes it easy to adjust to your setting as needed
• Keyed lock offers added security, with two keys included
• Stainless steel handle adds an attractive touch
• Three glass shelves with brake system ensures safe, optimal storage
• Two chrome racks accommodate a variety of sizes for optimal interior storage
• Automatically illuminates when the door is open for an attractive and energy efficient view
• Allows for easy cleaning and organization within the interior of the unit
• Dial thermostat with seven temperature settings offers easy temperature management
• Versatile design allows for residential use
• Space saving design with easier cleanability and added protection from the elements
• Allows the unit to be used freestanding
• Provides flexibility in unit placement without needing added depth
• Environmentally friendly design does not contain ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit brings energy efficiency to the outdoors with the SPR196OS, an ENERGY STAR certified all-refrigerator approved for outdoor use. The SPR196OS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a jet black cabinet with a sealed back for safe installation outdoors and protection from the elements. The user-reversible stainless steel door adds durability and elegance to any outdoor setting and the stainless steel pro-style handle completes the look. A factory-installed lock keeps contents secure, while a right-angle plug and integrated hinge provide added flexibility in placing the unit. Two leveling legs keep the unit level on uneven surfaces. Inside, the SPR196OS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management. The SPR196OS is ENERGY STAR certified and designed for built-in or freestanding outdoor use. For a similar unit with a glass door, see the SPR489OS.

Overview

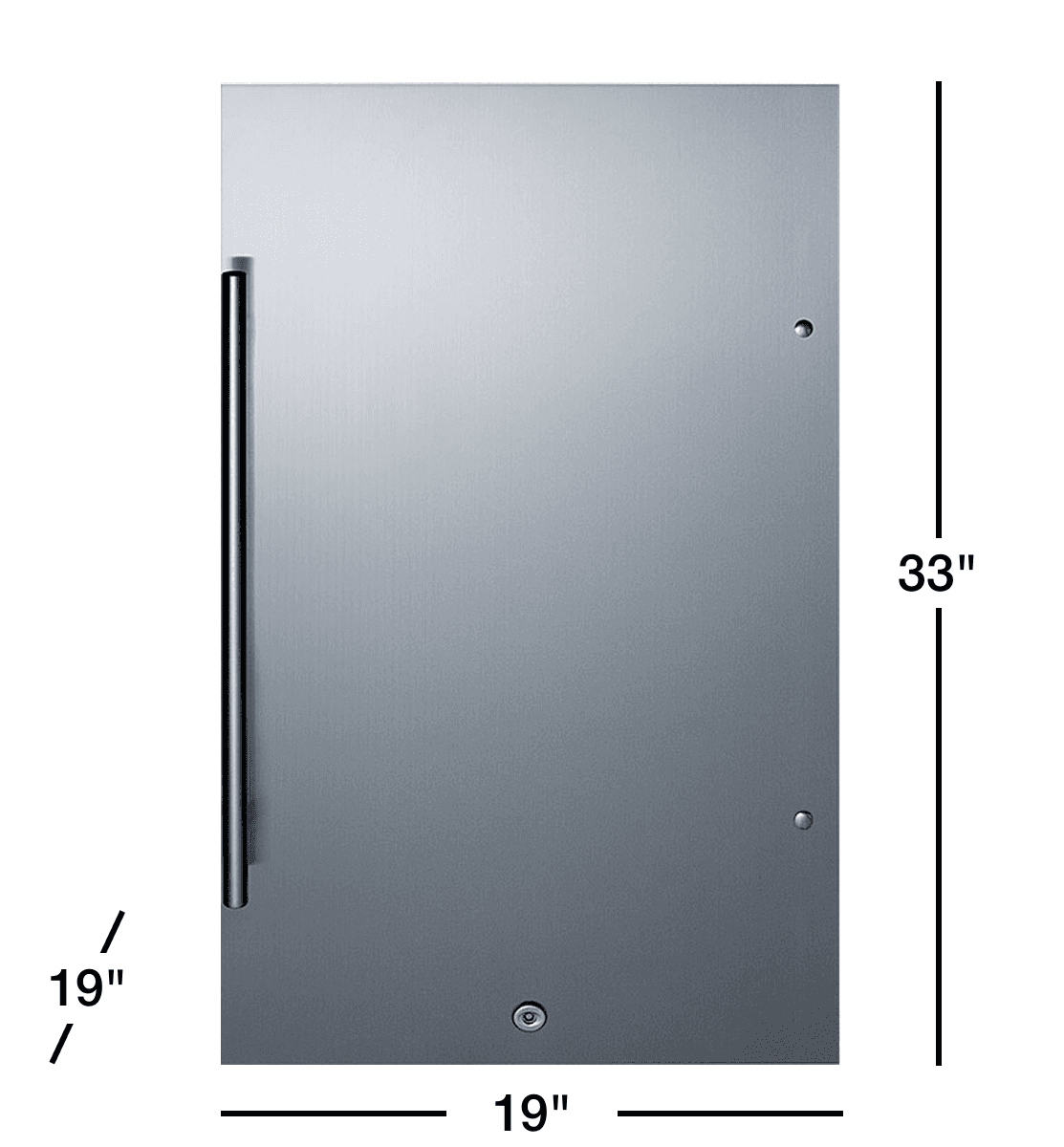

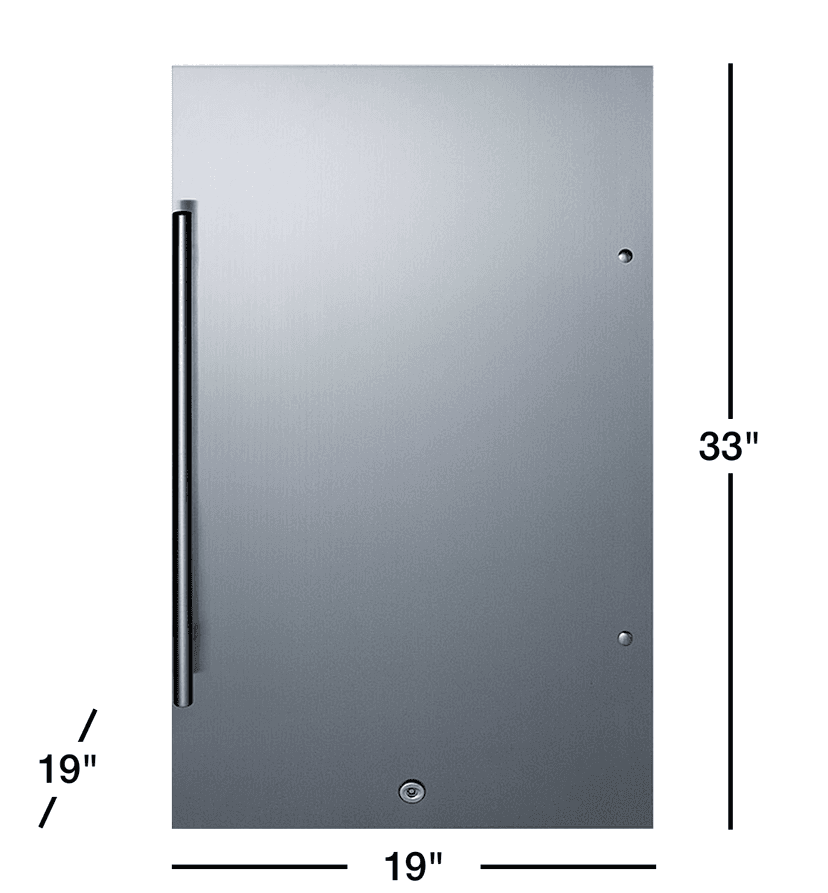

Height of Cabinet	33.0" (84 cm)
Width	19.0" (48 cm)
Depth	17.25" (44 cm)
Depth with Handle	19.0" (48 cm)
Depth with door at 90°	35.0" (89 cm)
Capacity	3.13 cu.ft. (89 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	259.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	70.0 lbs. (32 kg)
Shipping Weight	75.0 lbs. (34 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101065441
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.88oz.
High Side PSI	320.0
Low Side PSI	120.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34 to 50 F
Sound Level	33.4 dB
Dimensions
Interior Height	29.0" (74 cm)
Interior Width	16.0" (41 cm)
Interior Depth	12.75" (32 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	16.0" (41 cm)
Compressor Step Depth	6.25" (16 cm)
