Summit's BIM68OSGDRIF series icemakers offer a dependable and stylish solution for maintaining a continuous supply of clear ice in virtually any indoor or outdoor environment. This 15-inch wide icemaker features a durable 304-grade stainless steel exterior designed to withstand outdoor conditions. The door includes a powerful magnetic gasket for superior insulation and an integrated stainless steel frame that accepts overlay panels, allowing customization to blend seamlessly with your cabinetry (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design enables built-in installation under counters, while the fully finished stainless steel cabinet also supports freestanding use, with a sealed back for added protection and easier maintenance. This model operates using a gravity drain system.
Highlights
-
Outdoor Clear Icemaker: This 15-inch wide undercounter icemaker can produce up to 62 lbs. of clear gourmet ice cubes in a 24-hour cycle, with 24 cubes made every 30 minutes.
-
Commercially approved: ETL-S is listed to NSF-12 commercial standards, ensuring it meets the rigorous demands of food service environments.
-
Weatherproof design: Constructed with durable materials for safe installation and long-lasting performance in outdoor settings.
-
62 lb. production capacity: Capable of producing up to 62 lbs. of ice per day, providing ample ice supply for various uses.
-
Built-in capable: The front-breathing design allows for efficient space utilization by installing the icemaker under the counter.
-
Panel-ready door: Features an integrated door frame that accepts overlay panels for a customized look, with panel dimensions of 29 9/16" H x 14 7/8" W at 3/4" thick.
-
Stainless steel-wrapped exterior: Both the door and cabinet are fully wrapped in 304-grade stainless steel, ensuring a sleek and durable finish.
-
Clear ice cube production: Produces gourmet-style rounded dice ice cubes, perfect for beverages and culinary applications.
-
Frost-free operation: Designed for minimal maintenance with its no-frost system.
-
Gravity drain setup: Requires connection to a gravity drain for efficient water removal during ice production.
-
Factory-reversible door: The unit ships with a right-hand door swing (RHD) but can be ordered with a left-hand door swing (LHD); not field-reversible.
-
Standard water hookup: Operates with a standard 1/4” OD water supply line, simplifying the installation process.
-
Sealed back: Features a space-saving design with a sealed back for easier cleaning and enhanced protection.
-
Fully finished cabinet: Allows the unit to be used as a freestanding appliance, offering versatility in placement.
-
100% CFC free: Environmentally friendly design with no ozone-damaging chemicals, promoting eco-conscious operation.
- 15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
- ETL-S listed to NSF-12 commercial standards for use in foodservice settings
- Durable construction for safe installation in outdoor kitchens
- Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
- Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance
- Gourmet style rounded dice-style ice cubes
- No-frost operation for minimum user maintenance
- Requires connection to gravity drain
- Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
- Operates with a standard 1/4 OD water supply line
- Space-saving design with easier cleanability
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location. Sized at 15" wide, the BIM68OSGDRIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system. The BIM68OSGDRIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSGDRIF is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. For this unit with an internal pump, see the BIM68OSPUMPIF. NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.

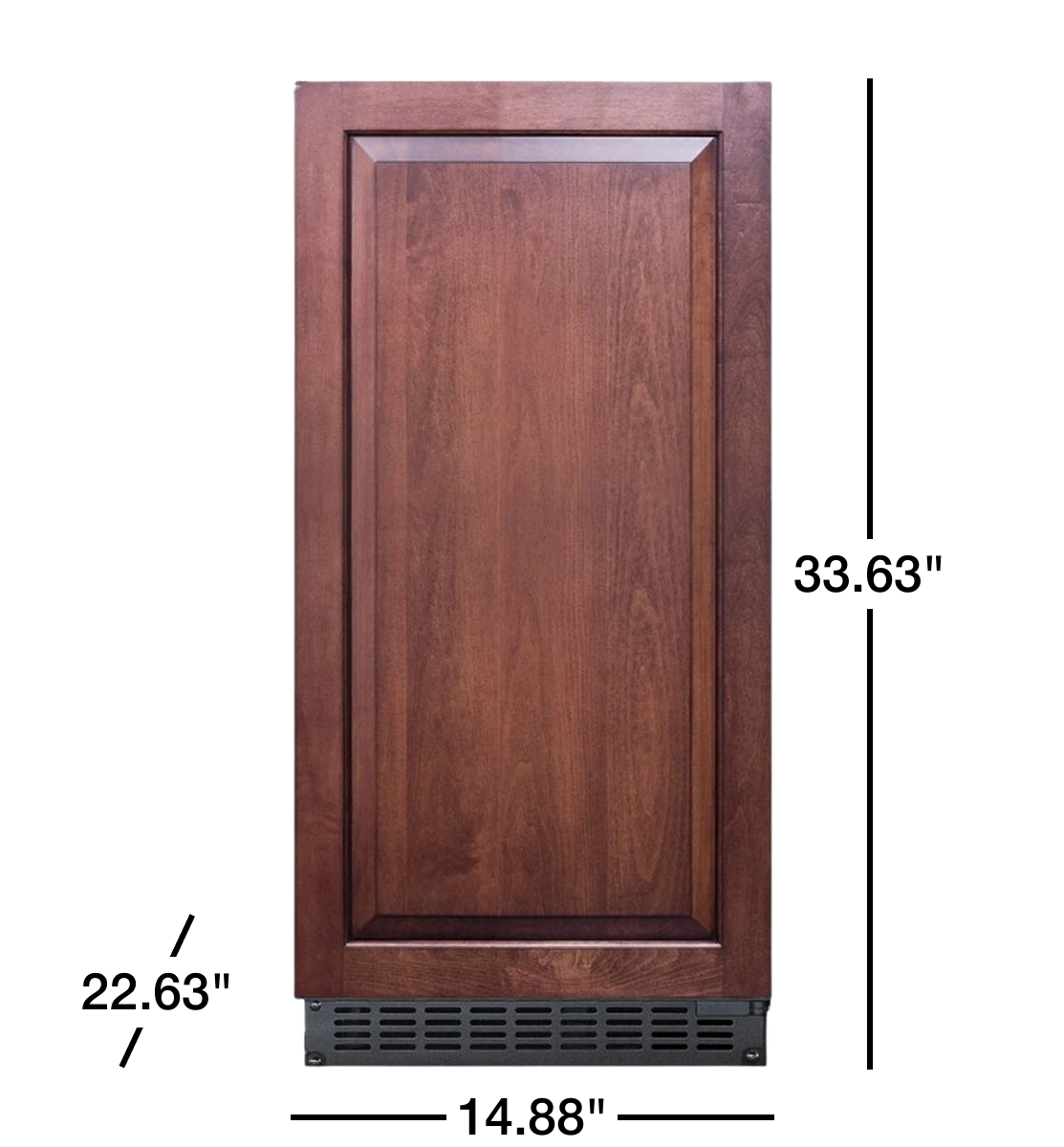

Height of Cabinet |
33.5" (85 cm) |
Height to Hinge Cap |
33.63" (85 cm) |
Width |
14.88" (38 cm) |
Depth |
22.63" (57 cm) |
Depth with door at 90° |
37.25" (95 cm) |
Capacity |
0.98 cu.ft. (28 L) |
Defrost Type |
Frost-Free |
Door |
Panel-Ready |
Cabinet |
Stainless Steel |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Amps |
4.0 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
105.0 lbs. (48 kg) |
Shipping Weight |
116.0 lbs. (53 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101061801 |
Door Swing |
RHD |
Reversible |
Factory Reversible |
Daily Ice Production |
62.0 lbs. (28 kg) |
Ice Storage Capacity |
26.0 lbs. (12 kg) |
Size of Cube |
1 1/4" H x 1 1/8" W x 1 1/8" D |
Number of Ice Cube Sizes |
1 |
Fan Type |
Exterior |
Refrigerant Type |
R134a |
Refrigerant Amount |
7.4 oz. |
High Side PSI |
210.0 |
Low Side PSI |
102.0 |
Interior Height |
12.75" (32 cm) |
Interior Width |
12.75" (32 cm) |
Interior Depth |
9.25" (23 cm) |
Level Legs |
4 |
