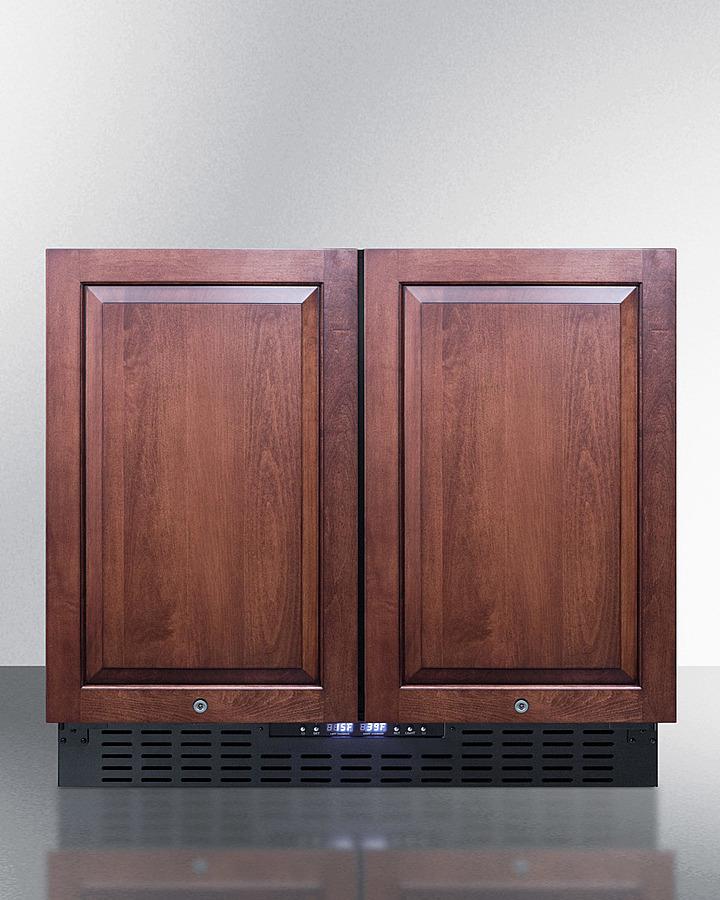

SUMMIT 36" Wide Built-in Refrigerator-freezer (panels Not Included)

SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. The FFRF36IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36IF features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. With its innovative all-in-one design, user-friendly features, and frost-free operation, the FFRF36IF is a great choice for smaller kitchens looking to maximize storage space.

• ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
• Front-breathing system allows the unit to be used built-in
• Separate refrigerator and freezer sections with single compressor operation
• Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
• No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
• Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
• Interior LED lighting in the primary refrigerator sections offers an attractive and energy efficient presentation
• Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
• Freezer compartment temperature can be set to serve as a second refrigerator as needed
• Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Space-saving design with no exposed coils in the rear offers easy cleanability
• In the event of power loss, the unit will retain its last temperature settings upon power recovery
• Allows the unit to be used freestanding
• Two leveling legs ensure the unit is even when placed on uneven surfaces
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• Environmentally friendly design without ozone-damaging chemicals

SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. The FFRF36IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36IF features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. With its innovative all-in-one design, user-friendly features, and frost-free operation, the FFRF36IF is a great choice for smaller kitchens looking to maximize storage space.

Overview

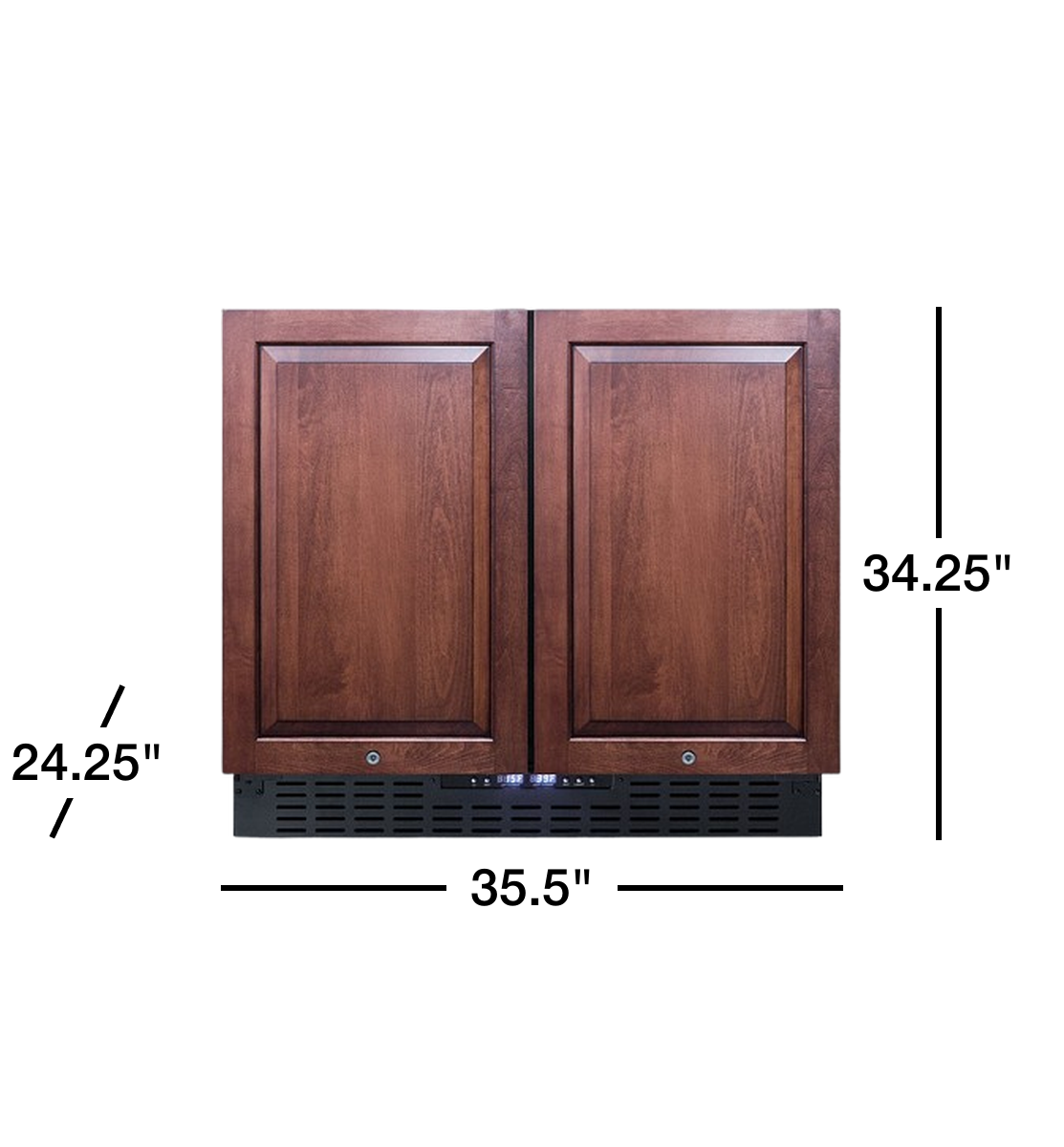

Height of Cabinet	34.25" (87 cm)
Width	35.5" (90 cm)
Depth	24.25" (62 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	504.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Shipping Weight	155.5 lbs. (71 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067704
Refrigerator-Freezer
Door Swing	French
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	23.5" (60 cm)
Refrigerator - Interior Width	12.75" (32 cm)
Refrigerator - Interior Depth	16.75" (43 cm)
Refrigerator - Capacity	2.9 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Temperature Range	36°F to 46°F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	1.59 oz.
Freezer - Interior Height	23.5" (60 cm)
Freezer - Interior Width	12.75" (32 cm)
Freezer - Interior Depth	16.75" (43 cm)
Freezer - Capacity	2.9 cu.ft
Freezer - Shelf Type	Chrome
Freezer - Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.59 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	2
Freezer - Temperature Range	-22°F to 46°F
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.25" (11 cm)
