SUMMIT 36" Wide 208-240v 5-burner Radiant Cooktop with Push-to-turn knobs in Black

• Designed to fit common 34 3/4" x 19 5/8" counter cutouts
• Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
• Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
• Left rear 2200W element is 9" in diameter to handle larger cooking vessels
• Front left and front right burners are 6.5" in diameter to meet most cooking needs
• Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
• Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
• Controls require a gentle push to help prevent cooking accidents
• Indicator shows when the surface is still hot to touch
• Upfront controls meet ADA guidelines for easier accessibilty
• Requires professional hardwired installation (cord not included)

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters. The CR5B36MB is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The knob controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch. With its attractive design and smartly designed burner configuration, the CR5B36MB is the perfect choices for convenient cooking. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes and with touch controls. Browse the full Summit lineup for more.

Overview

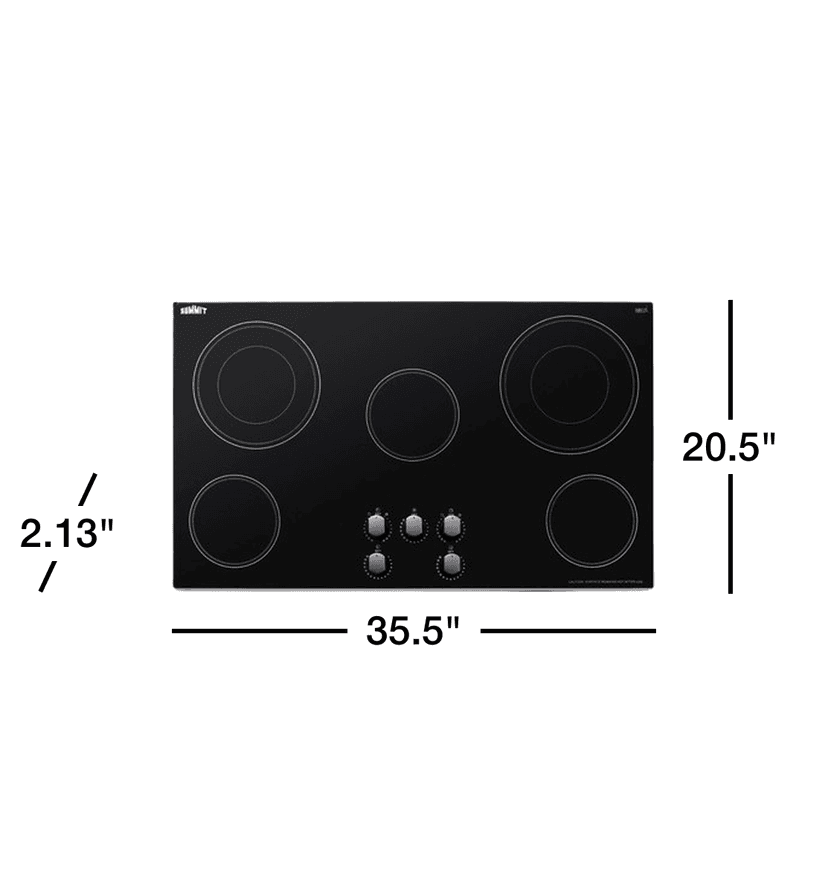

Height of Cabinet	2.13" (5 cm)
Width	35.5" (90 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	30.0
Voltage/Frequency	240 V AC/60 Hz
Weight	36.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
UPC	761101077567
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	5
Controls	Dial
Countertop Cutout Height	3.2" (8 cm)
Countertop Cutout Width	34.75" (88 cm)
Countertop Cutout Depth	19.63" (50 cm)
Element #1 Size	6.5" (17 cm)
Element #1 Wattage	1200.0
Element #2 Size	9.0" (23 cm)
Element #2 Wattage	2200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	100.0
Element #4 Size	9.75" (25 cm)
Element #4 Wattage	3000.0
Element #5 Size	6.5" (17 cm)
Element #5 Wattage	1200.0
Power Cord Included	No
