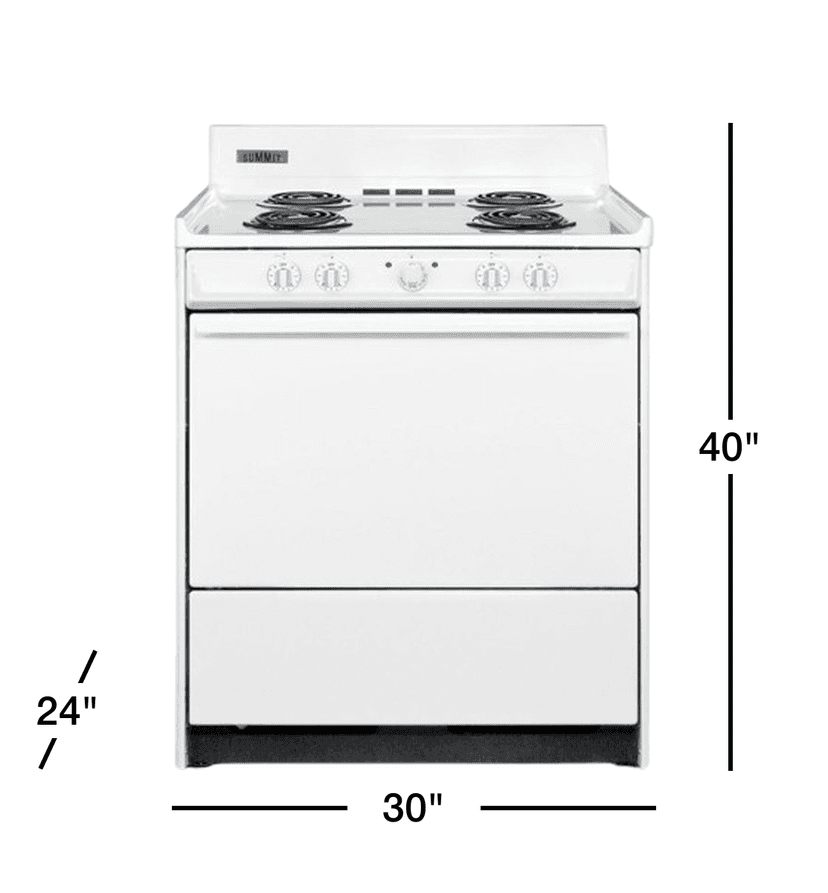

The Summit WEM210 is a 220V electric range designed for apartment-sized kitchens. This American-made unit boasts a standard 30-inch width and a shallower 24-inch depth, making it ideal for L-shaped and galley kitchens with limited space.
Highlights
-
Space-Saving Design: The WEM210's compact size allows for easy integration into smaller kitchens without compromising functionality.
-
Durable Construction: Built and designed in the USA, the WEM210 features a solid porcelain and steel construction for long-lasting durability.
-
Four Coil Elements: The cooktop features a combination of three standard 6-inch and one large 8-inch coil elements, offering versatility for various cooking needs. The safety burners with lower wattages ensure steady heating without overheating.
-
Convenient Broiling: The waist-high broiler located inside the oven eliminates the need to transfer food between compartments during cooking.
-
Adjustable Oven Racks: Two adjustable oven racks with safety brakes allow you to customize the cooking space for different dishes.
-
Easy Cleaning Features: The removable oven door and range top facilitate thorough cleaning, while the chrome drip pans under each coil element collect spills and splatters for easy removal.
-
Functional Storage: The drop-down storage compartment beneath the oven provides a designated space for pots and pans, helping to maximize space in your kitchen.
-
User-Friendly Controls: All knobs are conveniently located at the front of the range for easy access and control. The push-to-turn knobs on the cooktop offer an extra layer of safety for accidental activation. Indicator lights on the control panel display the operational status of the oven and burners.
-
Safety and Accessibility: The included anti-tip bracket enhances stability, while the upfront controls and easy-to-operate knobs comply with ADA guidelines for accessibility.
-
Additional Features: The WEM210 comes with a two-piece porcelain broiler tray with a grease well for efficient broiling, and is compatible with standard 40 amp 3 or 4-wire range cords (not included).
- Designed and constructed domestically
- Standard size ideal for most kitchens
- Shallower fit is ideal for L-shaped and galley kitchens
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each coil element includes a removable chrome pan for easier cleaning
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Smart design limits the depth and protects adjacent cabinets
- Solid construction built to hold up to everyday use
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WEM210 is an apartment-sized 220V electric range sized at a standard 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM210 comes in a classic white finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.
Height of Cabinet |
40.0" (102 cm) |
Width |
30.0" (76 cm) |
Depth |
24.0" (61 cm) |
Door |
White |
Cabinet |
White |
US Electrical Safety |
CSA |
Voltage/Frequency |
220 V AC/60 Hz |
Weight |
170.0 lbs. (77 kg) |
Parts & Labor Warranty |
1 Year |
UPC |
761101003665 |
Oven Capacity |
3.7 cu.ft. (105 L) |
Cooktop Surface |
Porcelain |
Element Type |
Coils |
Number of Elements |
4 |
Element #1 Size |
6.0" (15 cm) |
Element #1 Wattage |
675.0 |
Element #2 Size |
6.0" (15 cm) |
Element #2 Wattage |
675.0 |
Element #3 Size |
6.0" (15 cm) |
Element #3 Wattage |
675.0 |
Element #4 Size |
8.0" (20 cm) |
Element #4 Wattage |
950.0 |
Burner Controls |
Dial |
Oven Controls |
Dial |
Backguard |
Yes |
Cleaning Type |
Manual |
Oven Interior Height |
14.0" (36 cm) |
Oven Interior Width |
24.0" (61 cm) |
Oven Interior Depth |
19.0" (48 cm) |
Storage Compartment |
Yes |
Broiler Location |
Inside Oven |
Oven Door |
White |
