SUMMIT 30 Inch Freestanding Electric Range with 4 Coil Elements, 3.7 cu. ft. Oven Capacity, Storage Compartment, Oven Window, Adjustable Oven Racks, Chrome Drip Pans

• 30" wide 220V electric range with coil elements and a full-sized oven
• Designed and constructed domestically
• Standard size ideal for most kitchens
• Shallower fit is ideal for L-shaped and galley kitchens
• Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
• Curved handles in brushed stainless steel offer an easier grip in attractive style
• Three standard 6" 1500W and one large 8" 2400W element
• Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
• Each coil element includes a removable chrome pan for easier cleaning
• Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
• Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
• Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
• Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
• 8" high backguard helps to protect your walls from spills and splashes
• Backguard includes time readout
• All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
• Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
• Control panel includes an 'on' light for the oven and burners for added safety when using the range
• Smart design limits the depth and protects adjacent cabinets
• Solid construction built to hold up to everyday use
• Allows for easier cleaning as needed
• Two-piece porcelain broiler tray with grease well
• Included for user installation to help prevent tipping
• Compatible with standard 40 amp 3 or 4-wire range cords
• Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM230BKWY is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.

Overview

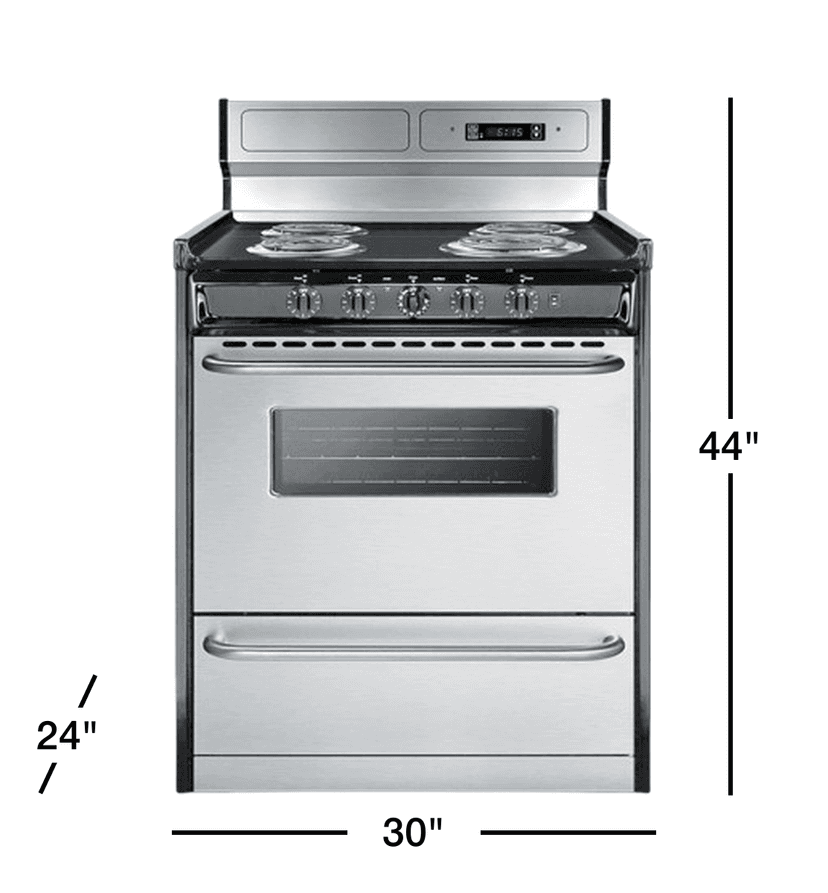

Height of Cabinet	44.0" (112 cm)
Width	30.0" (76 cm)
Depth	24.0" (61 cm)
Door	Stainless Steel
Cabinet	Black
Voltage/Frequency	220 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Parts & Labor Warranty	1 Year
UPC	761101012902
Electric Range
Oven Capacity	3.7 cu.ft. (105 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1500.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1500.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1500.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	2400.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Backguard	Yes
Backguard Display	Yes
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	24.0" (61 cm)
Oven Interior Depth	19.0" (48 cm)
