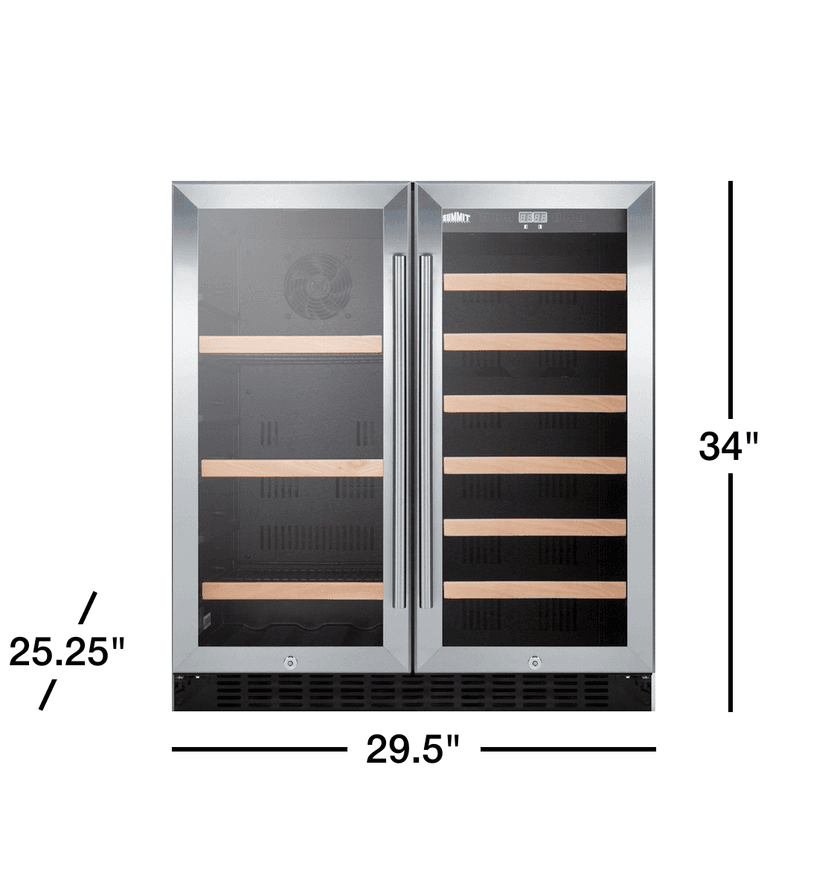

SUMMIT 30" Wide Built-in Wine/Beverage Center with LED Lighting - Stainless Steel

Elevate your beverage storage experience with the SWBV3071, a 30" wide wine and craft beer cooler designed by SUMMIT to meet the highest standards of quality, convenience, and style. Whether for built-in installation under counters or freestanding use, this unit combines versatility with elegant aesthetics to enhance any home setting.

Highlights

• Commercial Design: Built to meet UL-471 commercial standards, ensuring top-notch performance and reliability.

• Built-in Capable: Maximize space utilization by installing the unit under the counter, optimizing the layout of your kitchen or entertainment area.

• Dual Zone Design: With two independent zones, store red and white wine or craft beer at their ideal temperatures, preserving their distinct flavors and qualities.

• Digital Controls: Easily manage the temperature of each section using the intuitive interior digital thermostat, with temperature readout available in Celsius or Fahrenheit.

• Generous Storage Capacity: Store up to 33 standard Bordeaux-style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section, providing ample space for your beverage collection.

• Recessed LED Lighting: Enjoy an elegant and energy-efficient display of your stored items under gentle white LED lighting, creating an attractive ambiance in your home.

• Adjustable Shelves: Customize your storage configuration with removable wooden shelves for proper bottle storage in the wine section and adjustable black wire shelves with wooden trim in the craft beer section.

• Slotted Floors: Specially designed slotted floors allow for safe storage of larger champagne or Burgundy-style bottles on their sides.

• Professional Handles: Sleek stainless steel handles add a touch of sophistication to the unit, complementing its overall aesthetic.

• Glass Doors with French Door Swing: The unique French door swing design, coupled with stainless steel door trim, offers a modern and stylish look while providing easy access to your beverages.

• Factory Installed Locks: Keyed locks on both zones offer separate security for the contents of each section, ensuring peace of mind.

• Automatic Defrost: Benefit from reduced maintenance with automatic defrost functionality, keeping the interior clean and frost-free.

• Fan-Forced Cooling: Internal fans ensure consistent temperature distribution from top to bottom in both zones, preserving the quality of your beverages.

• Sabbath Mode: Disable digital displays, lights, and alarms for religious observance, providing added flexibility.

• High-Temperature Alarm: An audible alarm alerts you if the interior temperature rises above the recommended range, safeguarding your beverages.

• Open Door Alarm: Alarm sounds if either door is left open for over 60 seconds, preventing energy waste and temperature fluctuations.

• Temperature Memory Function: Retains last temperature settings in the event of power loss, ensuring continuity.

• Sealed Back: Space-saving design with no exposed coils in the rear offers easy cleanability and maintenance.

• Fully Finished Cabinet: Allows freestanding use, providing flexibility in placement within your home.

• Environmentally Friendly: With 100% CFC-free and CARB-compliant construction, this cooler prioritizes environmental sustainability without compromising performance.

• Meets UL-471 commercial standards
• Make the best use of space by installing this unit under the counter
• Two independent zones allow you to store both red and white wine or craft beer at the proper conditions
• Interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit
• Store up to 33 standard Bordeaux style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy style wine or champagne bottles, you can remove every other wine shelf
• Gentle and energy efficient LED lighting in an attractive white hue offers an elegant view of stored items
• Red wine section includes six removable wooden shelves for proper bottle storage
• Craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section
• Floor is specially designed with slots to allow you to store larger champagne or Burgundy style bottles safely on their sides
• Sleek stainless steel handles add an elegant touch to any setting
• French door swing offers a modern look, with stainless steel door trim for an added accent
• Keyed locks on both zones offer separate security for interior contents
• Reduced user maintenance with automatic defrost
• Internal fans ensure both interiors have a consistent temperature from top to bottom
• Setting allows you to disable the digital displays, lights, and alarms for religious observance.
• Audible alarm sounds if the interior temperature rises above the recommended range
• Alarm will sound if either door is left open for over 60 seconds
• In the event of power loss, the unit will retain its last temperature settings upon power recovery
• Space-saving design with no exposed coils in the rear offers easy cleanability
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Allows the unit to be used freestanding
• Environmentally friendly design without ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWBV3071 is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Front locks offer keyed security for both compartments. The sealed back design ensures easier cleanability. Two separate zones feature independent digital thermostats, allowing you to store craft beer or white wine in the left side while preserving your red wine in the right. The left beverage compartment includes three slide-out black wire shelves with wooden trim to match the six wooden shelves included in the right. Both sections feature a slotted floor to hold additional bottles. The digital control panel features an LED temperature readout in Celsius or Fahrenheit. Recessed LED lighting in a white hue offers an attractive and efficient presentation. With its attractive style and user-friendly features, the SWBV3071 is a great addition to any home looking to bring versatile beverage storage under the counter.

Overview
Height of Cabinet	34.0" (86 cm)
Width	29.5" (75 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	37.0" (94 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	132.0 lbs. (60 kg)
Shipping Weight	176.0 lbs. (80 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101050423
Wine Cellar
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Wire and Wood
Shelf Qty	9
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	26.38" (67 cm)
Interior Width 1	12.0" (30 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	3.0" (8 cm)
Compressor Step Width	26.75" (68 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Temperature Range	Left side: 36 to 43 F; Right side: 41 to 72 F
Interior Height 2	24.75" (63 cm)
Interior Width 2	12.0" (30 cm)
Interior Depth 2	17.5" (44 cm)
Sabbath Mode	Yes
