SUMMIT's FFRF3075WIF brings quality and value to the industry’s largest collection of built-in refrigeration. Measuring 30" wide, this all-in-one side-by-side refrigerator-freezer features a front-breathing design for built-in installation under counters, as well as a fully finished white cabinet for freestanding use. The French swing doors come with an integrated stainless steel frame, allowing users to install custom overlay panels for a tailored look. The sealed-back design ensures easier cleanup and added space savings.
Highlights
-
All-in-One Design: Separate refrigerator and freezer sections operate with a single compressor for efficient performance.
-
Built-In Capable: The front-breathing system allows for built-in installation under counters.
-
Panel-Ready Doors: The stainless steel door frame accepts full overlay panels, letting you customize the look to match your cabinetry (panel dimensions: 30" H x 14 5/8" W x 3/4" thick; maximum weight: 10 lbs.).
-
Frost-Free Operation: No-frost operation reduces maintenance in both the refrigerator and freezer compartments.
-
Digital Thermostat: The refrigerator section features a digital control panel for managing temperatures, with a readout available in Celsius or Fahrenheit.
-
LED Lighting: Interior LED lighting in both sections offers attractive and energy-efficient illumination.
-
Sabbath Mode: This setting disables digital displays, lights, and alarms for religious observance.
-
Adjustable Shelves: Spill-proof glass shelves in the refrigerator and three adjustable wire shelves in the freezer ensure easy cleaning and proper cold air circulation.
-
Door Shelves: Two removable door racks provide additional storage as needed.
-
Open Door Alarm: An alarm sounds if either door is left open for over 60 seconds.
-
High-Temperature Alarm: An audible alarm sounds if the interior temperature rises above the recommended range.
-
Slotted Floors: Specially designed floors allow bottles to be stored safely on their sides.
-
Internal Fan: Fan-forced cooling in the refrigerator compartment ensures even cooling from top to bottom.
-
Sealed Back: The space-saving design with no exposed coils offers easy cleanability.
-
Right Angle Plug: This design allows the unit to be plugged in flush against the wall socket without adding extra depth.
-
Temperature Memory Function: Retains the last temperature settings upon power recovery in case of power loss.
-
Fully Finished White Cabinet: Suitable for freestanding use with a clean, finished look.
-
100% CFC Free: Environmentally friendly design without ozone-damaging chemicals.
-
CARB Compliant: Uses an environmentally friendly hydrocarbon-based refrigerant that meets current CARB regulations for a greener footprint.
- Separate refrigerator and freezer sections with single compressor operation
- Front-breathing system allows the unit to be used built-in
- Integrated stainless steel door frame on each door accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 30" H x 14 5/8" W at 3/4" thick; maximum weight: 10 lbs.)
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
- Interior LED lighting in both sections offers an attractive and energy efficient presentation
- Setting allows you to disable the digital displays, lights, and alarms for religious observance
- Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
- Two removable door racks provide additional storage as needed
- Alarm will sound if either door is left open for over 60 seconds
- Audible alarm sounds if the interior temperature rises above the recommended range
- Floor is specially designed with slots to allow you to store bottles safely on their sides
- Fan-forced cooling ensures the compartment is evenly cooled from top to bottom
- Space-saving design with no exposed coils in the rear offers easy cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. Sized at 30" wide, the FFRF3075WIF is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished white cabinet also enables freestanding use. The French swing doors feature an integrated stainless steel frame that lets users install their own overlay panels for a custom look (panel size: 30" H x 14 5/8" W). Users install their own handles. The sealed back ensures easier cleanup with added space savings. Inside, the FFRF3075WIF features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance. With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3075WIF is a great choice for smaller kitchens looking to maximize storage space under the counter.

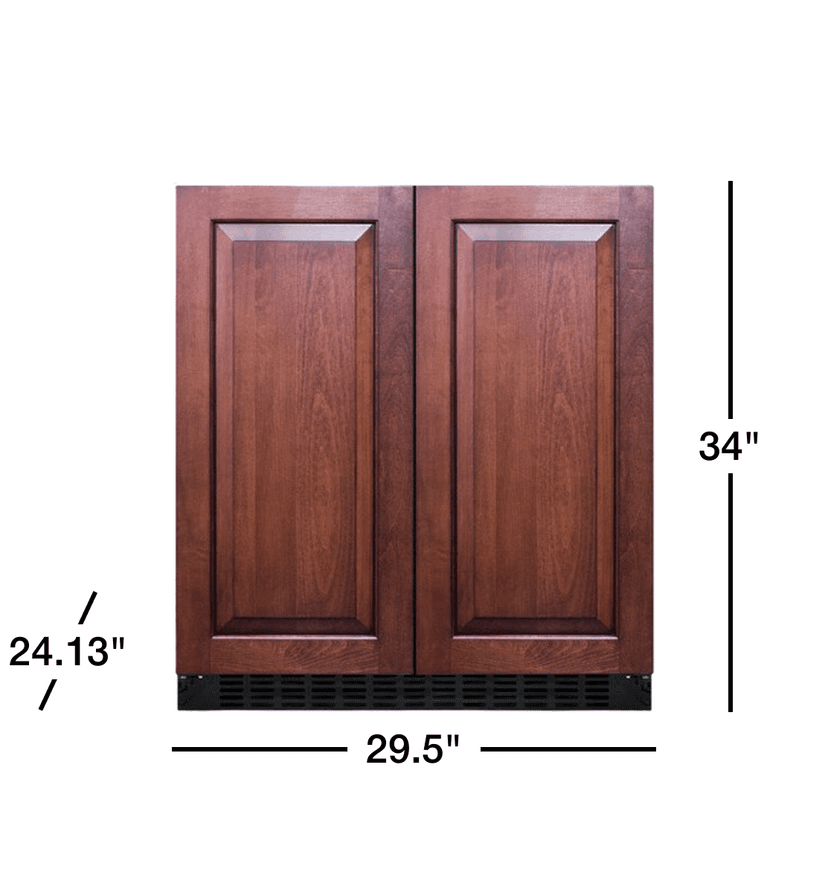

Height of Cabinet |
34.0" (86 cm) |
Width |
29.5" (75 cm) |
Depth |
24.13" (61 cm) |
Capacity |
5.4 cu.ft. (153 L) |
Defrost Type |
Frost-Free |
Door |
Panel-Ready |
Cabinet |
White |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Energy Usage/Year |
440.0kWh/year |
Amps |
1.5 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
125.0 lbs. (57 kg) |
Shipping Weight |
142.0 lbs. (64 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101054193 |
Door Swing |
French |
Adjustable Shelves |
Yes |
Interior Light |
Yes |
Refrigerator - Interior Height |
26.63" (68 cm) |
Refrigerator - Interior Width |
12.0" (30 cm) |
Refrigerator - Interior Depth |
17.63" (45 cm) |
Refrigerator - Capacity |
3.0 cu.ft |
Refrigerator - Shelf Type |
Glass |
Refrigerator - Shelf Qty |
3 |
Refrigerator - Full Door Shelves |
2 |
Refrigerator - Temperature Range |
36°F to 43°F |
Freezer - Interior Height |
25.38" (64 cm) |
Freezer - Interior Width |
10.38" (26 cm) |
Freezer - Interior Depth |
16.5" (42 cm) |
Freezer - Capacity |
2.4 cu.ft |
Freezer - Shelf Type |
Wire |
Freezer - Shelf Qty |
3 |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.45 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
2 |
Freezer - Temperature Range |
-4 to 4 F |
Compressor Step Height |
5.5" (14 cm) |
Compressor Step Width |
21.0" (53 cm) |
Compressor Step Depth |
6.0" (15 cm) |
