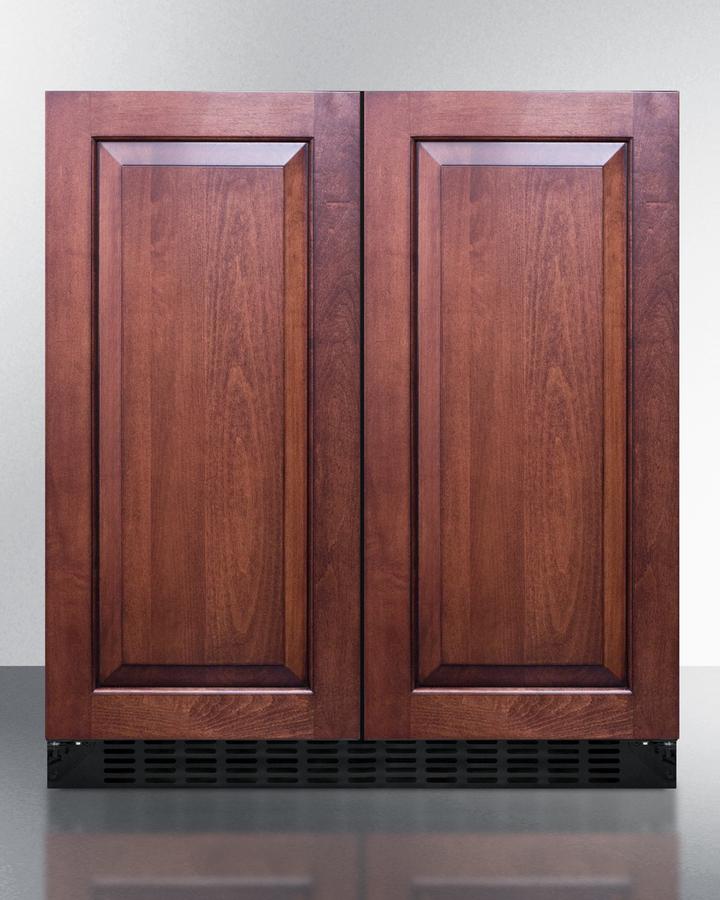

The FFRF3070BIF from SUMMIT is a high-quality, value-driven built-in refrigeration solution. This 30" wide, all-in-one side-by-side refrigerator-freezer is designed for both built-in and freestanding use. The unit features a front-breathing system for seamless under-counter installation and a fully finished black cabinet for standalone use. With French swing doors that include an integrated stainless steel frame, users can customize the look with overlay panels (30" H x 14 5/8" W). The sealed-back design adds space savings and simplifies cleanup.
Highlights
-
All-in-one Design: Features separate refrigerator and freezer sections with a single compressor operation for efficiency and convenience.
-
Built-in Capable: The front-breathing system allows for built-in installation, optimizing space under counters.
-
Panel-ready Doors: Stainless steel door frames accept full overlay panels, letting you customize the look or blend the unit into your cabinetry design (panel dimensions: 30" H x 14 5/8" W, 3/4" thick, max weight: 10 lbs).
-
Frost-free Operation: No-frost technology in both the refrigerator and freezer reduces maintenance needs.
-
Digital Thermostat: Includes a digital control panel in the refrigerator section for precise temperature management, with temperature readouts available in Celsius or Fahrenheit.
-
LED Lighting: Interior LED lighting in both sections provides an attractive and energy-efficient presentation.
-
Sabbath Mode: Allows you to disable digital displays, lights, and alarms for religious observance.
-
Adjustable Shelves: Spill-proof glass shelves in the refrigerator and adjustable wire shelves in the freezer ensure easy cleaning and proper cold air circulation.
-
Door Shelves: Two removable door racks offer additional storage flexibility.
-
Open Door Alarm: An alarm sounds if either door is left open for over 60 seconds, ensuring food safety.
-
High Temperature Alarm: An audible alarm alerts you if the interior temperature rises above the recommended range.
-
Slotted Floors: Specially designed floors with slots allow safe storage of bottles on their sides.
-
Internal Fan (Refrigerator Compartment): Ensures even cooling from top to bottom with fan-forced cooling.
-
Sealed Back: A space-saving design with no exposed coils makes cleaning easier.
-
Right Angle Plug: The design allows the unit to plug in flush against the wall socket without needing extra depth.
-
Temperature Memory Function: Retains the last temperature settings in the event of power loss, resuming them once power is restored.
-
Fully Finished Black Cabinet: The unit’s sleek design allows for freestanding use as well.
-
100% CFC Free: An environmentally friendly design free of ozone-damaging chemicals.
-
CARB Compliant: Uses an eco-friendly hydrocarbon-based refrigerant that meets current CARB regulations, offering a greener footprint.
- Separate refrigerator and freezer sections with single compressor operation
- Front-breathing system allows the unit to be used built-in
- Integrated stainless steel door frame on each door accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 30" H x 14 5/8" W at 3/4" thick; maximum weight: 10 lbs.)
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
- Interior LED lighting in both sections offers an attractive and energy efficient presentation
- Setting allows you to disable the digital displays, lights, and alarms for religious observance
- Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
- Two removable door racks provide additional storage as needed
- Alarm will sound if either door is left open for over 60 seconds
- Audible alarm sounds if the interior temperature rises above the recommended range
- Floor is specially designed with slots to allow you to store bottles safely on their sides
- Fan-forced cooling ensures the compartment is evenly cooled from top to bottom
- Space-saving design with no exposed coils in the rear offers easy cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. Sized at 30" wide, the FFRF3070BIF is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. The French swing doors feature an integrated stainless steel frame that lets users install their own overlay panels for a custom look (panel size: 30" H x 14 5/8" W). Users install their own handles. The sealed back ensures easier cleanup with added space savings. Inside, the FFRF3070BIF features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance. With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070BIF is a great choice for smaller kitchens looking to maximize storage space under the counter.

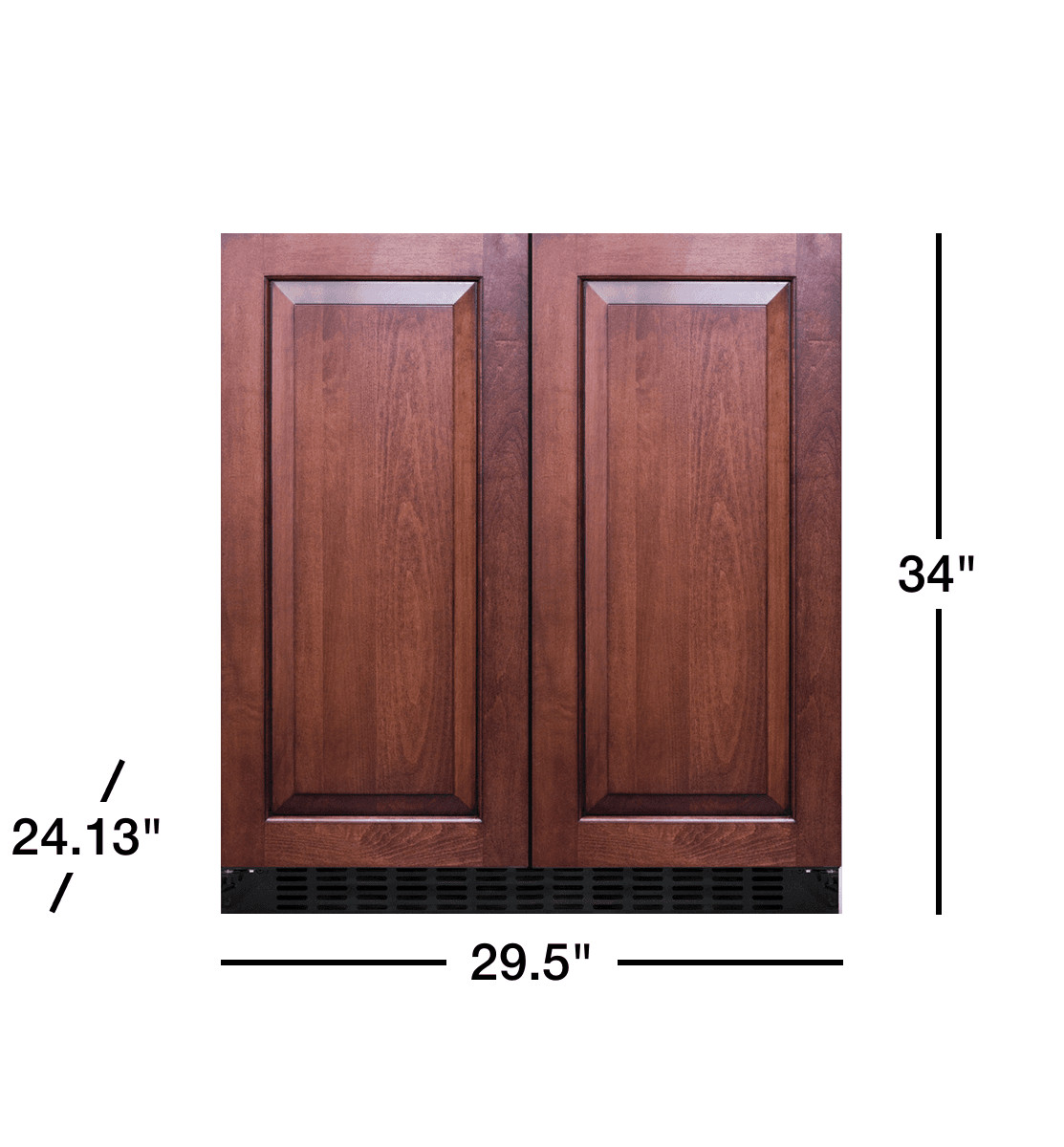

Height of Cabinet |
34.0" (86 cm) |
Width |
29.5" (75 cm) |
Depth |
24.13" (61 cm) |
Capacity |
5.4 cu.ft. (153 L) |
Defrost Type |
Frost-Free |
Door |
Panel-Ready |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Energy Usage/Year |
440.0kWh/year |
Amps |
1.5 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
125.0 lbs. (57 kg) |
Shipping Weight |
155.0 lbs. (70 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101054179 |
Door Swing |
French |
Adjustable Shelves |
Yes |
Interior Light |
Yes |
Refrigerator - Interior Height |
26.63" (68 cm) |
Refrigerator - Interior Width |
12.0" (30 cm) |
Refrigerator - Interior Depth |
17.63" (45 cm) |
Refrigerator - Capacity |
3.0 cu.ft |
Refrigerator - Shelf Type |
Glass |
Refrigerator - Shelf Qty |
3 |
Refrigerator - Full Door Shelves |
2 |
Refrigerator - Temperature Range |
36°F to 43°F |
Freezer - Interior Height |
25.38" (64 cm) |
Freezer - Interior Width |
10.38" (26 cm) |
Freezer - Interior Depth |
16.5" (42 cm) |
Freezer - Capacity |
2.4 cu.ft |
Freezer - Shelf Type |
Wire |
Freezer - Shelf Qty |
3 |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.45 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
2 |
Freezer - Temperature Range |
-4 to 4 F |
Compressor Step Height |
5.5" (14 cm) |
Compressor Step Width |
21.0" (53 cm) |
Compressor Step Depth |
6.0" (15 cm) |
