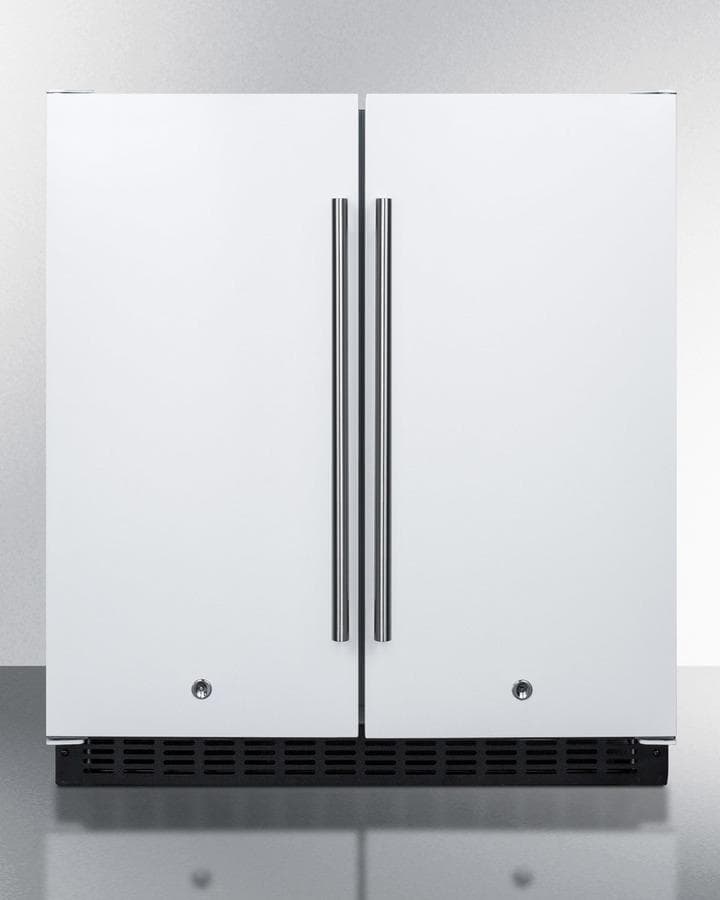

The SUMMIT FFRF3075W offers exceptional quality and value in built-in refrigeration, featuring the industry's largest collection of under-counter refrigeration. This 30" wide, all-in-one side-by-side refrigerator-freezer is designed with a front-breathing system, making it perfect for built-in installation under counters. Additionally, its fully finished cabinet allows for freestanding use. The unit has a white exterior with stainless steel handles and factory-installed front locks on each compartment for added security. Its sealed-back design ensures easier cleanup and added space savings.
Highlights
-
Built-in Capable: The front-breathing system allows the unit to be used as a built-in appliance.
-
All-in-one Design: Features separate refrigerator and freezer sections with a single compressor operation.
-
Frost-free Operation: No-frost technology in both compartments reduces maintenance needs.
-
Factory-installed Locks: Keyed locks on each section provide added security.
-
Pro Style Handles: Stainless steel handles offer an attractive and professional finish.
-
Digital Thermostat: The refrigerator section includes a digital control panel to manage temperatures in both compartments, with readouts in Celsius or Fahrenheit.
-
LED Lighting: Interior LED lighting in both sections provides an attractive and energy-efficient presentation.
-
Sabbath Mode: Allows you to disable digital displays, lights, and alarms for religious observance.
-
Adjustable Shelves: Spill-proof glass shelves in the refrigerator and adjustable wire shelves in the freezer ensure easy cleaning and proper cold air circulation.
-
Door Shelves: Two removable door racks provide additional storage as needed.
-
Slotted Floors: Specially designed floors with slots allow for safe bottle storage on their sides.
-
Internal Fan (Refrigerator Compartment): Fan-forced cooling ensures even cooling from top to bottom.
-
Open Door Alarm: An alarm sounds if either door is left open for over 60 seconds, ensuring food safety.
-
High Temperature Alarm: An audible alarm alerts you if the interior temperature rises above the recommended range.
-
Temperature Memory Function: In the event of power loss, the unit retains its last temperature settings upon power recovery.
-
Right Angle Plug: Allows the unit to plug in flush against the wall socket without adding extra depth.
-
Sealed Back: Space-saving design with no exposed coils makes cleaning easier.
-
Fully Finished Cabinet: The unit’s sleek design allows for freestanding use as well.
-
100% CFC Free: Environmentally friendly design free of ozone-damaging chemicals.
-
CARB Compliant: Uses an eco-friendly hydrocarbon-based refrigerant that meets current CARB regulations, offering a greener footprint.
- Front-breathing system allows the unit to be used built-in
- Separate refrigerator and freezer sections with single compressor operation
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Keyed locks for each section offer added security
- Stainless steel handles offer an attractive finish for the appliance
- Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
- Interior LED lighting in both sections offers an attractive and energy efficient presentation
- Setting allows you to disable the digital displays, lights, and alarms for religious observance
- Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
- Two removable door racks provide additional storage as needed
- Floor is specially designed with slots to allow you to store bottles safely on their sides
- Fan-forced cooling ensures the compartment is evenly cooled from top to bottom
- Alarm will sound if either door is left open for over 60 seconds
- Audible alarm sounds if the interior temperature rises above the recommended range
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils in the rear offers easy cleanability
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. Sized at 30" wide, the FFRF3075W is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit features a white exterior with stainless steel handles. Each compartment has a factory installed front lock for added security. The sealed back ensures easier cleanup with added space savings. Inside, the FFRF3075W features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance. With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3075W is a great choice for smaller kitchens looking to maximize storage space under the counter.

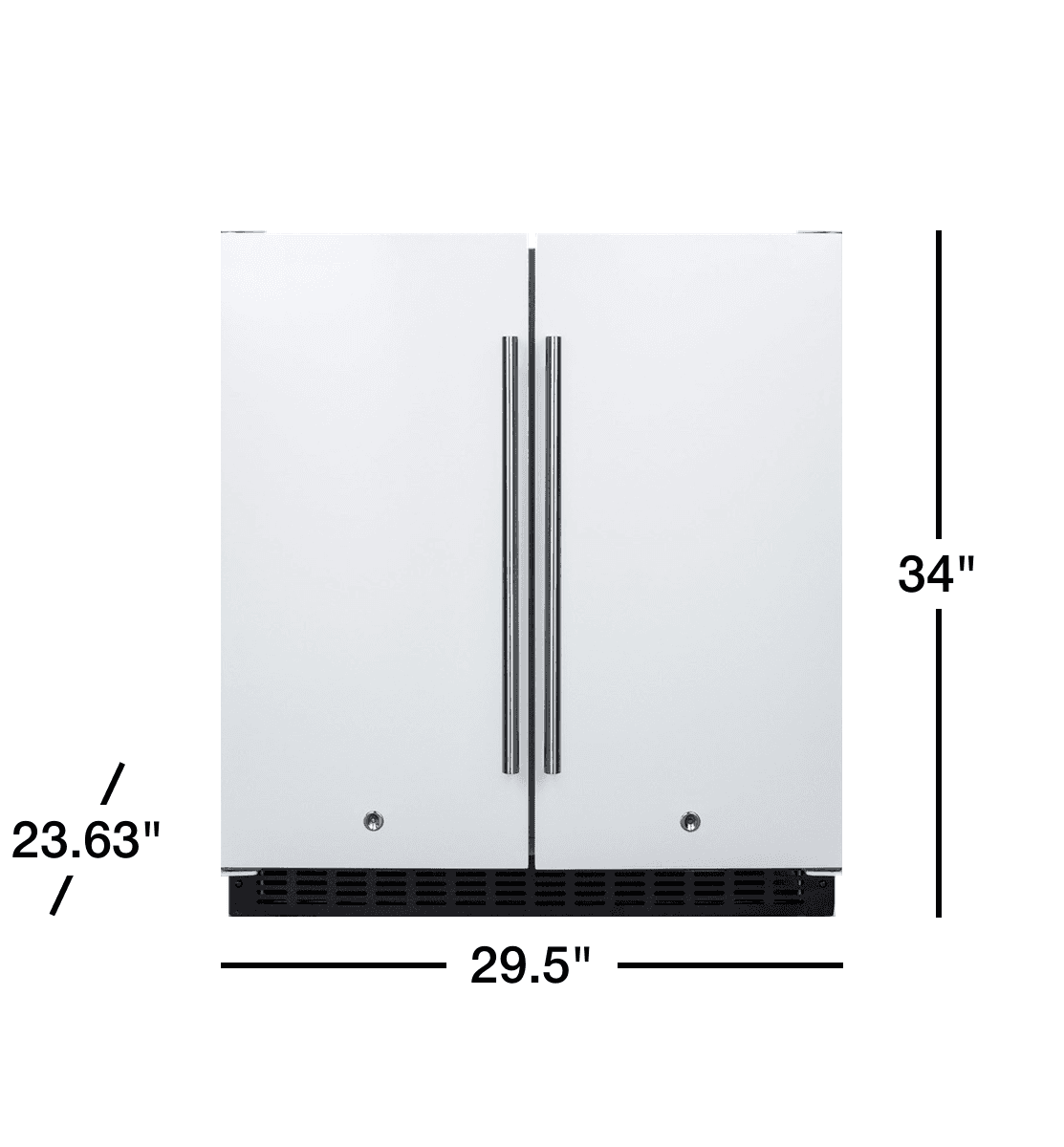

Height of Cabinet |
34.0" (86 cm) |
Width |
29.5" (75 cm) |
Depth |
23.63" (60 cm) |
Depth with Handle |
25.38" (64 cm) |
Depth with door at 90° |
37.25" (95 cm) |
Capacity |
5.4 cu.ft. (153 L) |
Defrost Type |
Frost-Free |
Door |
White |
Cabinet |
White |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Energy Usage/Year |
440.0kWh/year |
Amps |
1.5 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
115.0 lbs. (52 kg) |
Shipping Weight |
155.0 lbs. (70 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101050416 |
Door Swing |
French |
Adjustable Shelves |
Yes |
Interior Light |
Yes |
Refrigerator - Interior Height |
26.63" (68 cm) |
Refrigerator - Interior Width |
12.0" (30 cm) |
Refrigerator - Interior Depth |
17.63" (45 cm) |
Refrigerator - Capacity |
3.0 cu.ft |
Refrigerator - Shelf Type |
Glass |
Refrigerator - Shelf Qty |
3 |
Refrigerator - Full Door Shelves |
2 |
Refrigerator - Temperature Range |
36°F to 43°F |
Freezer - Interior Height |
25.38" (64 cm) |
Freezer - Interior Width |
10.38" (26 cm) |
Freezer - Interior Depth |
16.5" (42 cm) |
Freezer - Capacity |
2.4 cu.ft |
Freezer - Shelf Type |
Wire |
Freezer - Shelf Qty |
3 |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.45 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
2 |
Freezer - Temperature Range |
-4 to 4 F |
