The FFRF3070B by SUMMIT offers quality and value with its all-in-one side-by-side refrigerator-freezer, designed to fit seamlessly under counters or as a freestanding unit. With a spacious 30" wide footprint, this appliance features a sleek jet-black exterior with stainless steel handles, enhancing the aesthetic of any kitchen. Its front-breathing design allows for easy built-in installation, while the fully finished cabinet ensures versatility for freestanding use. Packed with advanced features, this refrigerator-freezer provides efficient cooling and convenient storage options.
Highlights
-
Built-In Capable: Front-breathing system allows for built-in installation under counters, maximizing space efficiency.
-
All-In-One Design: Separate refrigerator and freezer sections operate with a single compressor, providing optimal cooling performance.
-
Frost-Free Operation: No-frost system reduces maintenance needs in both compartments, ensuring hassle-free operation.
-
Factory-Installed Locks: Keyed locks for each section offer added security, safeguarding your stored items.
-
Pro Style Handles: Stainless steel handles add a touch of elegance and durability to the appliance.
-
Digital Thermostat: The refrigerator section features a digital control panel for precise temperature management, with Celsius or Fahrenheit readouts.
-
LED Lighting: Interior LED lighting illuminates both compartments, enhancing visibility and energy efficiency.
-
Sabbath Mode: Allows you to disable digital displays, lights, and alarms for religious observance.
-
Adjustable Shelves: Spill-proof glass shelves in the refrigerator and adjustable wire shelves in the freezer offer customizable storage options.
-
Door Shelves: Two removable door racks provide additional storage space for bottles and condiments.
-
Open Door Alarm: Audible alarm alerts if either door is left open for over 60 seconds, helping to prevent temperature fluctuations.
-
High Temperature Alarm: Alerts you if the interior temperature rises above the recommended range, preserving food safety.
-
Slotted Floors: Specially designed floors allow you to store bottles safely on their sides, optimizing storage space.
-
Internal Fan (Refrigerator Compartment): Fan-forced cooling ensures even temperature distribution from top to bottom, keeping your food fresh.
-
Sealed Back: Space-saving design with no exposed coils in the rear offers easy cleanability and a sleek appearance.
-
Right Angle Plug: Allows the unit to be plugged in flush against the wall socket without additional depth requirements.
-
Temperature Memory Function: Retains the last temperature settings upon power recovery, ensuring consistent cooling performance.
-
Fully Finished Cabinet: Enables freestanding use, offering flexibility in placement options.
-
100% CFC Free: Environmentally friendly design without ozone-damaging chemicals.
-
CARB Compliant: Utilizes an eco-friendly hydrocarbon-based refrigerant that meets current CARB regulations for reduced environmental impact.
- Front-breathing system allows the unit to be used built-in
- Separate refrigerator and freezer sections with single compressor operation
- No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Keyed locks for each section offer added security
- Stainless steel handles offer an attractive finish for the appliance
- Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
- Interior LED lighting in both sections offers an attractive and energy efficient presentation
- Setting allows you to disable the digital displays, lights, and alarms for religious observance
- Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
- Two removable door racks provide additional storage as needed
- Alarm will sound if either door is left open for over 60 seconds
- Audible alarm sounds if the interior temperature rises above the recommended range
- Floor is specially designed with slots to allow you to store bottles safely on their sides
- Fan-forced cooling ensures the compartment is evenly cooled from top to bottom
- Space-saving design with no exposed coils in the rear offers easy cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. Sized at 30" wide, the FFRF3070B is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit features a jet black exterior with stainless steel handles. Each compartment has a factory installed front lock for added security. The sealed back ensures easier cleanup with added space savings. Inside, the FFRF3070B features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance. With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070B is a great choice for smaller kitchens looking to maximize storage space under the counter.

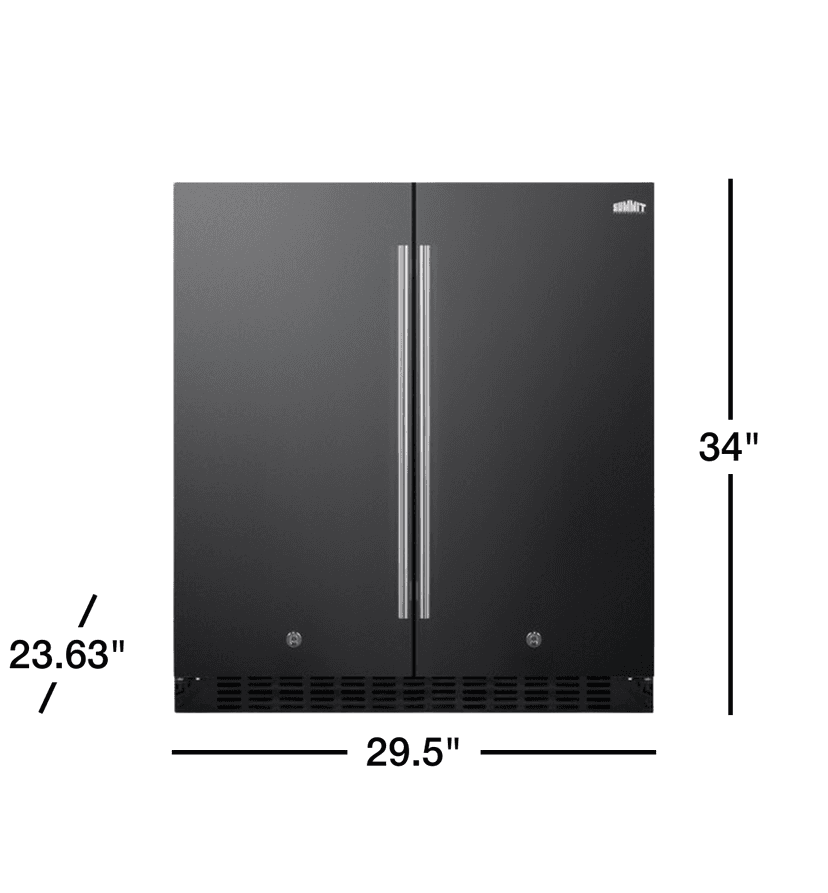

Height of Cabinet |
34.0" (86 cm) |
Width |
29.5" (75 cm) |
Depth |
23.63" (60 cm) |
Depth with Handle |
25.38" (64 cm) |
Depth with door at 90° |
37.25" (95 cm) |
Capacity |
5.4 cu.ft. (153 L) |
Defrost Type |
Frost-Free |
Door |
Black |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Energy Usage/Year |
490.0kWh/year |
Amps |
1.5 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
115.0 lbs. (52 kg) |
Shipping Weight |
150.0 lbs. (68 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101050409 |
Door Swing |
French |
Adjustable Shelves |
Yes |
Interior Light |
Yes |
Refrigerator - Interior Height |
26.63" (68 cm) |
Refrigerator - Interior Width |
12.0" (30 cm) |
Refrigerator - Interior Depth |
17.63" (45 cm) |
Refrigerator - Capacity |
3.0 cu.ft |
Refrigerator - Shelf Type |
Glass |
Refrigerator - Shelf Qty |
3 |
Refrigerator - Full Door Shelves |
2 |
Refrigerator - Temperature Range |
36°F to 43°F |
Freezer - Interior Height |
25.38" (64 cm) |
Freezer - Interior Width |
10.38" (26 cm) |
Freezer - Interior Depth |
16.5" (42 cm) |
Freezer - Capacity |
2.4 cu.ft |
Freezer - Shelf Type |
Wire |
Freezer - Shelf Qty |
3 |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.45 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
2 |
Freezer - Temperature Range |
-4 to 4 F |
