Summit presents the CR5B30T7B, a 30" wide radiant cooktop designed for efficiency and style in standard kitchen setups. This 208-240V cooktop fits well into popular 29 1/2" W x 19 5/8" D counter cutouts, featuring a sleek EuroKera ceramic glass surface in jet black. Professional installation is required as this unit does not include a power cord and must be hard-wired.
Highlights
-
30" Wide 5-Burner Radiant Cooktop: Designed to fit common counter cutouts, offering ample cooking space and flexibility with five burners.
-
EuroKera Glass Surface: A smooth ceramic glass surface ensures easy cleaning and adds a touch of modern elegance to your kitchen.
-
Extra Large 2500W Burner: Powerful 9 3/4" diameter rear right burner with 2500W cooking power handles large pots and speeds up water boiling.
-
Large 2200W Burner: A 9" diameter left rear burner provides robust 2200W output, suitable for larger cooking vessels.
-
2 Standard 1200W Burners: Front left and front right burners are 6.5" in diameter, catering to most cooking needs.
-
Dual Cooking Zones: Rear burners feature an inner 5 1/2" burner option, optimizing energy use for smaller cookware.
-
Warming Zone: Center 6 1/2" element operates at 100W, keeping food warm without overcooking.
-
Digital Touch Controls: User-friendly operation with a digital control panel and central display for convenient access.
-
9 Power Levels: Adjust heating levels effortlessly with nine preset options to suit different cooking requirements.
-
Timer: Program burners to operate for up to 99 minutes, automatically turning off or alerting with an audible signal when done.
-
Residual Heat Indicator Light: Alerts when the cooktop surface is still hot to the touch, promoting safety.
-
ADA-Compliant Design: Front-located controls meet ADA guidelines, ensuring accessibility for all users.
-
Child Lock: Safety feature prevents unintended use by locking the cooktop controls.
-
Safety Cut-Off Function: Automatically turns off if the on/off switch is touched without selecting a power level within one minute.
-
Automatic Shutoff: Shuts off a cooking zone after two hours of continuous use without adjustment to prevent unsupervised heating.
-
208-240V Operation: Requires professional hardwired installation for optimal performance and safety (cord not included).
- Designed to fit common 29 1/2" x 19 5/8" counter cutouts
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
- Left rear 2200W element is 9" in diameter to handle larger cooking vessels
- Front left and front right burners are 6.5" in diameter to meet most cooking needs
- Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
- Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
- Easy operation with a digital control panel and digital display conveniently centered upfront
- Select and adjust your heating levels at the touch of a button
- Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
- Indicator shows when the surface is still hot to touch
- Upfront controls meet ADA guidelines for easier accessibilty
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation (cord not included)
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR5B30T7B is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 2500W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B30T7B brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as white glass finishes. Browse the full Summit lineup for more.

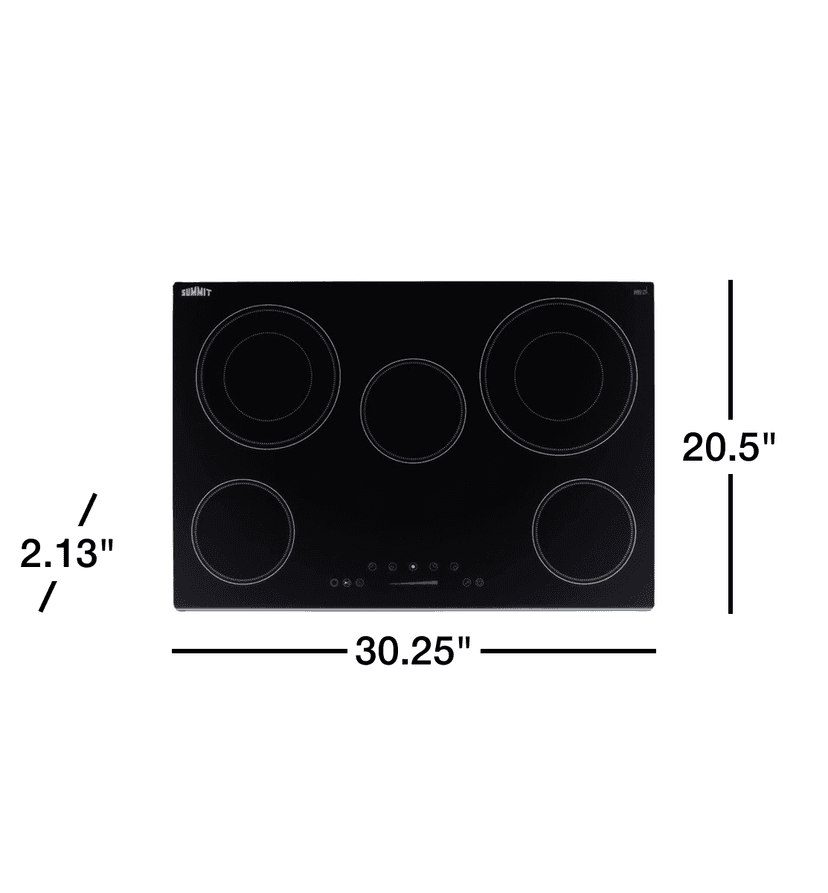

Height of Cabinet |
2.13" (5 cm) |
Width |
30.25" (77 cm) |
Depth |
20.5" (52 cm) |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Amps |
30.0 |
Voltage/Frequency |
240 V AC/60 Hz |
Weight |
28.0 lbs. (13 kg) |
Parts & Labor Warranty |
1 Year |
UPC |
761101077543 |
Heating Type |
Radiant |
Surface |
Glass |
Element Type |
Glasstop |
Number of Elements |
5 |
Controls |
Digital |
Cooking Timer |
Yes |
Countertop Cutout Height |
3.2" (8 cm) |
Countertop Cutout Width |
29.5" (75 cm) |
Countertop Cutout Depth |
19.63" (50 cm) |
Element #1 Size |
6.5" (17 cm) |
Element #1 Wattage |
1200.0 |
Element #2 Size |
9.0" (23 cm) |
Element #2 Wattage |
2200.0 |
Element #3 Size |
6.5" (17 cm) |
Element #3 Wattage |
100.0 |
Element #4 Size |
9.75" (25 cm) |
Element #4 Wattage |
2500.0 |
Element #5 Size |
6.5" (17 cm) |
Element #5 Wattage |
1200.0 |
Power Cord Included |
No |
