SUMMIT 25 Lb. Drain-free Outdoor Icemaker, ADA Compliant

• No drain is required for more flexibility in placing the icemaker indoors or outside
• 31.75" height allows installation under lower ADA-compliant counters
• Durable construction for safe installation in outdoor kitchens
• This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
• Convenient design allows more flexibility in positioning the unit
• 304-grade stainless steel allows the icemaker to be used freestanding
• Produces and stores more than 20 lbs of ice per day cycle
• Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
• User-reversible door swing for flexible placement
• Space-saving design with easier cleanability
• Operates with a standard 1/4 OD water supply line
• Make the best use of space by installing your ice maker under the counter
• Horizontally mounted towel bar style handle in stainless steel
• Water filter is included for optional use
• Large ice scoop and holder included for your convenience
• Crescent-shaped ice provides a harder and longer-lasting ice
• Users can remove the ice bucket for fast and easy cleaning
• Ice stays solid longer in this cold-protected bin
• Environmentally friendly design without ozone-damaging chemicals
• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit combines convenience and luxury to craft the BIM27OSADA - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM27OSADA features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters in outdoor spaces. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look. The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM27OSADA shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its complete stainless steel construction and low maintenance design, the BIM27OSADA is a great way to finish any undercounter outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. This outside icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Overview

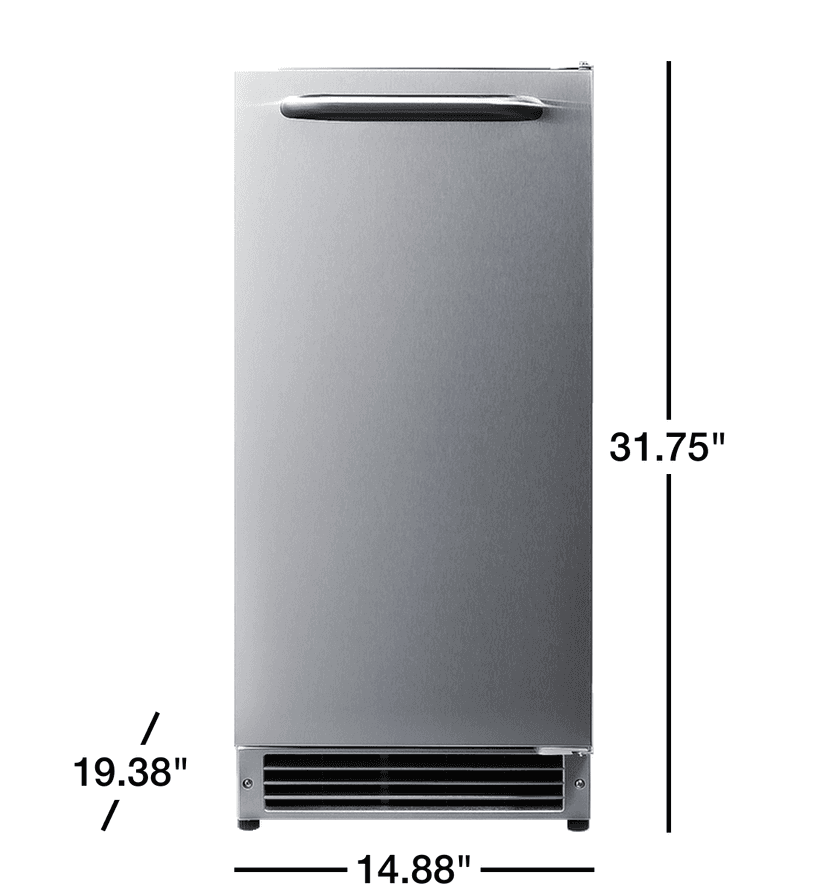

Height of Cabinet	31.75" (81 cm)
Width	14.88" (38 cm)
Depth	19.38" (49 cm)
Depth with Handle	21.38" (54 cm)
Depth with door at 90°	33.63" (85 cm)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.9
Voltage/Frequency	115 V AC/60 Hz
Weight	61.0 lbs. (28 kg)
Shipping Weight	94.5 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101103549
Icemaker
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Daily Ice Production	25.0 lbs. (11 kg)
Ice Storage Capacity	22.0 lbs. (10 kg)
Ice Shape	Crescent
Size of Cube	1/2" x 3/4" x 2 3/8"
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	15.88" (40 cm)
Interior Width	11.88" (30 cm)
Interior Depth	12.38" (31 cm)
Level Legs	4
