SUMMIT 24" Wide Refrigerator-freezer with Dual evaporator, Cycle defrost, Adjustable glass shelves and Interior light (panel Not Included)

• 24" wide refrigerator-freezer designed and manufactured in Europe for residential use
• Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
• 5 cu.ft. of interior storage, larger than virtually any other refrigerator-freezer in this size class
• Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
• Ideal 24" footprint for an easy fit
• Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter
• Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height
• Interior .6 cu.ft. freezer compartment with reversible door
• Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Store tall bottles and condiments right on the door for convenient access
• Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally
• Removable clear crisper drawer offers the ideal conditions for keeping produce at its best
• Automatically illuminates when you open the door
• Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Attractive jet black finish inside to match the cabinet and kickplate
• Simple and intuitive analog controls located inside for easy temperature management
• Allows the unit to be used freestanding
• Environmentally friendly design without ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's undercounter lineup of European-made refrigeration features counter height choices that offer the largest capacity in the industry, including fully featured refrigerators with freezer compartments to meet all of your storage needs. Sized with a 24" footprint, model CT66BK2SSRSIF is an ENERGY STAR certified refrigerator-freezer designed for recessed installation or freestanding use in residential kitchens. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. This unit has a jet black exterior cabinet and runs quietly at less than 33 dB. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height. Inside, the CT66BK2SSRSIF offers 5 cu.ft. of storage, a higher capacity than virtually any refrigerator-freezer in this size class. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open. Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. The advanced dual evaporator system allows separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The CT66BK2SSRSIF is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this refrigerator-freezer is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height, as well as in freezerless configurations (model FF6BK2SSRSIF). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

Overview

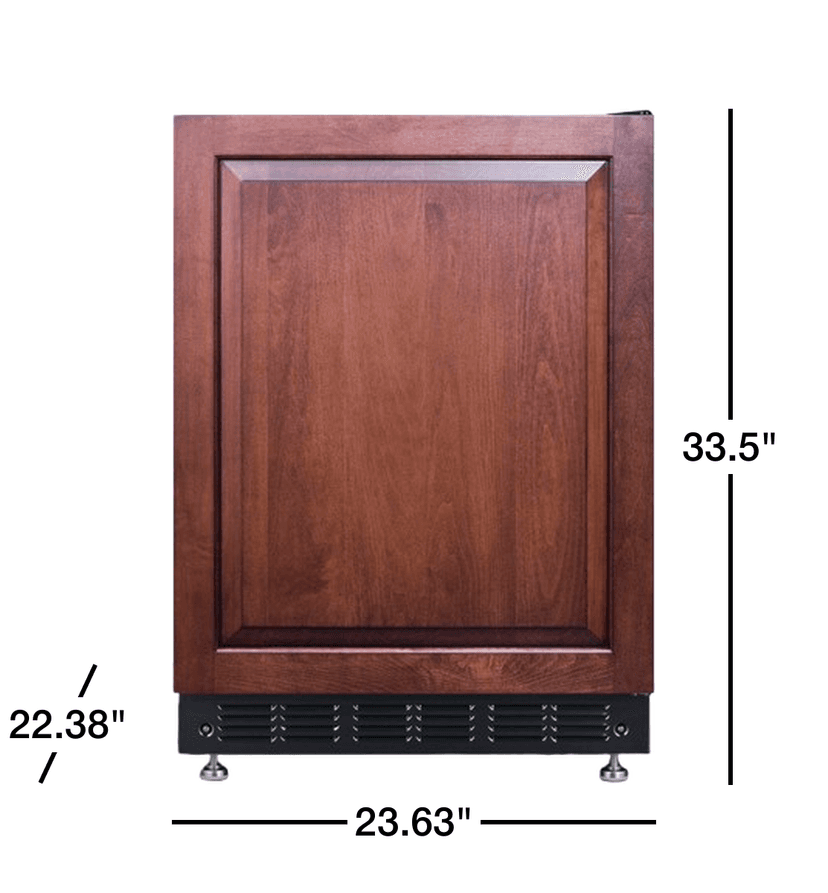

Height of Cabinet	33.13" (84 cm)
Height to Hinge Cap	33.5" (85 cm)
Width	23.63" (60 cm)
Depth	22.38" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	5.0 cu.ft. (142 L)
Defrost Type	Cycle
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	330.0kWh/year
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	122.0 lbs. (55 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101103341
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Wine Bottle Shelving	Yes
Interior Light	Yes
Refrigerator - Interior Height	18.0" (46 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	18.0" (46 cm)
Refrigerator - Capacity	4.3 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Refrigerator - Temperature Range	36°F to 46°F
Freezer - Interior Height	5.25" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Freezer - Capacity	0.7 cu.ft
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
Sound Level	32.6
