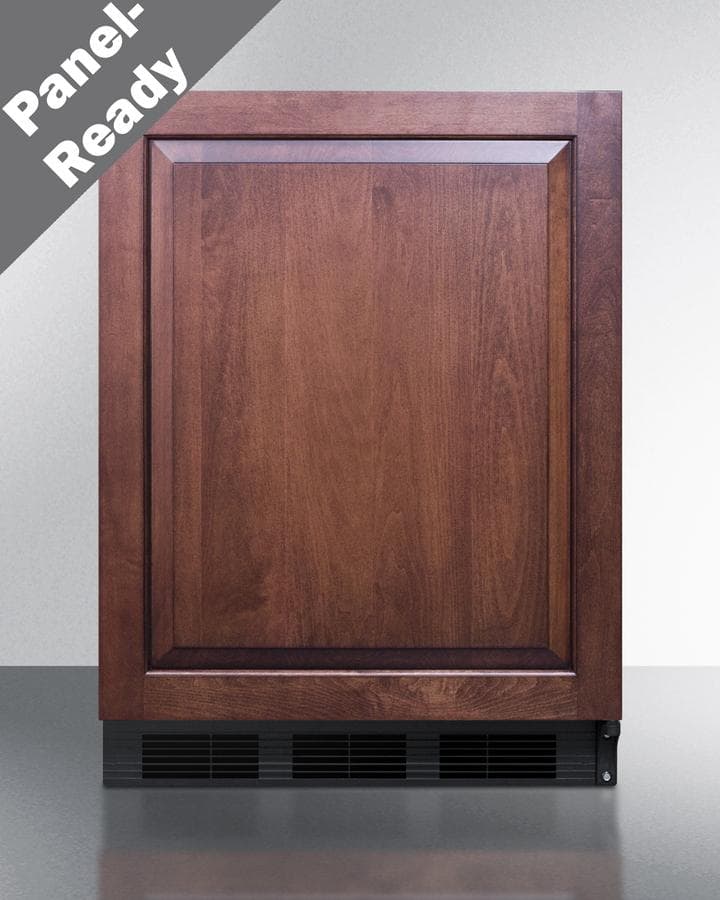

SUMMIT 24" Wide Refrigerator-freezer with Cycle defrost, Adjustable glass shelves, Door shelves, Crisper drawer and Interior light (panel Not Included)

• Full capacity for boht refrigerated and frozen foods, designed and manufactured in Europe for residential use
• Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
• Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
• This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
• Store tall bottles and condiments right on the door for convenient access
• Removable scalloped wine shelf is included to store champagne and wine bottles
• Get the longest life and best taste out of produce by storing greens in lower slide drawer
• Automatically illuminates when the door is opened
• Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Dial thermostat located inside for easy temperature management
• Allows the unit to be used freestanding
• Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
• Environmentally friendly design does not contain ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT brings quality and value under the counter with the industry s largest collection of undercounter refrigeration. The CT663BK Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen. Sized with a 24 footprint, CT663BKIF refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The versatile design allows recessed or freestanding use. This model features a black exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to match your own cabinetry style. Customers provide their own handle. Inside, the CT663BKIF features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. With its ideal dimensions and user-friendly features, the CT663BKIF is the perfect refrigerator-freezer for any home in need of versatile storage under the counter. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Overview
Height of Cabinet	33.25" (84 cm)
Height to Hinge Cap	32.63" (83 cm)
Width	23.63" (60 cm)
Depth	23.75" (60 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	5.04 cu.ft. (143 L)
Defrost Type	Cycle
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	330.0kWh/year
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101068541
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Wine Bottle Shelving	Yes
Interior Light	Yes
Refrigerator - Interior Height	18.0" (46 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	18.0" (46 cm)
Refrigerator - Capacity	4.5 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.25" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Freezer - Capacity	0.6 cu.ft
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	4
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
