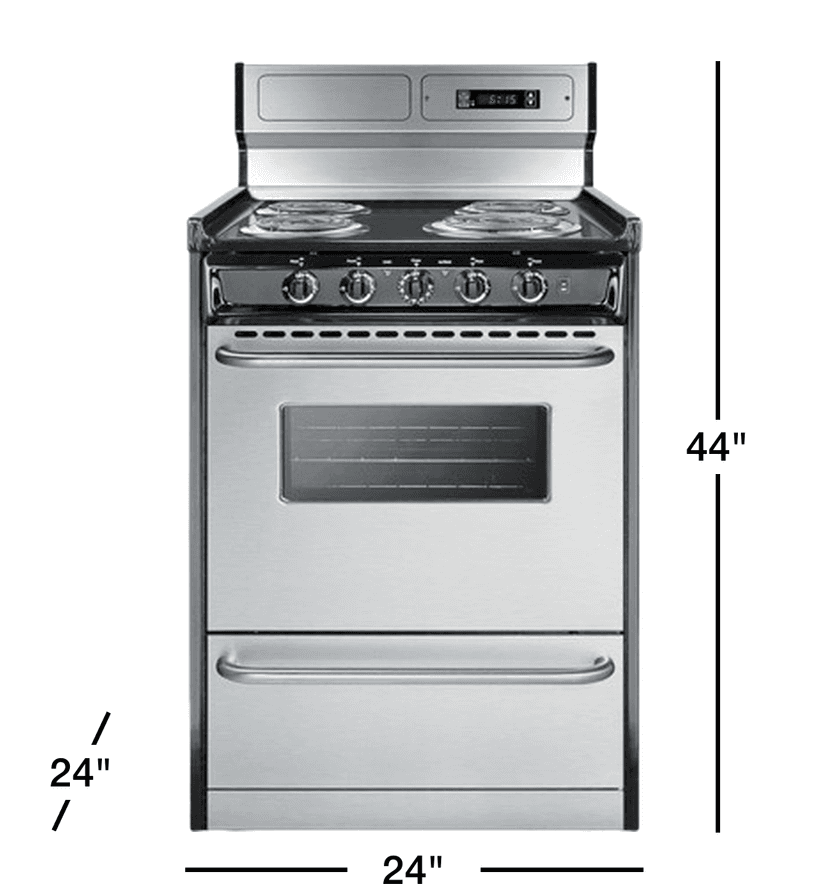

The TEM630BKWY from Summit Appliance offers a wide selection of American-made household ranges designed for long-lasting durability in space-challenged kitchens. This 220V electric range is apartment-sized at just 24" wide, with a generous 2.92 cu. ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Highlights
-
Made in the USA: Designed and constructed domestically.
-
Slim 24-inch width: Apartment-sized width offers all the functionality you need in a smaller footprint.
-
24-inch depth: The shallow fit is ideal for L-shaped and galley kitchens.
-
Stainless steel finish: Doors and backyard are constructed from brushed stainless steel for modern luxury built to last.
-
Professional towel bar handles Curved handles in brushed stainless steel offer an easier grip in an attractive style.
-
Storage compartment: The bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen.
-
Four coil elements: Three standard 6" and one large 8" element.
-
Meets UL-858: Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature.
-
Chrome drip pans: Each coil element includes a removable chrome pan for easier cleaning.
-
An oven window and interior lighting: The door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door.
-
Waist-high broiler: The broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor.
-
Adjustable oven racks: Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes.
-
Porcelain and steel construction: Solid construction built to hold up to everyday use.
-
Recessed oven door: Smart design limits the depth and protects adjacent cabinets.
-
Upfront oven/burner controls: All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners.
-
Deluxe backguard: An 8" high backguard helps to protect your walls from spills and splashes.
-
Digital clock and timer: The Backguard includes a clock and timer for added convenience.
-
Push-to-turn knobs: Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn.
-
Indicator lights: The control panel includes an 'on' light for the oven and burners for added safety when using the range.
-
Removable oven door and range top: Allows for easier cleaning as needed.
-
Broiler pan included: Two-piece porcelain broiler tray with grease well.
-
Anti-tip bracket: Included for user installation to help prevent tipping.
-
Cord not included: Compatible with standard 40 amp 3 or 4-wire range cords.
-
ADA-compliant design: Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines.
- Designed and constructed domestically
- Apartment-sized width offers all the functionality you need in a smaller footprint
- Shallower fit is ideal for L-shaped and and galley kitchens
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
- Each coil element includes a removable chrome pan for easier cleaning
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Solid construction built to hold up to everyday use
- Smart design limits the depth and protects adjacent cabinets
- All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes clock and timer for added convenience
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Two-piece porcelain broiler tray with grease well
- Included for user installation to help prevent tipping
- Compatible with standard 40 amp 3 or 4-wire range cords
- Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM630BKWY is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.
Height of Cabinet |
44.0" (112 cm) |
Width |
24.0" (61 cm) |
Depth |
24.0" (61 cm) |
Door |
Stainless Steel |
Cabinet |
Black |
Voltage/Frequency |
220 V AC/60 Hz |
Weight |
135.0 lbs. (61 kg) |
Parts & Labor Warranty |
1 Year |
UPC |
761101005027 |
Oven Capacity |
2.92 cu.ft. (83 L) |
Cooktop Surface |
Porcelain |
Element Type |
Coils |
Number of Elements |
4 |
Element #1 Size |
6.0" (15 cm) |
Element #1 Wattage |
1500.0 |
Element #2 Size |
6.0" (15 cm) |
Element #2 Wattage |
1500.0 |
Element #3 Size |
6.0" (15 cm) |
Element #3 Wattage |
1500.0 |
Element #4 Size |
8.0" (20 cm) |
Element #4 Wattage |
2400.0 |
Burner Controls |
Dial |
Oven Controls |
Dial |
Oven Light |
Yes |
Cooking Timer |
Yes |
Backguard |
Yes |
Backguard Display |
Yes |
Oven Rack Qty |
2 |
Oven Window |
Yes |
Oven Interior Height |
14.0" (36 cm) |
Oven Interior Width |
19.0" (48 cm) |
Oven Interior Depth |
19.0" (48 cm) |
Storage Compartment |
Yes |
Broiler Location |
Inside Oven |
