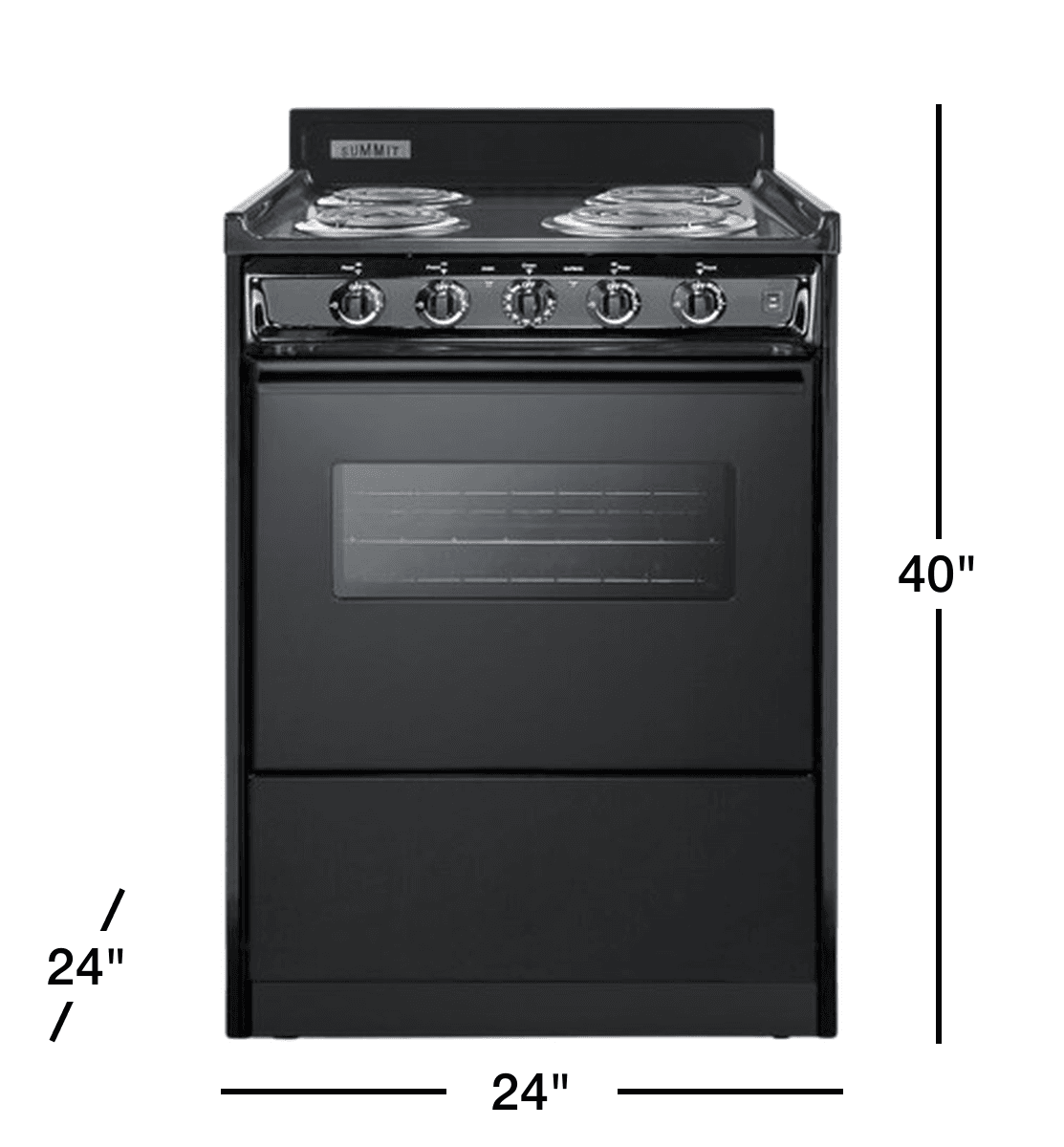

SUMMIT 24" Wide Electric Coil Range with 4 Coil Elements, 2.9 cu. ft. Oven Capacity, Storage Drawer, Waist-High Broiler, Push-To-Turn Knobs - Black

• Designed and constructed domestically
• Apartment-sized width offers all the functionality you need in a smaller footprint
• Shallower fit is ideal for L-shaped and galley kitchens
• Keep pots and pans inside the lower drop-down compartment for easy space-saving storage
• Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
• Three standard 6" and one large 8" element
• Each element includes a removable chrome pan for easier cleaning
• Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
• Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
• Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
• Smart design limits the depth and protects adjacent cabinets
• Solid construction built to hold up to everyday use
• Black porcelain oven door and top can be removed for easier cleaning
• All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
• Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
• Control panel includes an 'on' light for the oven and burners for added safety when using the range
• Allows for easier cleaning as needed
• Two-piece porcelain broiler tray with grease well
• Included for user installation to help prevent tipping
• Compatible with standard 40 amp 3 or 4-wire range cords
• Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM610CW is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The TEM610CW comes in a jet black finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.

Overview
Height of Cabinet	40.0" (102 cm)
Width	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	Black
Cabinet	Black
US Electrical Safety	CSA
Voltage/Frequency	220 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Shipping Weight	145.0 lbs. (66 kg)
Parts & Labor Warranty	1 Year
UPC	761101016511
Electric Range
Oven Capacity	2.92 cu.ft. (83 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	675.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	950.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	19.0" (48 cm)
Storage Compartment	Yes
Broiler Location	Inside Oven
Oven Door	White
