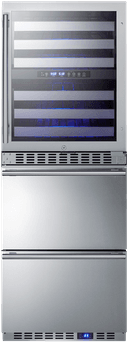

SUMMIT 24" Wide Combination Dual-zone Wine Cellar and 2-drawer All-refrigerator

• Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces
• Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
• Front-breathing design allows this unit be built in for added space savings
• Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
• LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
• Provides a full display of the interior, with two levels of glass for added protection
• Single-piece door trim offers a more deluxe look
• Solid stainless steel handles 1 in diameter afford style to any setting
• Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
• Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
• Shelves move smoothly on ball-bearing glides for easier loading and unloading
• Reduced maintenance with auto defrost system
• Keyed lock for secure interior, with two keys included
• User-reversible door swing makes it easy to best accommodate your setting
• Slide-out drawers offer 3.4 cu.ft. of interior storage
• Complete stainless steel construction offers added durability in an easy-cleaning design
• Two adjustable dividers make it simple to organize the drawer interiors
• Removable chrome basket included for easier storage convenience
• No-frost operation for minimum user maintenance
• Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Protects from everyday wear and tear in a durable, elegant design
• Audible alarm will sound if the drawers are left ajar for over a minute
• High temperature alarm sounds if the unit's interior goes out of the recommended range
• Unit will retain its last settings when power is restored in the event of power loss
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Included 6 ft. cord allows users to operate both the wine cellar & refrigerator using a single plug for added convenience
• Included and recommended for user-installation to reduce the risk of tipping
• Allows the unit to be used freestanding
• Unit comes fully assembled for user convenience
• This unit is also available with a bottom freezer (see the SWCDAF24) or a bottom refrigerator-freezer (see the SWCDRF24)
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDAR24 combines the 46 bottle capacity two-zone wine cellar (model ALWC532) with the 3.4 cu.ft. two-drawer refrigerator (model FF642D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. Pro-style handles in brushed stainless steel complete the modern look, while the sealed back offers added space savings when placing the unit. The included 6' Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41(degree)F and 50 F for white wine, while the lower zone is designed to store red wine between 50(degree)F and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes, perfect for storing canned beverages or meats and cheeses to pair with your favorite wine. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss. Offering complete refrigeration convenience in a slim-fitting design, the SWCDAR24 is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDAR24PNR). Additional options are available with a bottom freezer (model SWCDAF24) or a bottom refrigerator-freezer (model SWCDRF24). Note: This unit comes with an anti-tip bracket which should be installed to prevent tipping forward.

Overview

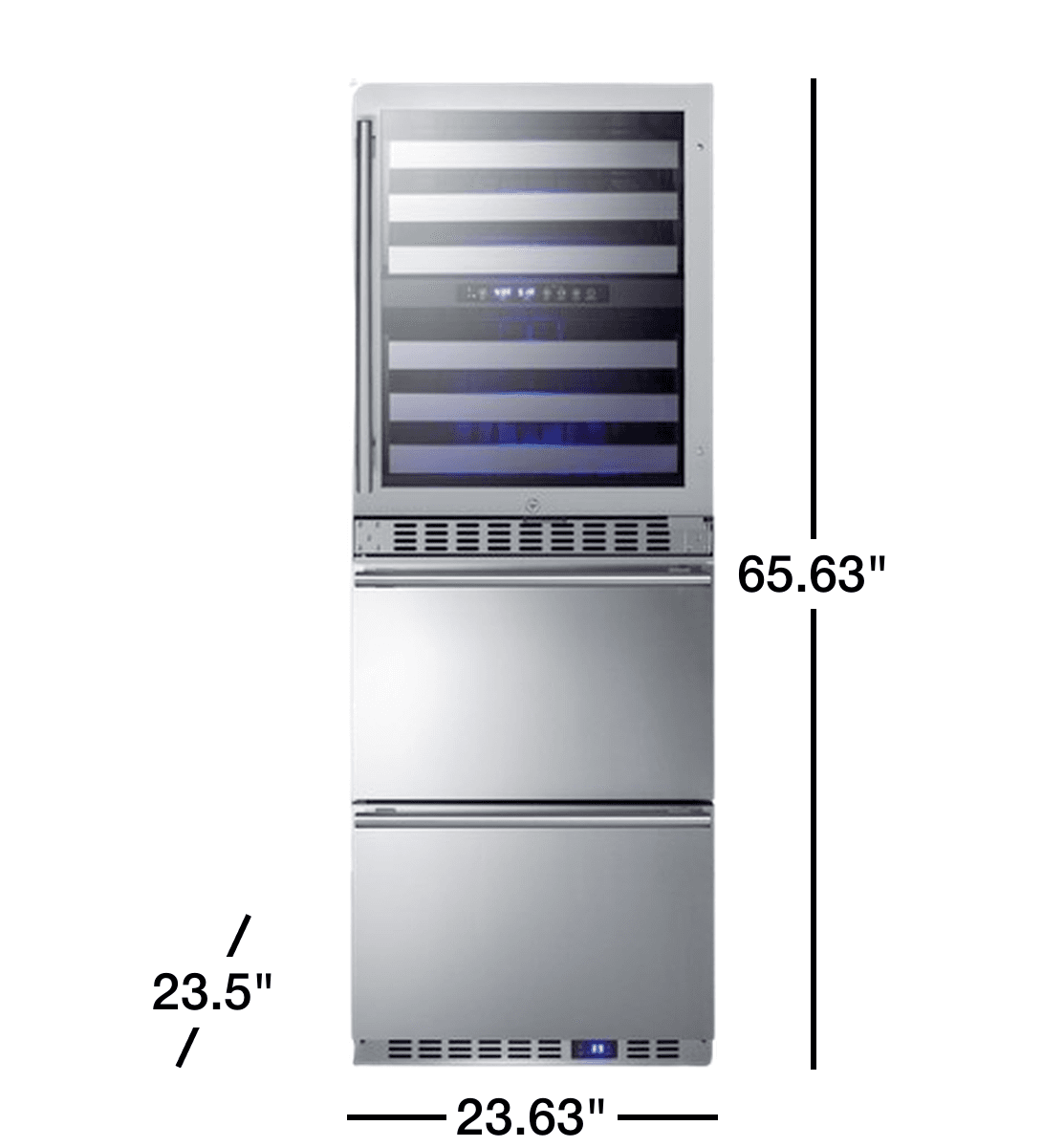

Height of Cabinet	65.63" (167 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	45.75" (116 cm)
Capacity	3.4 cu.ft. (96 L)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/SS
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	275.0kWh/year
Other Energy Info	ALWC532: 1.25Ams; FF642D: 0.8 Amps
Amps	2.05
Voltage/Frequency	115 V AC/60 Hz
Weight	229.0 lbs. (104 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082806
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Interior Height 1	11.88" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Interior Height - Drawer 1	9.25" (23 cm)
Interior Width - Drawer 1	17.25" (44 cm)
Interior Depth - Drawer 1	15.5" (39 cm)
Interior Height - Drawer 2	10.0" (25 cm)
Interior Width - Drawer 2	17.25" (44 cm)
Interior Depth - Drawer 2	15.5" (39 cm)
Temperature Range	ALWC532: 41°F to 64°F; FF642D: 36°F to 43°F
Interior Height 2	11.63" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)
