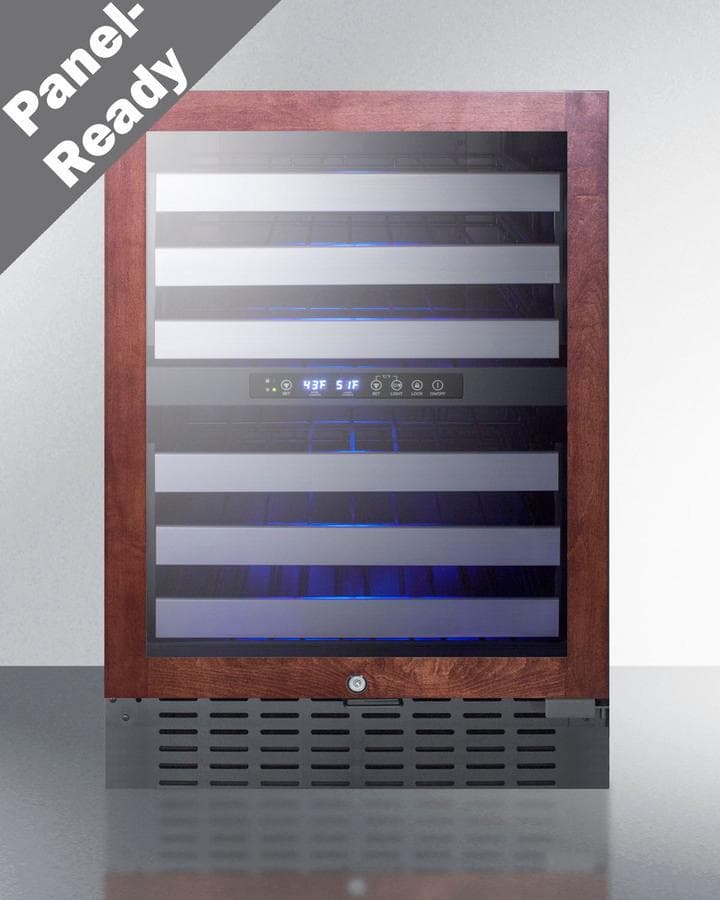

Summit's extensive selection of built-in undercounter wine cellars includes elegant choices designed to achieve a custom look for any space. The SWC532BLBISTPNR is a dual-zone wine cellar sized for 24" spaces. The front-breathing design allows for built-in installation, while the fully finished black cabinet also enables freestanding use. The double-pane tempered glass door features a seamless stainless steel trim that accepts overlay panels, allowing you to match the wine cellar to your own cabinetry. Users provide their own handles to complete the custom look. A factory-installed lock offers added security, and a stainless steel kickplate completes the appearance. This unit ships with a right-hand door swing; if you require the door to open from the other side, add the "LHD" option.
Highlights
-
24" Dual Zone Wine Cellar: Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones.
-
Built-In Capable: Front-breathing design allows this unit to be installed under counters.
-
Panel-Ready Door Trim: The door frame can be customized with an overlay panel to match your cabinetry style (panel size: 27 5/8" H x 23" W x 3/4" thick).
-
Advanced Shelving: Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving.
-
Full-Extension Shelving: Shelves move smoothly on ball-bearing glides for easier loading and unloading.
-
Two Temperature Zones: The lower zone for reds has a temperature range of 50º F to 64º F; the upper zone stores whites and sparkling wines between 41º F and 50º F.
-
Digital Control Panel: Easy temperature management with electronic controls located inside.
-
Versatile Readout: Temperature can be viewed in Celsius or Fahrenheit.
-
Automatic Defrost: Reduced maintenance with an auto defrost system.
-
Double Pane Tempered Glass Door: Provides a full display of the interior with two levels of glass for added protection.
-
Interior Lighting: Recessed LED lighting in both compartments provides striking blue illumination for your collection.
-
Factory Installed Lock: Keyed lock for a secure interior, with two keys included.
-
Factory-Reversible Door Swing: The unit ships with a right-hand door swing; for a left-hand door swing, order with the option "LHD".
-
Fully Finished Black Cabinet: Allows the unit to be used freestanding.
-
Matching Beverage Center Available: Pairs perfectly with the SCR2466BPNR.
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals.
-
CARB Compliant: Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations.
- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- Front-breathing design allows this unit to be installed under counters
- Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
- Easy temperature management with electronic controls located inside
- Temperature viewable in Celsius or Fahrenheit
- Reduced maintenance with auto defrost system
- Provides a full display of the interior, with two levels of glass for added protection
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Keyed lock for secure interior, with two keys included
- Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
- Allows the unit to be used freestanding
- Pairs perfectly with the SCR2466BPNR
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit's extensive selection of built-in undercounter wine cellars includes elegant choices that let you achieve a custom look ideal for any space. The SWC532BLBISTPNR is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The double pane tempered glass door features a seamless stainless steel trim designed to accept overlay panels, allowing you to match the wine cellar to your own cabinetry. Users provide their own handle to complete the custom look. A factory-installed lock offers added security and a stainless steel kickplate completes the look. This unit ships with a right hand door swing. If you require the door to open from the other side, add option "LHD." Inside, the SWC532BLBISTPNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50 F for white wine, while the lower zone is designed to store red wine between 50 and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. With its advanced user features and versatile design, the SWC532BLBISTPNR makes a great addition to any setting looking to store wine in modern style. This unit can be paired with the SCR2466BPNR beverage cooler for a matching set.

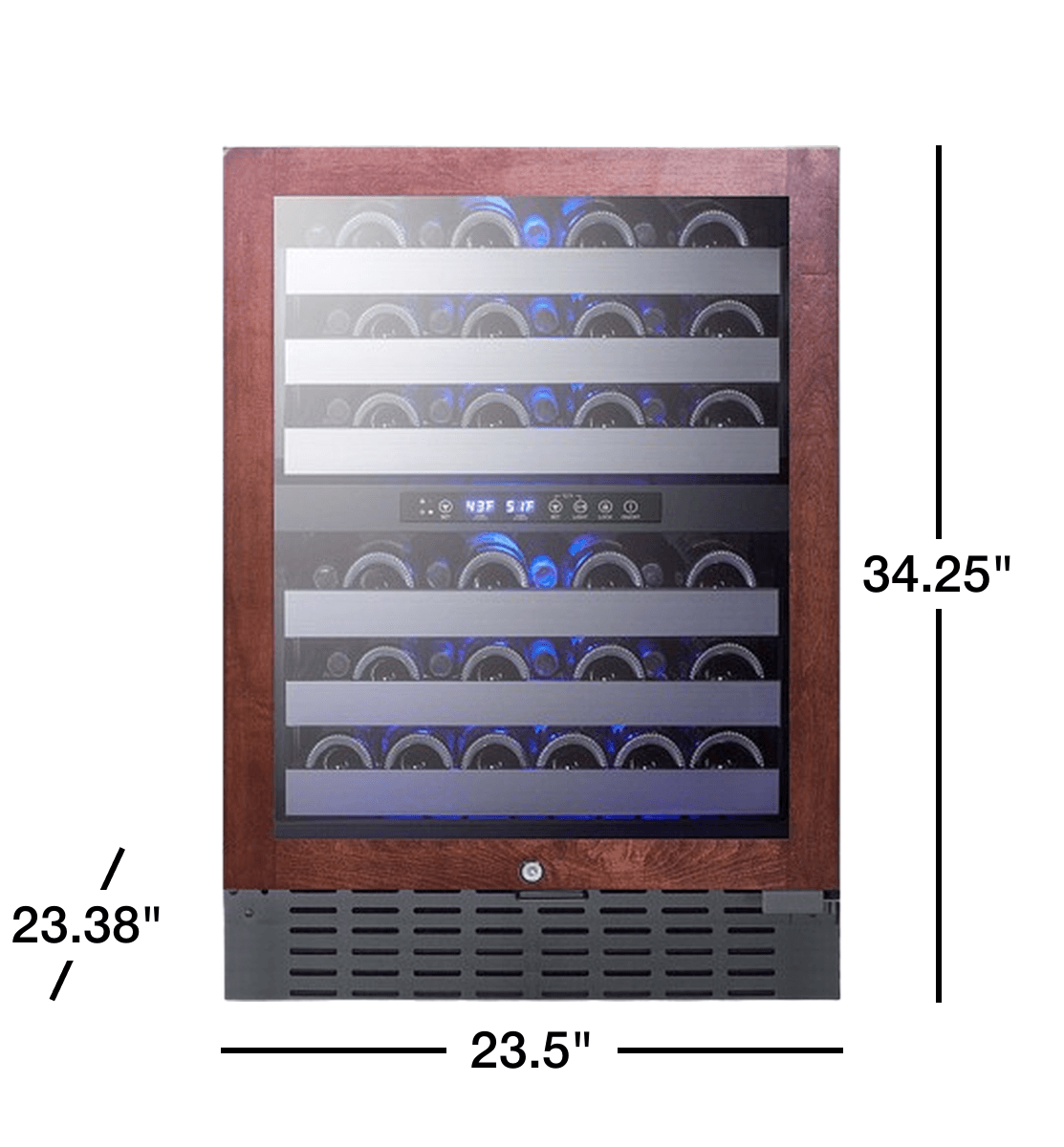

Height of Cabinet |
34.25" (87 cm) |
Width |
23.5" (60 cm) |
Depth |
23.38" (59 cm) |
Depth with door at 90° |
45.75" (116 cm) |
Bottles |
46 bottles |
Defrost Type |
Automatic |
Door |
Glass/Panel-Ready Frame |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Amps |
1.25 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
113.0 lbs. (51 kg) |
Shipping Weight |
175.5 lbs. (80 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101067094 |
Number of Zones |
2 |
Door Swing |
RHD |
Reversible |
Factory Reversible |
Shelf Type |
Wire |
Shelf Qty |
6 |
Thermostat Type |
Digital |
Interior Light |
Yes |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.23 oz. |
High Side PSI |
150.0 |
Low Side PSI |
50.0 |
Interior Height 1 |
11.63" (30 cm) |
Interior Width 1 |
20.5" (52 cm) |
Interior Depth 1 |
18.0" (46 cm) |
Compressor Step Depth |
6.0" (15 cm) |
Level Legs |
2 |
Temperature Range |
41 to 64 F |
Interior Height 2 |
11.88" (30 cm) |
Interior Width 2 |
20.5" (52 cm) |
Interior Depth 2 |
18.0" (46 cm) |
