SUMMIT 24 Inch Built-In Dual Zone Beverage Center with 17 Bottles/5.1 cu. ft. Capacity, Wooden & Glass Shelves, LED Lighting

• Make the best use of space by installing your appliance under the counter
• Store beverages in the left section with a temperature range of 36-43(degree)F and wine in the right section with a temperature range of 41-68(degree)F
• Keyed lock for each section ensure a secure interior
• Electronic controls for precise temperature management
• Temperature readout can be shown in Celsius or Fahrenheit
• Five wooden shelves with a black finish feature stainless steel trim for an added touch of elegance
• Wine compartment can hold up to 17 standard 750ml Bordeaux or Burgundy style bottles (3 on each shelf and 2 on the slotted bottom)
• Three slide-out shelves offer attractive and convenient storage for beverages
• Two vertically mounted handles in brushed stainless steel for added elegance
• Completes the professional look down to the toe kick
• Audibly alerts if the interior temperature rises or falls out of the recommended storage range
• Audible alarm will sound if the door is left ajar
• Internal fans in each section ensure the interior is evenly cooled from top to bottom
• Reduced maintenance and steady temperature performance
• Space saving design with easier cleanability
• Optional setting lets you disable the lighting and alarms during periods of religious observance
• Unit will retain its last settings when power is restored in the event of power loss
• Allows the unit to be used freestanding
• Bracket (included) helps prevent tipping for added safety
• Meets UL-471
• Environmentally friendly design with no ozone-damaging chemicals

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home. The CLFD243WBV is an undercounter wine and beverage center with two independent temperature zones. Two glass doors feature a French opening design, providing a dramatic presentation for your collection. Seamless stainless steel trim blends into the glass, while pro-style handles and a designer kickplate complete the modern look. The front-breathing design allows the CLFD243WBV to be built-in under counters, while the fully finished black cabinet also enables freestanding use. At just under 24" wide and deep, this unit is perfectly sized to fit common wet bar cutouts. The sealed back adds to the easy cleanability. Inside, the CLFD243WBV features two zones for the proper storage of wine and beverages. The left zone includes three adjustable glass shelves for spill-proof convenience. The right zone contains five wooden shelves in a black finish, each with stainless steel trim for an elegant look. The wine section can accommodate up to 17 Bordeaux or Burgundy style bottles. The interior digital control panel includes a digital thermostat for easy and intuitive operation, with a readout in Celsius or Fahrenheit. White LED lighting in each section offers an elegant yet energy-efficient accent in the jet black interior. Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Two level legs help to balance the unit on uneven surfaces. Fully featured for user convenience and beautifully styled for the home, the CLFD243WBV offers the perfect storage solution for under the counter. Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Overview

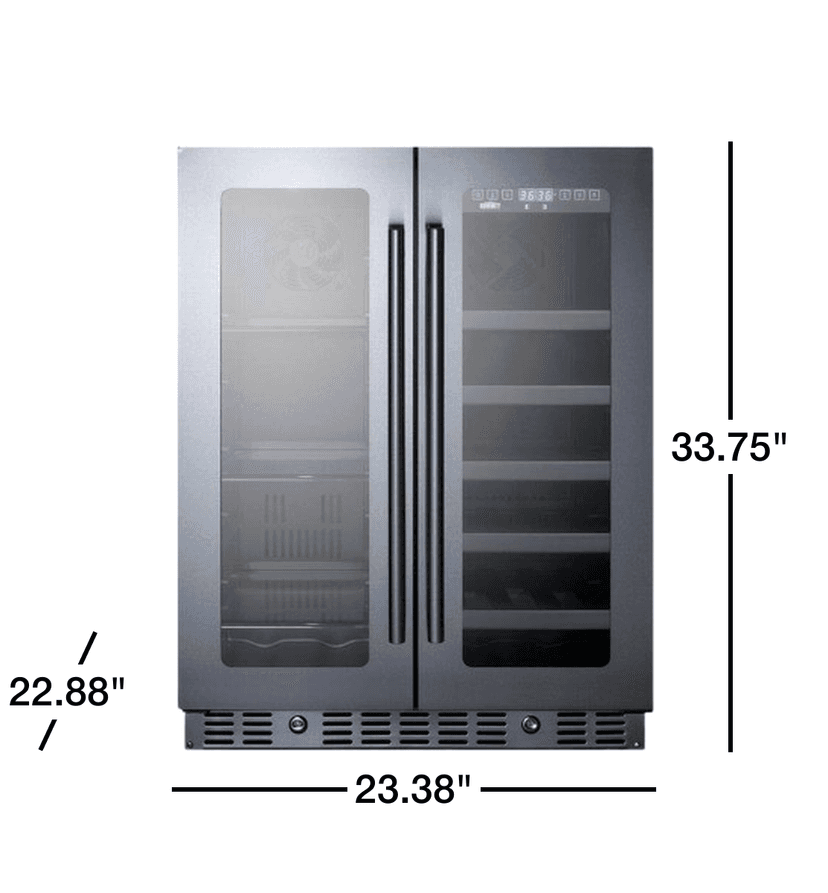

Height of Cabinet	33.75" (86 cm)
Width	23.38" (59 cm)
Depth	22.88" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	35.25" (90 cm)
Capacity	5.1 cu.ft. (144 L)
Bottles	17 bottles
Defrost Type	Automatic
Door	Glass/SS
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	400.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	108.0 lbs. (49 kg)
Shipping Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101058511
Wine Cellar
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Glass and Wood
Shelf Qty	8
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	25.25" (64 cm)
Interior Width 1	8.38" (21 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	4.38" (11 cm)
Compressor Step Width	8.38" (21 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Temperature Range	36-43°F (left zone); 41-68°F (right zone)
Interior Height 2	25.25" (64 cm)
Interior Width 2	8.38" (21 cm)
Interior Depth 2	17.5" (44 cm)
Sabbath Mode	Yes
