SUMMIT 24" Wide Built-in Refrigerator-freezer with Cycle Defrost, Adjustable Glass Shelves - Black

• Make the best use of space by installing your refrigerator under the counter and flush with other cabinets
• Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
• This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Store tall bottles and condiments right on the door for convenient access
• Removable scalloped wine shelf is included to store champagne and wine bottles
• Get the longest life and best taste out of produce by storing it in a convenient slide drawer
• Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Automatically illuminates when you open the door
• User-reversible door swing for added flexibility
• Dial thermostat located inside for easy temperature management
• Allows the unit to be used freestanding
• Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
• Environmentally friendly design without ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT brings quality and value under the counter with the industry s largest collection of built-in refrigeration. The CT663BBI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen. Sized with a 24 footprint, CT663BKBI refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit comes in a black exterior finish with a stainless steel handle. The user-reversible offers added flexibility. Inside, the CT663BKBI features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. With its ideal dimensions and user-friendly features, the CT663BKBI is the perfect refrigerator-freezer for any home in need of versatile storage under the counter.

Overview

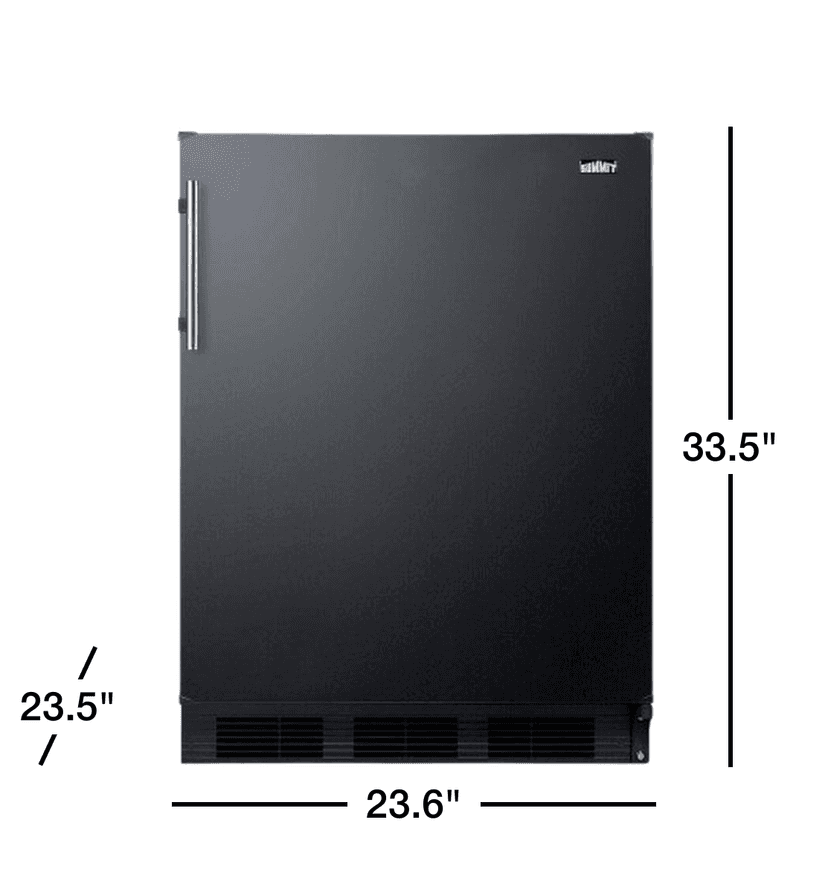

Height of Cabinet	33.25" (84 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Black
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	365.0kWh/year
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101068503
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Wine Bottle Shelving	Yes
Interior Light	Yes
Refrigerator - Interior Height	18.0" (46 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	18.0" (46 cm)
Refrigerator - Capacity	4.5 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.25" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Freezer - Capacity	0.6 cu.ft
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	4
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
