SUMMIT 24" Wide Built-in Cold Brew/Nitro Coffee Kegerator (panel Not Included)

• 5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs
• Unique combination stout and standard tap system allows you to serve both flat iced cold brew and nitro drafts
• Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)
• ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings
• Solid 304 grade stainless steel construction allows placement in the outdoors
• Front-breathing design allows fully recessed installation under counters
• Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap, Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
• Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
• Reduced user maintenance with auto defrost operation
• Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
• Interior tube allows you to extend the cold air flow up into draft tower, ensuring coffee freshly tapped stays chilled
• Interior includes steel cover to protect the floor when loading kegs
• Attractive chrome guard rail helps to reduce spills and neaten service
• Removable two-piece drip tray catches spills to help contain the mess
• 2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
• Recovers the unit's last settings in the case of a power outage or disruption
• Four casters (two locking) afford easy portability
• Allows the dispenser to be used freestanding
• Space saving design with easier cleanability
• Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"
• Environmentally friendly design without ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures a complete line of versatile built-in kegerators designed for indoor/outdoor use in commercial or residential settings. The SBC682PNRCMTWIN is a full-sized kegerator designed to serve nitro cold brew coffee on tap. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications but is also approved for residential use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements. Inside, the SBC682PNRCMTWIN has a 5.6 cu.ft. interior that can hold a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set easily manage the unit temperature, with a wide range between 34(degree)F to 68(degree)F to accommodate a variety of brews, with a readout in Fahrenheit or Celsius for added convenience. We include a complete tap kit for dispensing nitro coffee, including a Sankey tap system and dual tap stout-style draft tower, along with a Nitrogen tank and regulator. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. Automatic defrost operation ensures minimal user maintenance. A tap cool system keeps your coffee cold as it goes through your tower, and a Velcro strap holds the tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC682PNRCMTWIN is the perfect cold brew dispenser for indoor or outdoor commercial and residential applications. Additional choices are available with alternate tapping options, including choices to dispense wine and beer. Browse the full Summit line to explore all of your options.

Overview

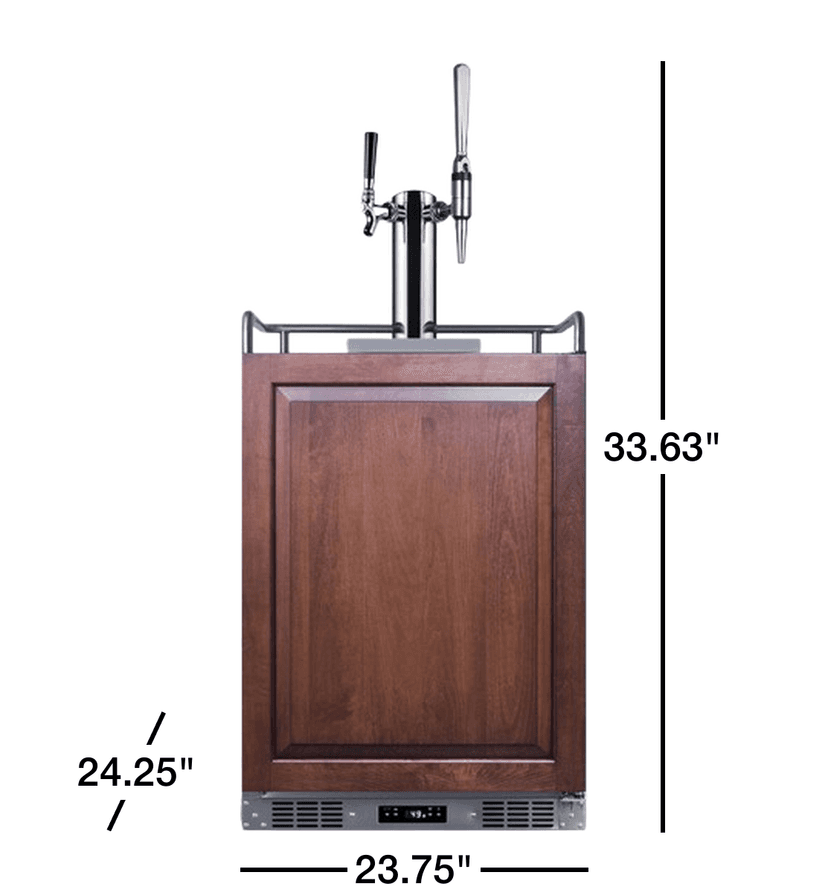

Height of Cabinet	33.63" (85 cm)
Width	23.75" (60 cm)
Depth	24.25" (62 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	305.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Shipping Weight	156.0 lbs. (71 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087474
Kegerator
Door Swing	RHD
Reversible	Reversible w/ Optional Hinge
Tap Kit	Yes
Height with Tap	51.5" (131 cm)
Number of Taps	2
Adjustable Shelves	Yes
Shelf Type	Chrome
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Inter Height	26.75" (68 cm)
Interior Width	20.0" (51 cm)
Interior Depth	19.0" (48 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	34°F to 68°F (1°C to 20°C)
Sound Level	34.0 db
