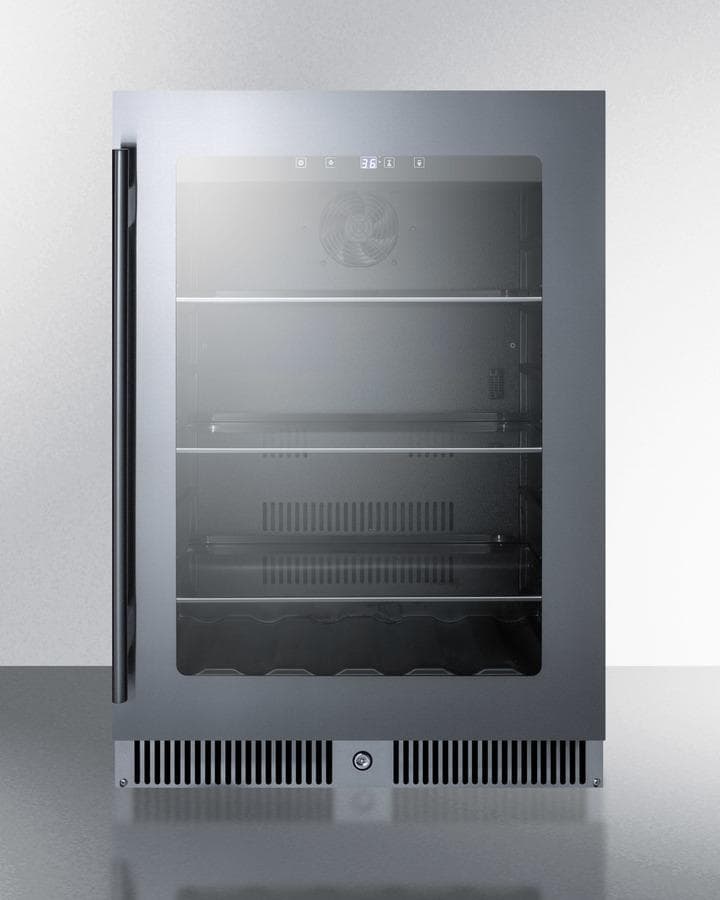

SUMMIT 24" Wide Built-in Beverage Center with LED Lighting, Digital Thermostat, Open Door Alarm, Sabbath Mode, Factory Installed Lock, and ETL-S Listed: Right Hinge

• ETL-S listed to NSF-7 Standards for use in commercial establishments
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Provides a fully display of stored contents
• Single-piece door trim offers a more deluxe look
• Keyed lock for a secure interior (2 keys included)
• Stainless steel look for added elegance
• Electronic controls for precise temperature management
• Temperature readout can be shown in Celsius or Fahrenheit
• Elegant lighting with a convenient on/off switch on the control panel
• Three slide-out shelves offer attractive and convenient storage for beverages
• No-frost operation for minimum user maintenance
• Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Audible alarm will sound if the door is left open longer than one minute
• High temperature alarm sounds if the unit's interior goes out of the recommended range
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Unit will retain its last settings when power is restored in the event of power loss
• Space-saving design that offers easier cleanability
• Allows the unit to be used freestanding
• This unit comes with a right-hand door swing. (Note: the door is not user reversible; for a left hand version, see the CL24BVLHD)
• Bracket (included) helps prevent tipping for added safety
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home. The CL24BV is a 24" wide beverage center designed for residential or commercial use. Its front-breathing design allows for built-in installation, while the fully finished jet black cabinet allows freestanding use. The glass door features an attractive seamless stainless steel trim and pro-style handle, while a designer kickplate completes the look and a factory-installed lock offers added security. This unit has a right-hand door swing. For a left hand version, see the CL24BVLHD. This unit can be paired with the matching CL244WC/LHD wine cellar to create a side-by-side set. Inside, the CL24BV includes three adjustable slide-out glass shelves to accommodate a variety of sizes. Automatic defrost operation offers low-maintenance operation, with fan-forced cooling to ensure even temperature distribution from top to bottom. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout in Celsius or Fahrenheit. White LED lighting helps to attractively illuminate the black interior for an attractive view to store and display your items. Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Two level legs help to balance the unit on uneven surfaces. The CL24BV is ETL-S listed to NSF-7 commercial standards and meets UL-471. It also complies with current Department of Energy standards for residential use. With its convenient size and user-friendly features, this is the perfect choice for residential or commercial settings looking for versatile storage under the counter. Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Overview

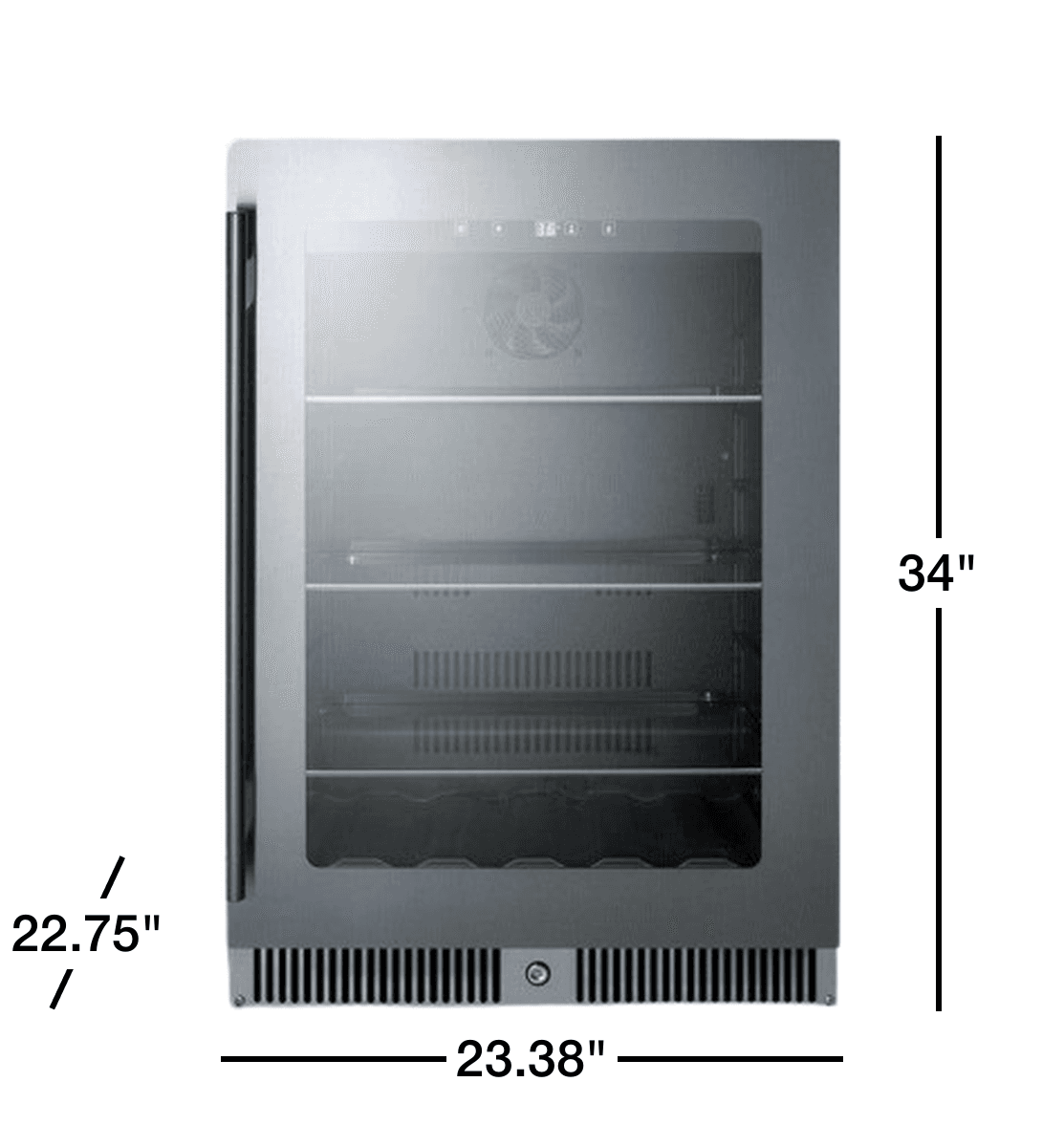

Height of Cabinet	34.0" (86 cm)
Width	23.38" (59 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	5.0 cu.ft. (142 L)
Defrost Type	Automatic
Door	Glass/SS
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	270.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	117.0 lbs. (53 kg)
Shipping Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101058535
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Can Storage	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	36-43°F
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.0" (13 cm)
