SUMMIT 24" Wide Built-in Beverage Center, ADA Compliant in Stainless Steel

• 3.25 cu.ft. interior for residential or commercial cold storage
• Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
• 32" height allows easy installation under lower ADA compliant counters
• Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Walls and floor are constructed from stainless steel for added strength and easy cleanup
• Elegant design offers a clear but protected view of your interior
• Glass is framed by with a flush one-piece stainless steel trim for an elevated look
• Keyed lock for a secure interior (2 keys included)
• Stainless steel handle completes the look
• Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
• Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
• No-frost operation for minimum user maintenance
• Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
• Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
• Audible alarm will sound if the door is left open longer than one minute
• High temperature alarm sounds if the unit's interior goes out of the recommended range
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Unit will retain its last settings when power is restored in the event of power loss
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Space-saving design with no exposed coils that offers easier cleanability
• Flat hinge ensures no added height is needed when installing under a counter
• User-reversible door swing for added flexibility
• Allows the unit to be used freestanding
• ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDG2411 is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock. Inside, the ASDG2411 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Commercial grade cantilevered shelving in chrome offers flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDG2411 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

Overview

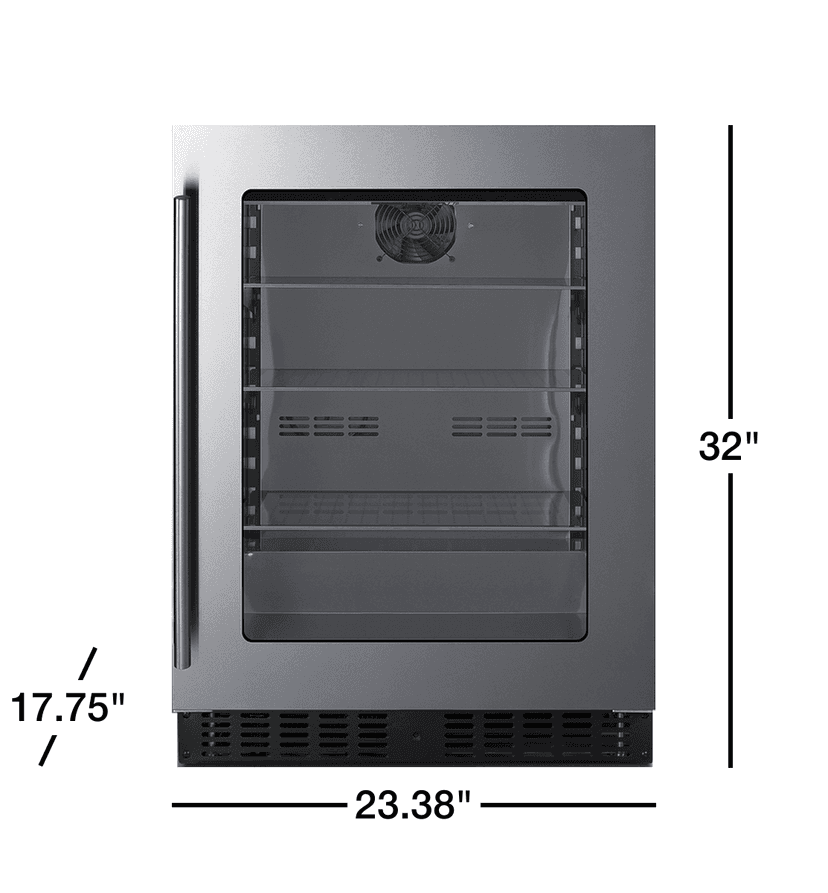

Height of Cabinet	32.0" (81 cm)
Width	23.38" (59 cm)
Depth	17.75" (45 cm)
Depth with Handle	19.63" (50 cm)
Depth with door at 90°	39.88" (101 cm)
Capacity	3.25 cu.ft. (92 L)
Defrost Type	Frost-Free
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	285.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Shipping Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079455
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Shelf Type	Chrome
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43 F
Sound Level	33.1 dB
Dimensions
Interior Height	24.5" (62 cm)
Interior Width	19.5" (50 cm)
Interior Depth	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.5" (50 cm)
Compressor Step Depth	4.5" (11 cm)
