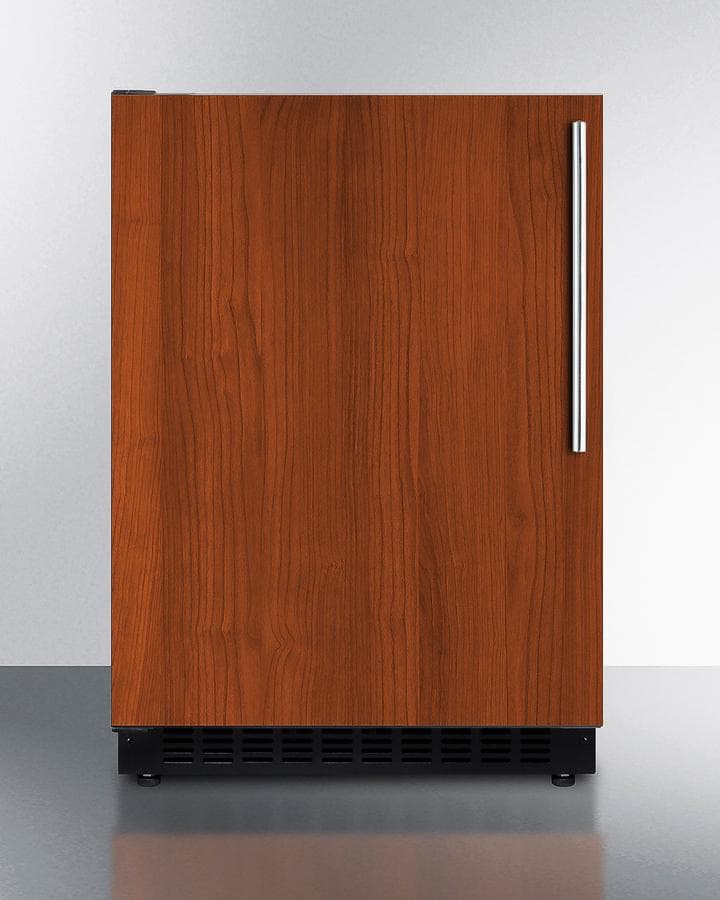

SUMMIT 24" Wide Built-in All-refrigerator, ADA Compliant, Adjustable Glass Shelves (panel Not Included)

The SUMMIT 24" Wide Built-in All-refrigerator, ADA Compliant, Adjustable Glass Shelves (Panel Not Included) AL54IFLHDLHD, is available at Airport Appliance. The AL54IFLHD refrigerator is designed with convenience and versatility in mind, featuring a compact 24" footprint and a height of just 32" to easily fit under lower counters, meeting ADA guidelines for accessibility. Whether used as a freestanding unit or built-in with minimal clearance, its fully finished black cabinet and front-breathing system ensure seamless integration into any space.

Highlights

• ADA-Compliant Design: With a 32" height, the AL54IFLHD meets ADA guidelines, allowing for easy installation under lower counters.

• Built-in Capable: Its front-breathing design enables built-in installation, maximizing space utilization while maintaining efficient operation.

• Panel-Ready Door: The European-style articulating door hinge allows the door to accept full panel overlays, seamlessly blending the unit into cabinetry designs.

• Frost-Free Operation: The AL54IFLHD utilizes frost-free operation with fan-forced cooling, ensuring low maintenance and even temperature distribution.

• Digital Thermostat: Precise temperature management is made easy with the electronic controls located inside the unit.

• Recessed LED Lighting: Efficient LED lighting illuminates the interior, providing an attractive yet energy-efficient presentation.

• Adjustable Glass Shelves: Flexible and spill-proof storage is offered by adjustable glass shelves, catering to various storage needs.

• Door Storage: Two large door racks provide convenient storage for condiments and bottles, maximizing storage capacity.

• Bottle Slots: A specially slotted floor ensures secure storage of wine and other bottles, preventing them from rolling around.

• Internal Fan: Fan-forced cooling ensures an even distribution of cool air throughout the unit, preserving the freshness of stored items.

• Open Door Alarm: An audible alarm alerts users if the door is left open for longer than one minute, promoting energy efficiency and food safety.

• High-Temperature Alarm: Alerts users if the unit's interior temperature exceeds the recommended range, safeguarding stored items.

• Sabbath Mode Setting: Optional setting disables lighting and alarm functions during periods of observance, accommodating religious practices.

• Sealed Back and Right Angle Plug: Space-saving design with a sealed back ensures easier cleaning, while the right angle plug allows flush installation against the wall.

• Matching Freezer: Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter.

• Commercially Approved: ETL-S listed to NSF-7 Standards, suitable for use in commercial establishments.

• Environmentally Friendly: 100% CFC Free and CARB Compliant, featuring an eco-friendly refrigerant for a greener footprint.

• 32" height allows easy installation under lower ADA compliant counters
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
• No-frost operation for minimum user maintenance
• Electronic controls located inside the unit for precise temperature management
• Efficient and attractive presentation with LED lighting
• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
• Two door racks offer convenient storage for condiments and bottles
• Floor is specially slotted to store wine and other bottles safely in place
• Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Audible alarm will sound if the door is left open longer than one minute
• High temperature alarm sounds if the unit's interior goes out of the recommended range
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Unit will retain its last settings when power is restored in the event of power loss
• Space-saving design that offers easier cleanability
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
• ETL-S listed to NSF-7 Standards for use in commercial establishments
• Allows the unit to be used freestanding
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle cord for a better fit. It ships with a left hand door swing. Inside, the AL54IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL54IFLHD refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Overview

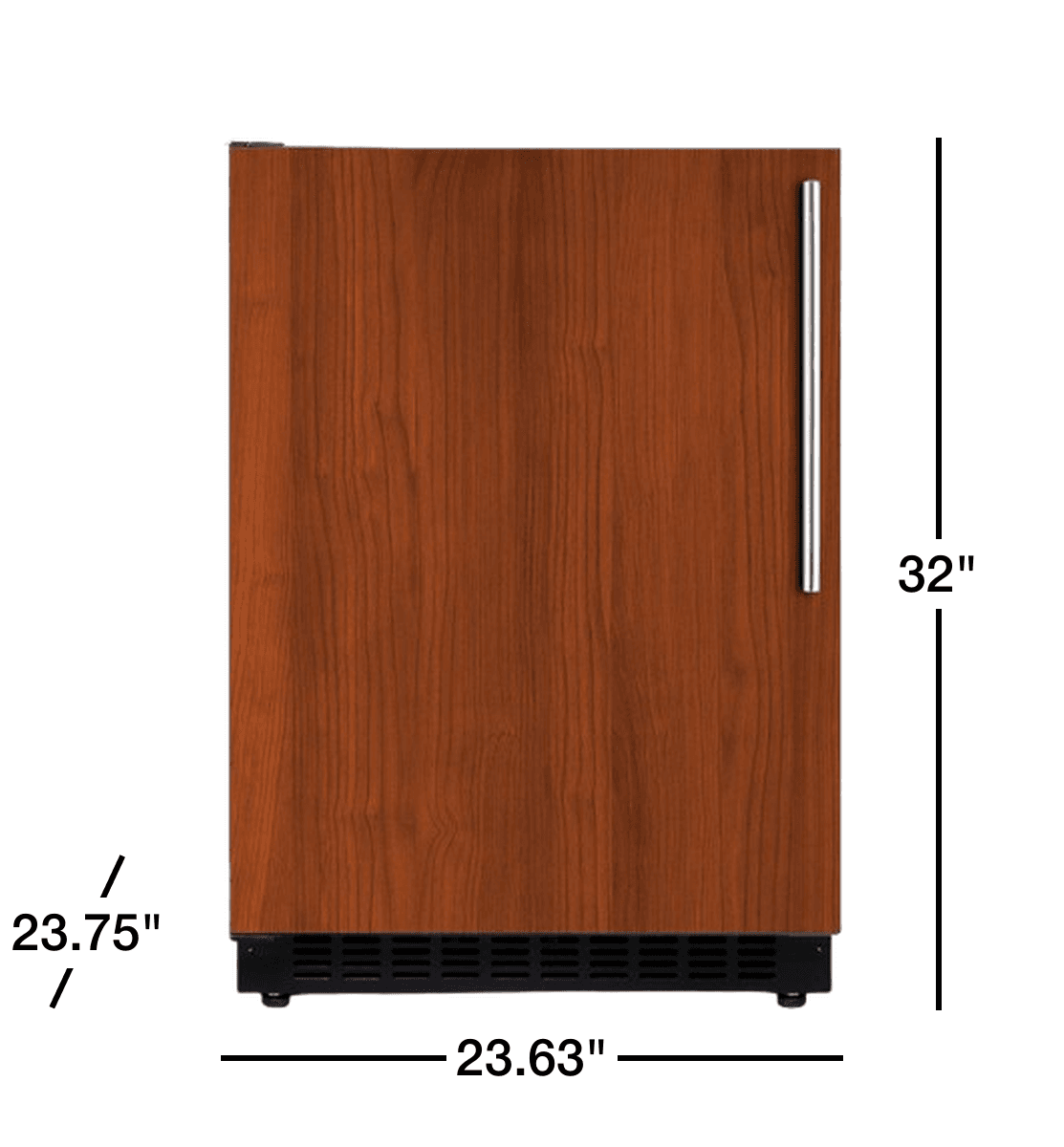

Height of Cabinet	32.0" (81 cm)
Width	23.38" (59 cm)
Depth	22.63" (57 cm)
Capacity	4.8 cu.ft. (136 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	270.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101091143
Refrigerator Features
Sabbath Mode	Yes
Door Swing	LHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43 F
Sound Level	33.3dB
Dimensions
Interior Height	25.0" (64 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.25" (13 cm)
