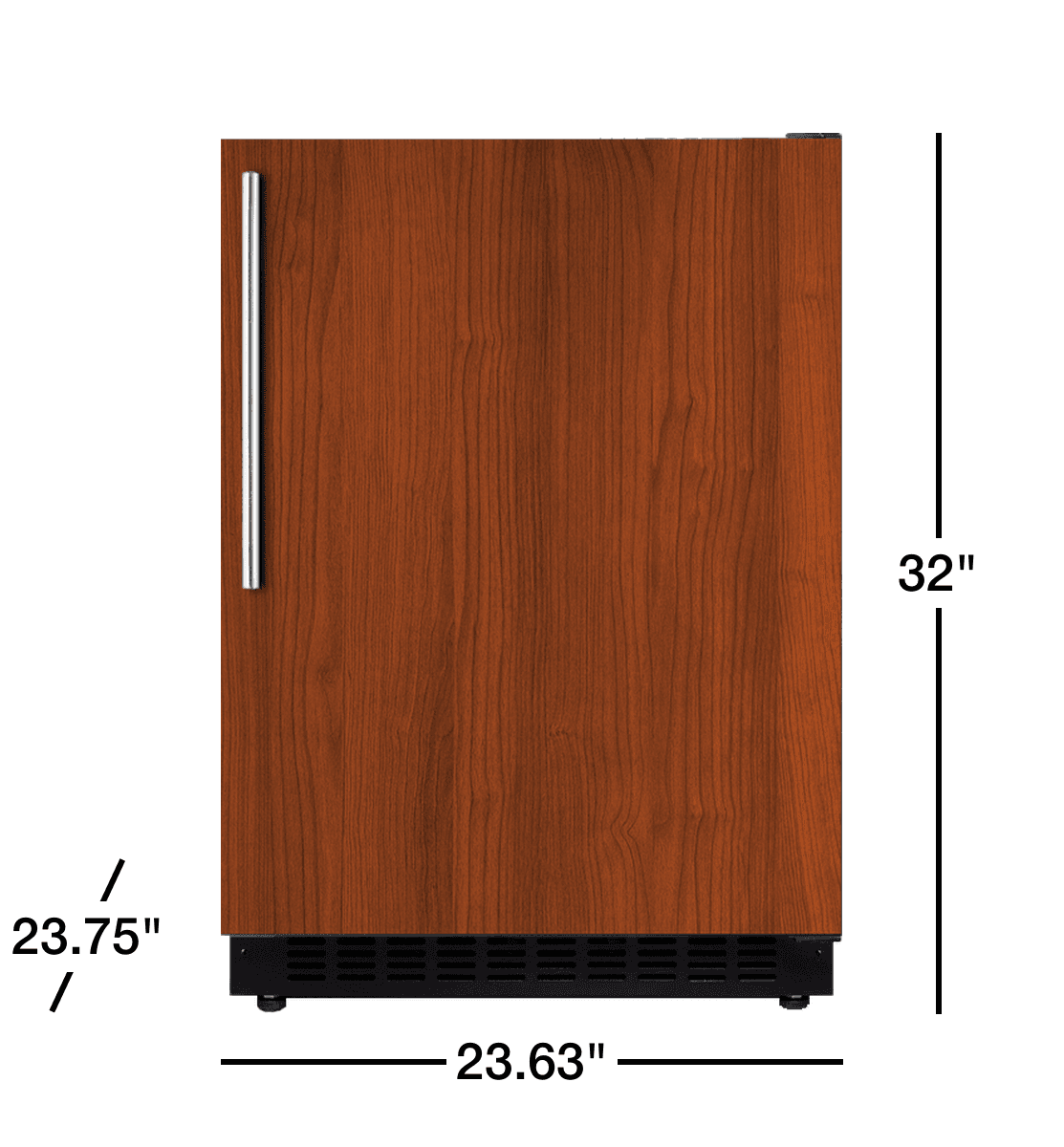

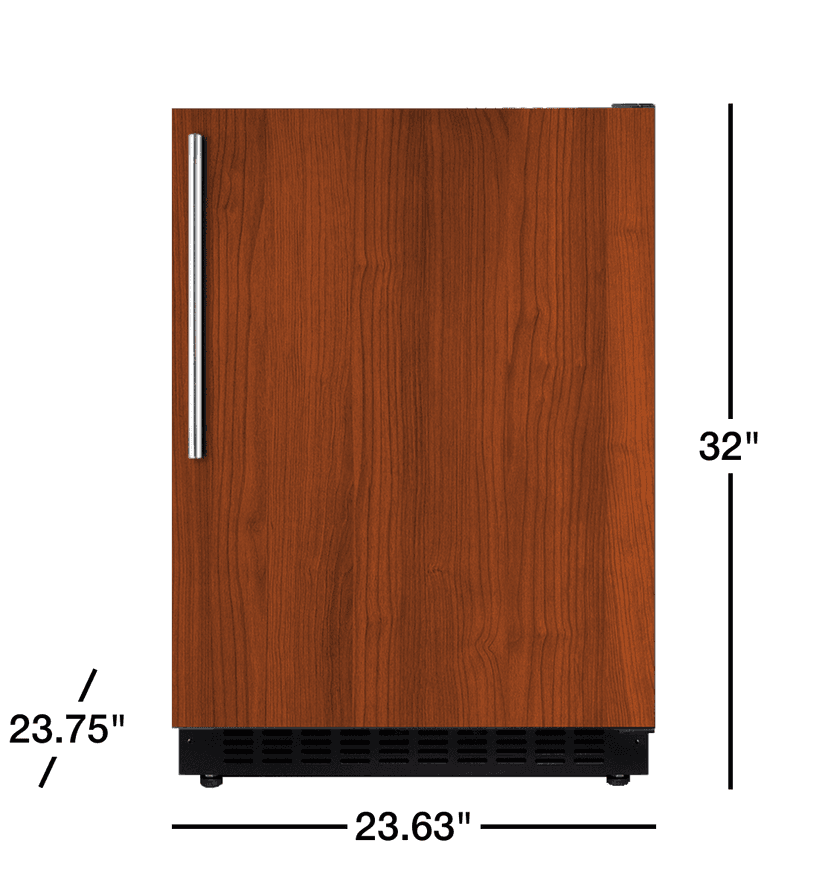

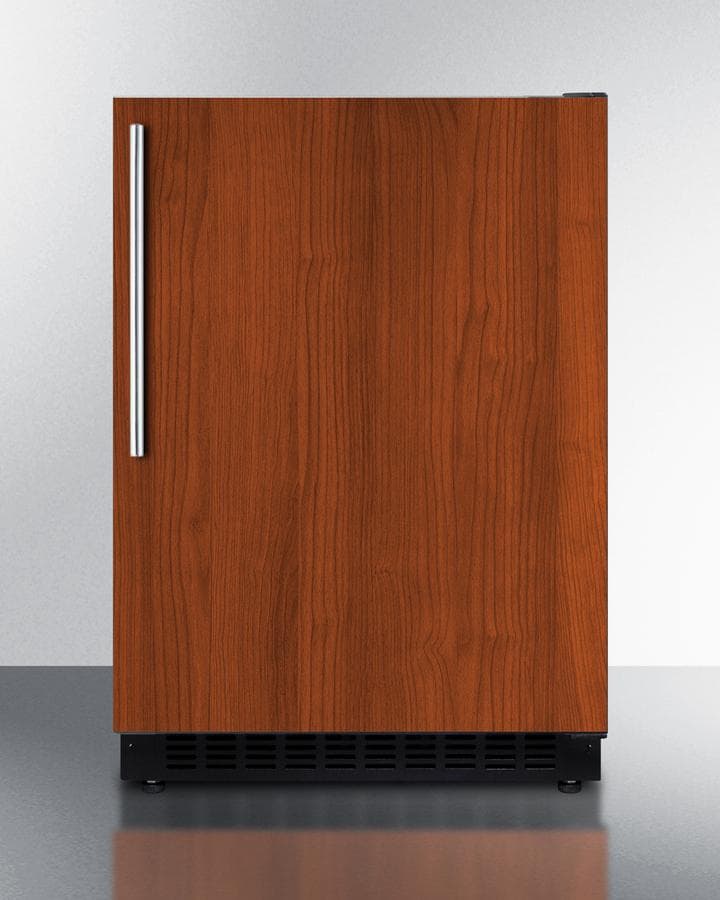

SUMMIT 24" Built-in Panel-Ready All-refrigerator with Internal Fan and ADA Compliant

Elevate your kitchen or commercial space with the SUMMIT 24" Built-in Panel-Ready All-Refrigerator, model AL54IF, available at Airport Appliance. This versatile refrigerator is designed to integrate seamlessly into any setting thanks to its panel-ready front, allowing you to attach custom cabinetry that complements your existing décor. This feature makes it an excellent choice for those seeking a unified look in their kitchen or bar area. The AL54IF is not only about aesthetics; it is highly functional and adaptable. Certified ADA compliant, it meets the needs for accessibility in various environments, ensuring convenience for all users. Equipped with an internal fan, the refrigerator ensures even cooling throughout the cabinet, maintaining consistent temperatures and optimal storage conditions for a wide variety of foods and beverages. The unit’s design includes a front-breathing system for built-in installation, but it also functions perfectly as a freestanding fridge, providing flexibility depending on your spatial requirements.

Highlights

• Panel-Ready Design: Allows the refrigerator to be customized with cabinet panels to match your cabinetry, creating a seamless look in any kitchen or bar setting.

• ADA Compliant: Meets accessibility standards, making it ideal for various public and private spaces that adhere to these requirements.

• Internal Fan: Ensures even temperature distribution throughout the unit, preventing hot spots and cold spots for reliable food preservation.

• Built-In or Freestanding: Designed for versatility with a front-breathing system that allows for both built-in and freestanding installations.

• Digital Thermostat: Provides precise temperature control, accessible via an easy-to-use electronic interface.

• Adjustable Glass Shelves: Includes three slide-out glass shelves that can be rearranged to accommodate items of different sizes.

• Frost-Free Operation: Automatic defrost function prevents ice buildup, reducing maintenance and keeping the unit running efficiently.

• LED Lighting: Offers energy-efficient illumination of the refrigerator’s interior, enhancing visibility without contributing to heat inside the unit.

• Reversible Door: The door can be configured to open from the left or right, offering added flexibility in placement within any design layout.

• Large Capacity: Provides ample space with 4.8 cu. ft. of storage, ideal for storing everything from large beverage bottles to perishable foods.

• 32" height allows easy installation under lower ADA compliant counters
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
• No-frost operation for minimum user maintenance
• Electronic controls located inside the unit for precise temperature management
• Efficient and attractive presentation with LED lighting
• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
• Two door racks offer convenient storage for condiments and bottles
• Floor is specially slotted to store wine and other bottles safely in place
• Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Audible alarm will sound if the door is left open longer than one minute
• High temperature alarm sounds if the unit's interior goes out of the recommended range
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Unit will retain its last settings when power is restored in the event of power loss
• Space-saving design that offers easier cleanability
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
• ETL-S listed to NSF-7 Standards for use in commercial establishments
• Allows the unit to be used freestanding
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28 3/16" H x 23 5/16" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle cord. Inside, the AL54IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL54IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.75" (60 cm)
Capacity	4.8 cu.ft. (136 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	250.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101053998
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43 F
Sound Level	33.3dB
Dimensions
Interior Height	25.0" (64 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.25" (13 cm)
