SUMMIT's AL54LHD is a part of the AL54 series, offering built-in undercounter all-refrigerators tailored for installation under lower ADA compliant counters. With advanced features and a sleek design, this refrigerator ensures user convenience and accessibility.
Highlights
-
ADA Compliant Design: Measuring 32" in height, it easily fits under lower ADA compliant counters, ensuring accessibility for all users.
-
Built-in Capable: Front-breathing design maximizes space utilization by allowing installation under the counter, optimizing kitchen layout.
-
Stainless Steel Door: Durable construction with a professional look, enhancing the aesthetic appeal of the unit.
-
Factory Installed Lock: Keyed lock provides added security, ensuring the safety of stored items.
-
Professional Handle: Features a full-length pro handle in chrome, adding to the unit's sleek appearance.
-
Frost-Free Operation: Enjoy hassle-free maintenance with the unit's no-frost operation, minimizing manual defrosting.
-
Digital Thermostat: Electronic controls inside the unit enable precise temperature management for optimal cooling performance.
-
Recessed LED Light: Efficient LED lighting offers an attractive presentation of stored items while conserving energy.
-
Adjustable Glass Shelves: Rearrange refrigerator space to accommodate items of various sizes or remove shelves for easy cleaning.
-
Door Storage: Two door racks offer convenient storage for condiments and bottles, maximizing storage efficiency.
-
Bottle Slots: Specially slotted floor securely stores wine and other bottles, preventing tipping or rolling.
-
Internal Fan: Fan-forced cooling ensures uniform temperature distribution from top to bottom, preserving food freshness.
-
Left Hand Door Swing: Designed with a left-hand door swing for convenient accessibility. (For the opposite door swing, see model AL54)
-
Open Door Alarm: Audible alarm alerts if the door is left open for longer than one minute, preventing energy waste.
-
High Temperature Alarm: Ensures food safety by alerting if the unit's interior temperature exceeds recommended levels.
-
Sabbath Mode Setting: Optional setting allows you to disable lighting and alarms for up to 48 hours, accommodating religious observance.
-
Temperature Memory Function: Unit retains last settings upon power restoration in case of power loss, maintaining desired conditions.
-
Sealed Back: Space-saving design with no exposed coils facilitates easier cleaning and maintenance.
-
Right Angle Plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth.
-
Commercially Approved: ETL-S listed to NSF-7 Standards for use in commercial establishments, ensuring quality and reliability.
-
Matching Freezer: Pair with the ALFZ53 frost-free freezer to create a complete refrigerator/freezer set under the counter, optimizing storage options.
-
Fully Finished Black Cabinet: Allows freestanding use, providing flexibility in placement within various settings.
-
100% CFC Free: Environmentally friendly design without ozone-damaging chemicals, ensuring eco-conscious operation.
-
CARB Compliant: Utilizes eco-friendly hydrocarbon-based refrigerant, contributing to a greener footprint and meeting current CARB regulations.
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Durable construction with a professional look
- Keyed lock for a secure interior
- Includes a full-length pro handle in chrome
- No-frost operation for minimum user maintenance
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Two door racks offer convenient storage for condiments and bottles
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- For this unit with the door opening from the other side, see model AL54
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Space-saving design that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Pair with the ALFZ53 frost-free freezer to create a complete refrigerator/freezer set under the counter
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54 is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord. Inside, the AL54 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL54 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens and an be paired with the matching ALFZ53 frost-free freezer. Additional styles are available.

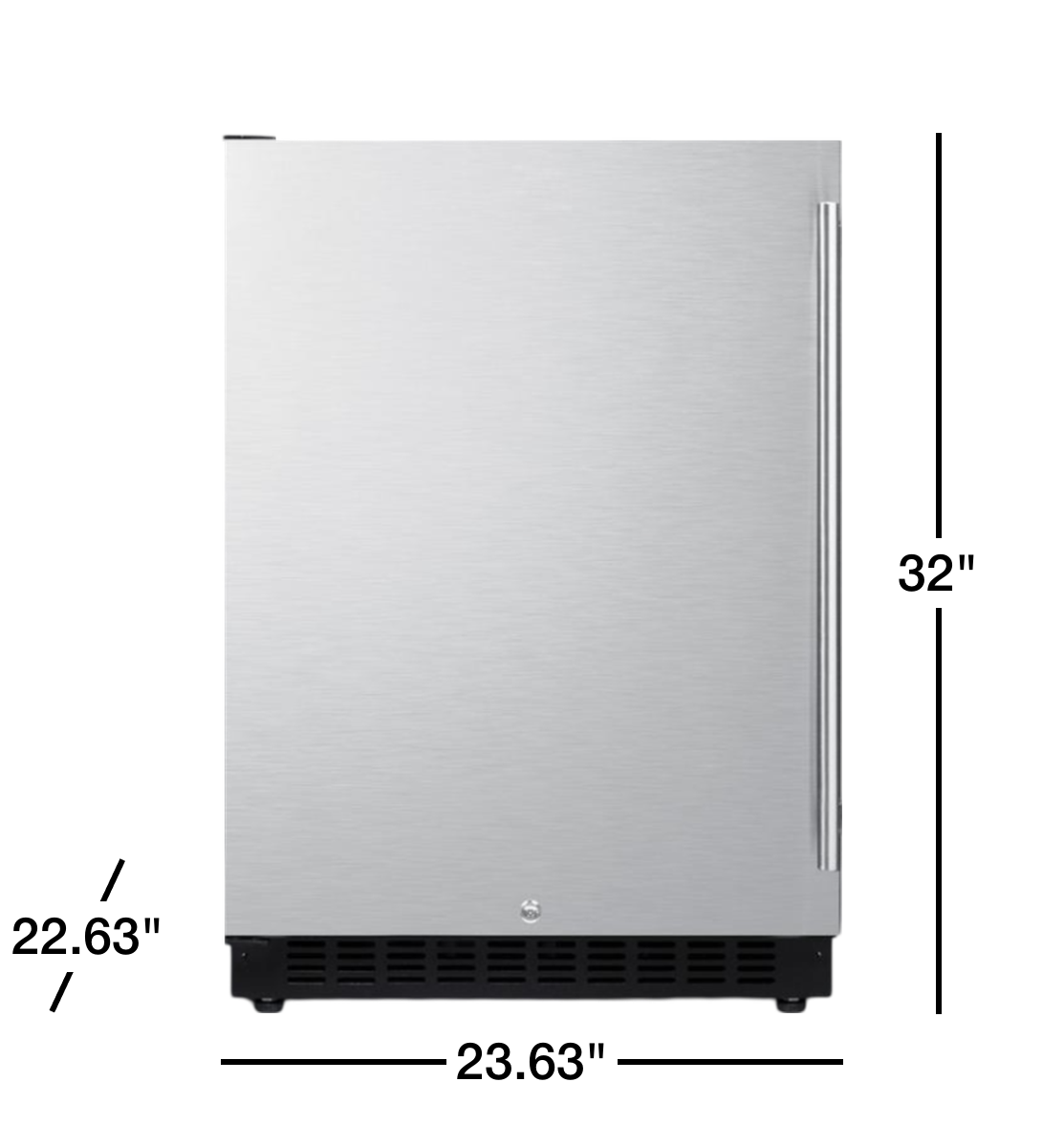

Height of Cabinet |
32.0" (81 cm) |
Width |
23.63" (60 cm) |
Depth |
22.63" (57 cm) |
Depth with Handle |
24.63" (63 cm) |
Depth with door at 90° |
45.0" (114 cm) |
Capacity |
4.8 cu.ft. (136 L) |
Defrost Type |
Frost-Free |
Door |
Stainless Steel |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Energy Usage/Year |
270.0kWh/year |
Amps |
1.0 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
95.0 lbs. (43 kg) |
Shipping Weight |
114.0 lbs. (52 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101091075 |
Sabbath Mode |
Yes |
Door Swing |
LHD |
Reversible |
No |
Shelf Type |
Glass |
Shelf Qty |
3 |
Full Door Shelf Qty |
2 |
Adjustable Shelves |
Yes |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
0.99oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs Qty |
4 |
Interior Light |
Yes |
Temperature Range |
36 to 43 F |
Sound Level |
33.3 dB |
Interior Height |
25.0" (64 cm) |
Interior Width |
20.0" (51 cm) |
Interior Depth |
17.5" (44 cm) |
Compressor Step Height |
3.25" (8 cm) |
Compressor Step Width |
20.0" (51 cm) |
Compressor Step Depth |
5.25" (13 cm) |
