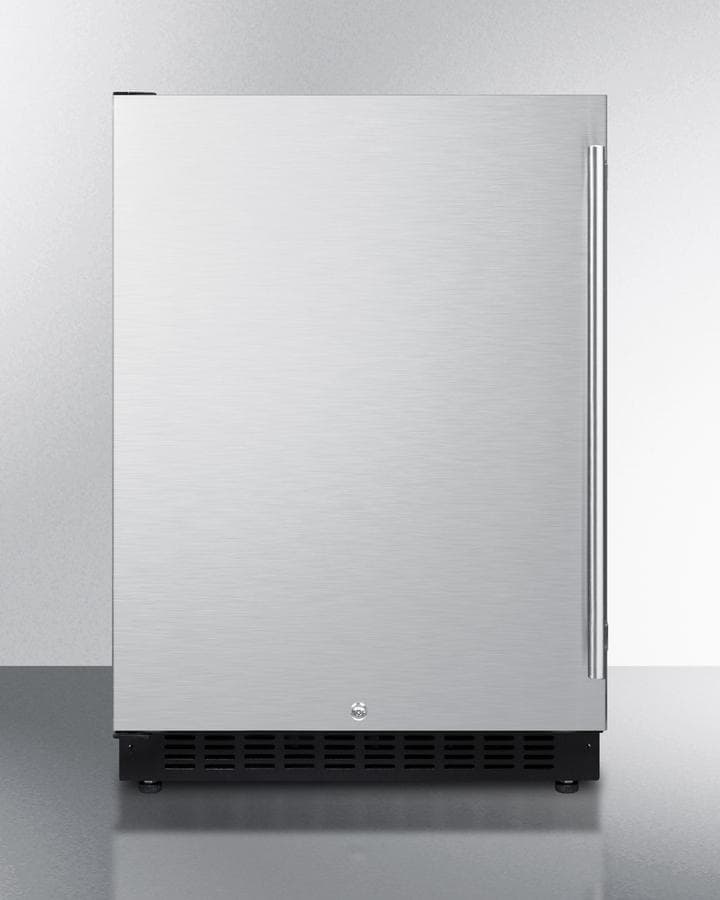

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, offering advanced features for user convenience. The AL54CSSLHD model is sized with a convenient 24" footprint and stands just 32" high to fit under lower counters, complying with ADA guidelines for accessibility. The stainless steel wrapped cabinet allows for freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door includes a pro-style handle and a factory-installed lock for safety. This unit also features a flush back for easy cleaning and a right-angle cord.
Highlights
-
ADA-Compliant Design: 32" height allows easy installation under lower ADA-compliant counters.
-
Built-In Capable: Front-breathing design optimizes space by allowing the appliance to be installed under the counter.
-
Stainless Steel Exterior: Stainless steel door and wrapped stainless steel cabinet offer an attractive look with lasting durability.
-
Factory Installed Lock: Keyed lock provides added security for stored items.
-
Professional Handle: Includes a full-length pro handle in chrome for a sleek appearance.
-
Frost-Free Operation: No-frost system minimizes user maintenance for hassle-free operation.
-
Digital Thermostat: Electronic controls inside the unit enable precise temperature management.
-
Recessed LED Light: Efficient LED lighting offers an attractive presentation of stored items while conserving energy.
-
Adjustable Glass Shelves: Customize refrigerator space to accommodate various sizes or for easy cleaning.
-
Door Storage: Two-door racks provide convenient storage for condiments and bottles.
-
Bottle Slots: Specially slotted floor securely stores wine and other bottles, preventing tipping or rolling.
-
Internal Fan: Fan-forced cooling ensures uniform temperature distribution from top to bottom, preserving food freshness.
-
Left Swing Door Option: For this unit with the door opening from the other side, see model AL54CSS.
-
Open Door Alarm: Audible alarm alerts if the door is left open for longer than one minute, preventing energy waste.
-
High-Temperature Alarm: Ensures food safety by alerting if the unit's interior temperature exceeds recommended levels.
-
Sabbath Mode Setting: An optional setting allows you to disable lighting and alarms for up to 48 hours, accommodating religious observance.
-
Temperature Memory Function: The unit retains the last settings upon power restoration in case of power loss, maintaining desired conditions.
-
Sealed Back: Space-saving design with no exposed coils facilitates easier cleaning and maintenance.
-
Right Angle Plug: The design allows you to plug the unit flush against the wall socket without adding extra depth.
-
Commercially Approved: ETL-S listed to NSF-7 Standards for use in commercial establishments.
-
Fully Finished Cabinet: Allows for freestanding use, providing flexibility in placement within various settings.
-
Matching Freezer Available: Pair with the ALFZ53CSS frost-free freezer to create a cohesive and functional refrigeration set.
-
100% CFC Free: Environmentally friendly design without ozone-damaging chemicals, ensuring eco-conscious operation.
-
CARB Compliant: Utilizes eco-friendly hydrocarbon-based refrigerant, contributing to a greener footprint and meeting current CARB regulations.
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Stainless steel door and wrapped stainless steel cabinet offer an attractive look with lasting durability
- Keyed lock for a secure interior
- Includes a full-length pro handle in chrome
- No-frost operation for minimum user maintenance
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Two door racks offer convenient storage for condiments and bottles
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- For this unit with the door opening from the other side, see model AL54CSS
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Space-saving design that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Allows the unit to be used freestanding
- Pair with the ALFZ53CSS frost-free freezer to create a complete refrigerator/freezer set under the counter
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for usesr convenience. Sized with a convenient 24" footprint, the AL54CSS is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The stainless steel wrapped cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord. Inside, the AL54CSS utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL54CSS refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens and can be paired with the matching ALFZ53CSS for a complete undercounter set. Additional styles are available.

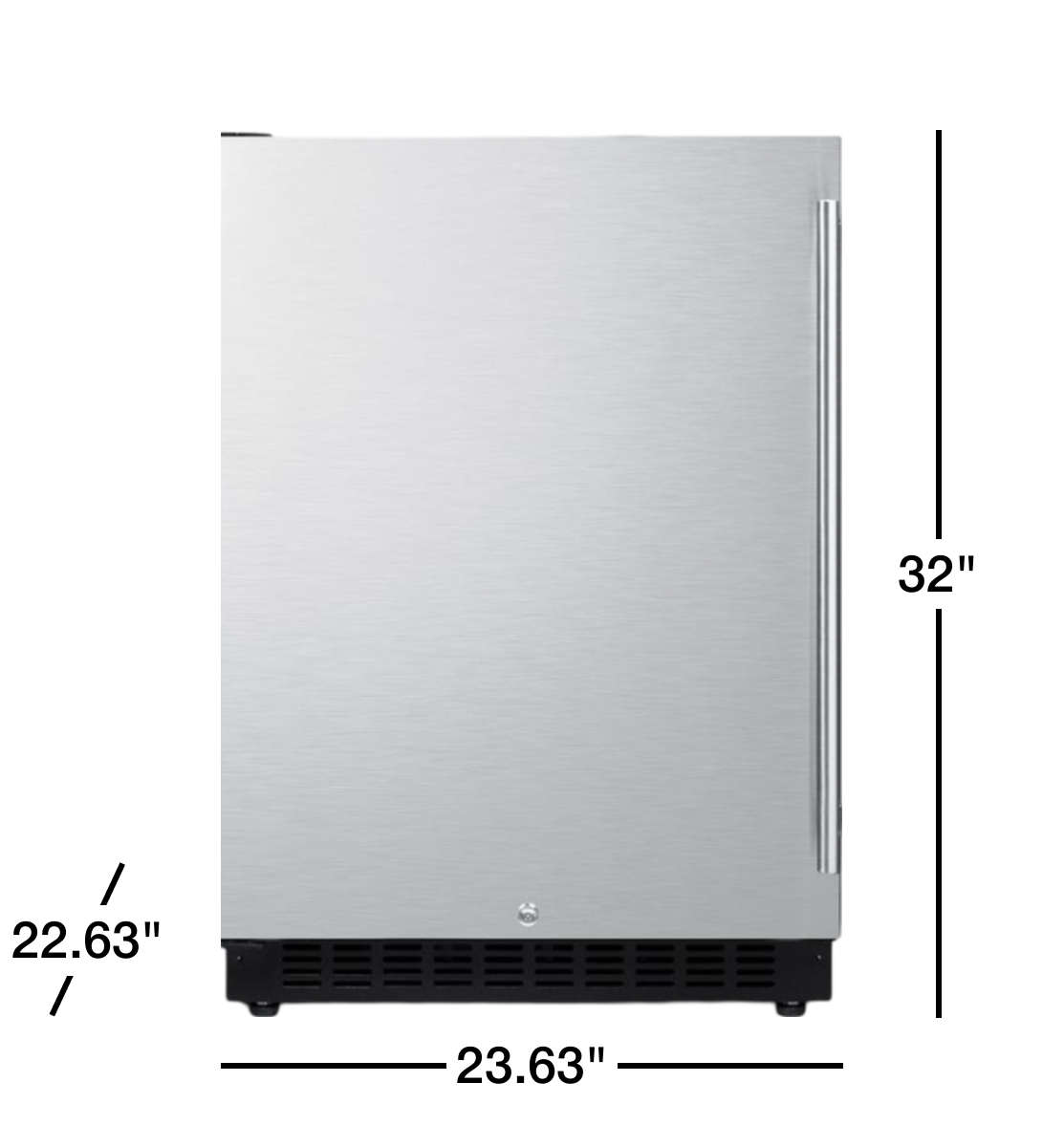

Height of Cabinet |
32.0" (81 cm) |
Width |
23.63" (60 cm) |
Depth |
22.63" (57 cm) |
Depth with Handle |
24.63" (63 cm) |
Depth with door at 90° |
45.0" (114 cm) |
Capacity |
4.8 cu.ft. (136 L) |
Defrost Type |
Frost-Free |
Door |
Stainless Steel |
Cabinet |
Stainless Steel |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Energy Usage/Year |
270.0kWh/year |
Amps |
1.0 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
95.0 lbs. (43 kg) |
Shipping Weight |
133.0 lbs. (60 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101091099 |
Sabbath Mode |
Yes |
Door Swing |
LHD |
Reversible |
No |
Shelf Type |
Glass |
Shelf Qty |
3 |
Full Door Shelf Qty |
2 |
Adjustable Shelves |
Yes |
Thermostat Type |
Digital |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
0.99oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs Qty |
4 |
Interior Light |
Yes |
Temperature Range |
36 to 43 F |
Sound Level |
33.3dB |
Interior Height |
25.0" (64 cm) |
Interior Width |
20.0" (51 cm) |
Interior Depth |
17.5" (44 cm) |
Compressor Step Height |
3.25" (8 cm) |
Compressor Step Width |
20.0" (51 cm) |
Compressor Step Depth |
5.25" (13 cm) |
