SUMMIT 24" Wide Beverage Center

• Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
• Just 24" wide and deep for an easy fit in any setting
• No-frost convenience for reduced user maintenance
• Walls are constructed from stainless steel for added strength and easy cleanup
• Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
• Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures
• Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
• Adjustable shelving accommodates virtually any size with convenient cantilevered system
• On/off button to illuminate stored products with an attractive and energy efficient glow
• Keyed lock for a secure interior (2 keys included)
• Internal fan ensures the interior is evenly cooled from top to bottom
• Alarm sounds if the interior temperature rises out of suggested range
• Attractive design in stainless steel to complete the look
• Optional setting lets you disable the lighting and alarm for up to 48 hours
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Unit will retain its last settings when power is restored in the event of power loss
• 304 grade stainless steel for durable elegance
• Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
• Environmentally friendly design with no ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

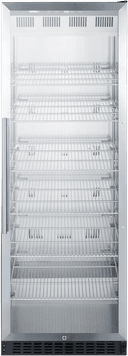

Summit's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation. The SCR1401CSS is an upright beverage center conveniently sized with a slim 24 inch footprint. The stainless steel trimmed glass door provides a full view of storage down to the floor, with recessed LED lighting to ensure an attractive and efficient presentation. The door comes in a right hand door swing and features a self-closing design to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. A factory installed lock offers additional security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished 304 grade stainless steel wrapped exterior cabinet that also enables freestanding use. Inside, the SCR1401CSS utilizes frost-free operation for minimum user maintenance. The interior walls are made from stainless steel for improved durability and sanitation. The cantilevered shelving system allows you to easily adjust your storage to accommodate virtually any size. The digital control panel is conveniently located towards the top, allowing staff to adjust the temperature without bending to the floor. The readout can be viewed in Celsius or Fahrenheit. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting. The SCR1401CSS is ETL-S listed to NSF-7 standards for use in commercial settings. Similar choices are available in lower heights for more space-challenged areas. Browse Summit's commercial product line for more.

Overview

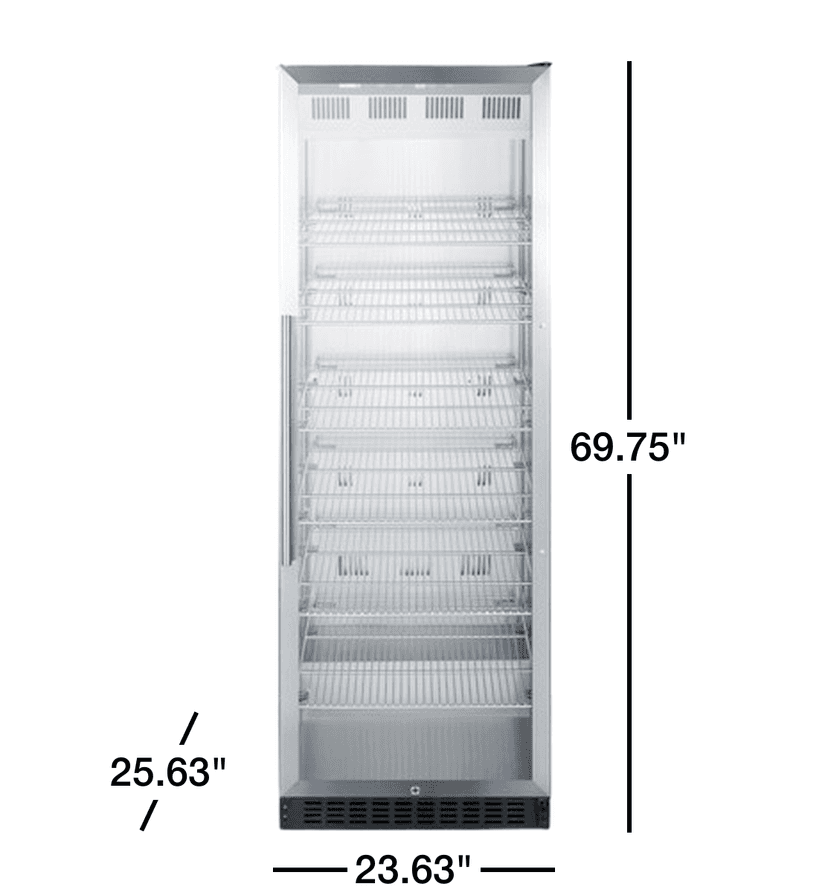

Height of Cabinet	69.75" (177 cm)
Width	23.63" (60 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.63" (65 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	12.6 cu.ft. (357 L)
Defrost Type	Frost-Free
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.7
Weight	185.0 lbs. (84 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063690
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	No
Shelf Type	Chrome
Shelf Qty	6
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.76oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 68 F
Sound Level	35.7 dB
Dimensions
Interior Height	59.75" (152 cm)
Interior Width	20.0" (51 cm)
Interior Depth	16.5" (42 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	4.5" (11 cm)
Compressor Step Depth	4.5" (11 cm)
