SUMMIT 24" Wide Beer Kegerator (panel Not Included)

• Kegerator includes all of the equipment you need to serve beer from two sixtel kegs
• Refrigeration unit is constructed in Europe and designed and modified in the USA
• Approved for both residential and commercial settings
• ETL-S listed to ANSI-NSF Standard 7 for commercial use
• Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
• Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware
• Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
• Ideal 24" footprint for an easy fit
• Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter
• Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height
• Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed
• No-frost operation for minimum user maintenance
• Includes tap cover, three glass shelves, and one scalloped bottle rack to allow easy storage when not holding kegs
• Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat
• Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Attractive jet black finish inside to match the cabinet and kickplate
• Simple and intuitive analog controls located inside for easy temperature management
• Removable two-piece drip tray included for added convenience
• Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
• Full-sized cannister ships with tapping equipment (ships empty)
• Interior includes steel cover to protect the floor when loading kegs
• Allows the unit to be used freestanding
• Environmentally friendly design without ozone-damaging chemicals
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Made in Europe, Summit Commercial's SBC7 kegerator series offers refreshing convenience to any home or foodservice setting looking to serve a variety of beverages on tap. Sized with a 24" footprint, model SBC7BRSIF is a versatile beer dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. The design also meets residential standards for home use. It can be recessed under counters or used freestanding. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height, as well as a set of casters (two locking) for optional mobility if preferred. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. This kegerator ships with our complete commercial grade stainless steel twin tap kit. The tower includes two faucets to serve beer from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all of the equipment you need to serve beer on tap. Inside, the SBC7BRSIF features a black interior liner and stainless steel floor for added protection when loading kegs. The interior light comes with an on/off rocker switch located behind the dial thermostat. Classic mechanical controls ensure an intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance and our signature cold wall design creates an efficient, reliable cooling system. We include a set of adjustable glass shelves and one scalloped bottle rack for easy storage if using the interior as a standard beverage refrigerator. In addition to this dual tap kegerator, the SBC7 series also includes choices that dispense wine and cold brew coffee. Summit also manufactures similar kegerators in ADA compliant height, as well as for outdoor applications. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.

Overview

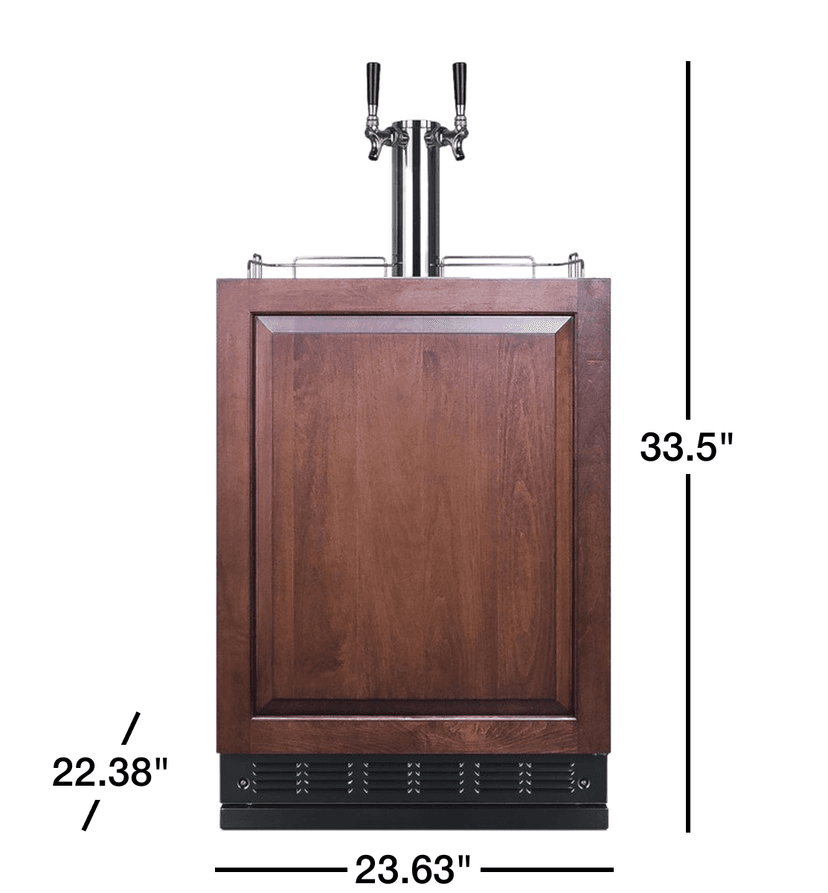

Height of Cabinet	33.5" (85 cm)
Width	23.63" (60 cm)
Depth	22.38" (57 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	5.3 cu.ft. (150 L)
Defrost Type	Automatic
Door	Integrated Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	293.0kWh/year
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101106182
Kegerator
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	Yes
Tap Kit	Yes
Number of Taps	2
Adjustable Shelves	Yes
Shelf Type	Glass and Scalloped
Shelf Qty	4
Thermostat Type	Dial
Interior Light	Yes
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
Inter Height	27.75" (70 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	36 to 46°F
