SUMMIT 24" Wide 4-burner Coil Cooktop

• Designed and constructed domestically
• Fits 22 5/8" W x 18 5/8" D counter cutouts
• Bisque finish on scratch resistant top
• Traditional design offers reliable heating and strong durability for everyday use
• Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
• Each coil element includes a removable chrome pan to catch spills for easier cleanup
• Larger element is ideal for heating wider pots and pans
• Standard burners accommodate most heating needs
• Curved design helps to contain spills on the surface
• Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
• Knobs require a small amount of force for added safety
• Professional installation required
• Compatible with standard 40 amp 3 or 4-wire range cords

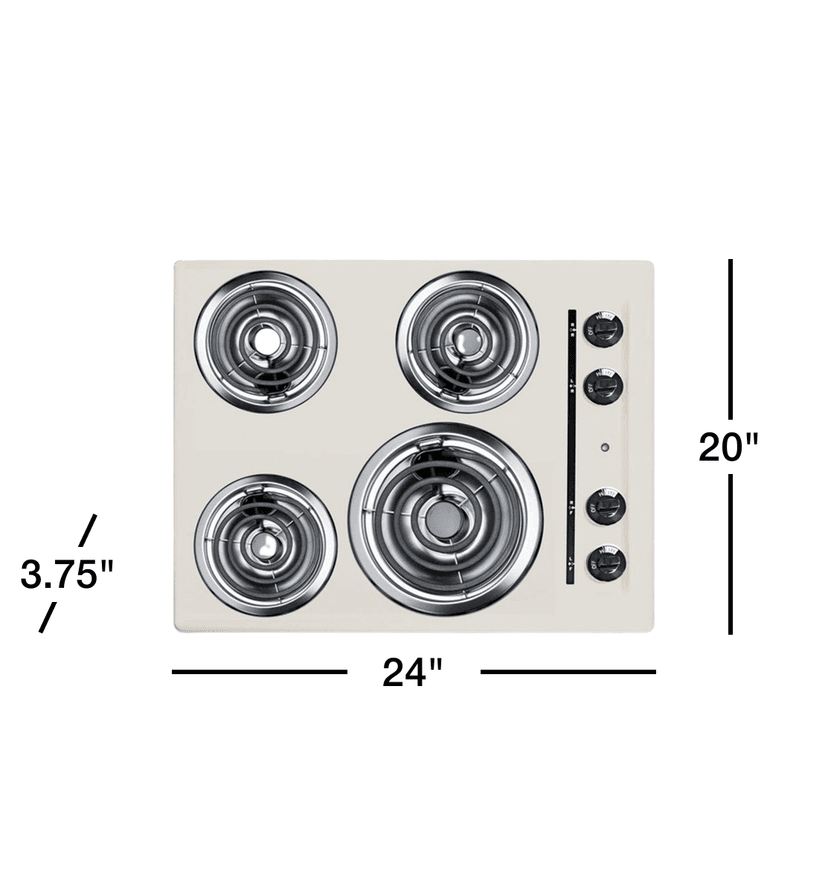

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The SEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a retro bisque finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The SEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Overview
Height of Cabinet	3.75" (10 cm)
Width	24.0" (61 cm)
Depth	20.0" (51 cm)
Cabinet	Bisque
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Voltage/Frequency	230 V AC/60 Hz
Weight	27.0 lbs. (12 kg)
Shipping Weight	26.0 lbs. (12 kg)
Parts & Labor Warranty	1 Year
UPC	761101000763
Electric Cooktop
Heating Type	Radiant
Surface	Painted
Element Type	Coils
Number of Elements	4
Controls	Dial
Countertop Cutout Width	22.63" (57 cm)
Countertop Cutout Depth	18.63" (47 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	950.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	675.0
Power Cord Included	No
