SUMMIT 24" Wide 240v 4-burner Coil Cooktop

• Surface is made from stainless steel for an attractive and easy to clean look
• 8" elements located in the rear to accommodate large pots and pans
• Front elements features a 6" diameter to handle most standard cooking applications
• Easily accessible controls allow you to adjust your cooking without reaching over burners
• Attractive style offers a modern complement to the brushed stainless steel cooktop finish
• Drip pans help to contain spills and can be removed for easy cleaning
• Upfront controls and easy-to-operate knobs offer easier accessibility
• Prevents accidents by requiring a small amount of force to turn on cooktop heat
• Individual lights for each burner allow you to easily see which zone is in use for added safety when cooking
• Designed for built-in installation in 22.5" x 18.5" cutouts
• Professional installation required

Summit's collection of electric cooktops offers the perfect fit and finish for a variety of kitchen spaces. Sized at 24" wide, the CR4SS24 is a 208-240V cooktop with four coil elements. The two rear 8" elements offer a full 1800W each of cooking power, ideal for heating large pots and pans. The 1200W front burners are sized at a standard 6". Each burner includes a removable chrome drip bowl for easy cleanup. These elements are designed to the most current UL safety standards and include a safety function to cycle off before reaching dangerous flashpoint temperatures. Heating resumes automatically. The CR4SS24 comes in a stainless steel finish, ideal for matching any home or hotel kitchen style. The push-to-turn knobs are centrally located for easy and safer use that complies with ADA guidelines, eliminating any need to reach over hot burners to adjust the temperature. Indicator lights help to identify which burners are in use. The CR4SS24 is designed for professional installation in 22.5" W x 18.5" D cutouts and does not include a cord. With its attractive style and user-friendly layout, this is the perfect cooktop for completing your kitchen at a friendly price.

Overview

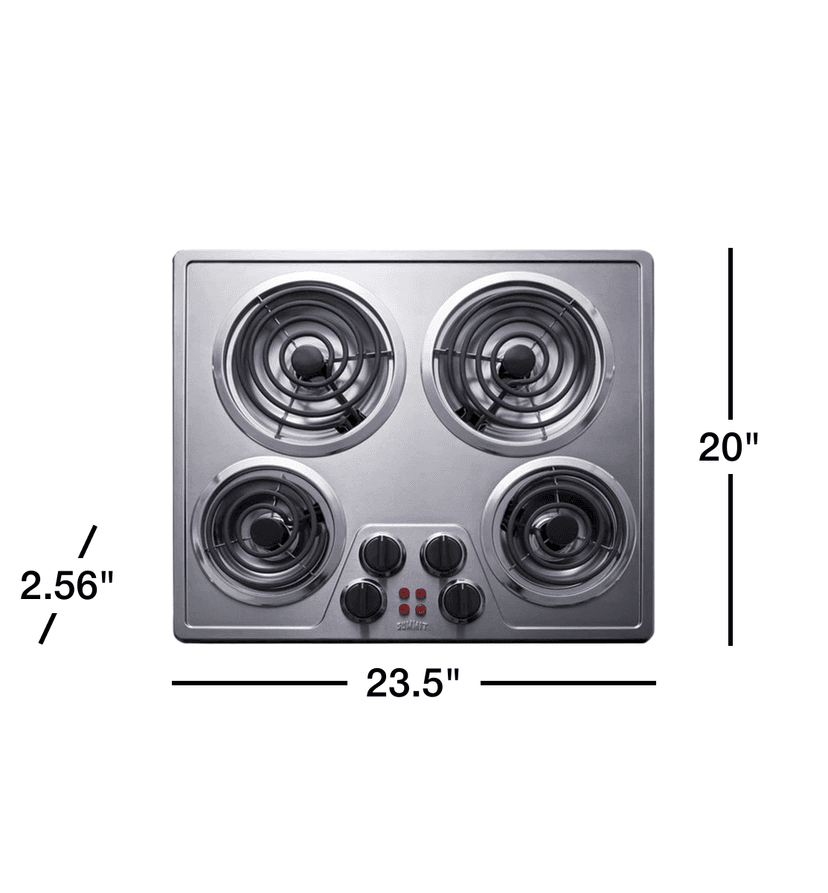

Height of Cabinet	2.56" (7 cm)
Width	23.5" (60 cm)
Depth	20.0" (51 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	20.0
Voltage/Frequency	240 V AC/60 Hz
Weight	18.0 lbs. (8 kg)
Parts & Labor Warranty	1 Year
UPC	761101066141
Electric Cooktop
Heating Type	Radiant
Surface	Stainless Steel
Element Type	Coils
Number of Elements	4
Controls	Dial
Countertop Cutout Width	22.5" (57 cm)
Countertop Cutout Depth	18.5" (47 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	1800.0
Element #3 Size	8.0" (20 cm)
Element #3 Wattage	1800.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	1200.0
Power Cord Included	No

• Brochure W/ Drawings

• Use & Care
