SUMMIT 24" Wide 230v 4-burner Radiant Cooktop

• Designed to fit 22.13" W x 18.63" D cutouts
• Smooth ceramic glass cooking surface in a classic white finish
• Rear left burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
• Three 6.5" 1200W burners meet most heating needs
• Considered by many to be the industry's best cooking technology
• Controls require a gentle push to help prevent cooking accidents
• Each burner includes an indicator light to show when the unit is on
• Stainless steel border adds an extra touch of style
• Requires professional hardwired installation to 230V power supply

SUMMIT introduces a new series of smooth-top electric cooktops sized for 24" wide kitchen counter spaces, all made in the USA with the industry's best elements. The CR425WH is a 230V 5400W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element to accommodate large cooking vessels and three 1200W 6 1/2" burners to meet most heating needs. Push-to-turn safety knobs offer added safety, with an attractive white finish to complete the look. Each burner includes an indicator light. The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. The CR425WH is designed to fit common cutouts sized at 22 1/8" W x 18 5/8" D Designed and manufactured in the USA, the CR425WH is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR425BL.

Overview

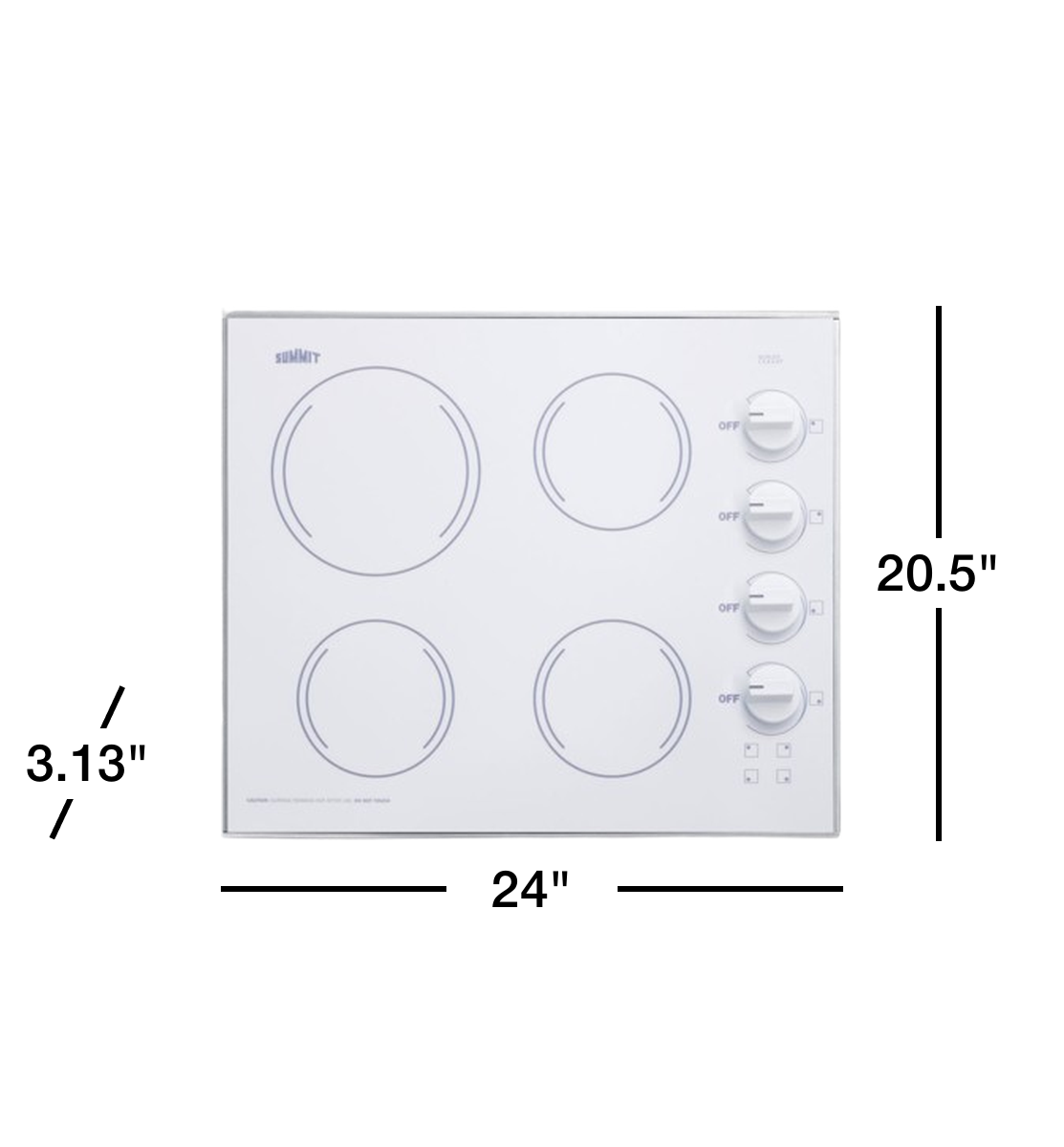

Height of Cabinet	3.13" (8 cm)
Width	24.0" (61 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	21.0
Voltage/Frequency	230 V AC/60 Hz
Weight	30.0 lbs. (14 kg)
Shipping Weight	35.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
UPC	761101059457
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	4
Controls	Dial
Countertop Cutout Height	3.5" (9 cm)
Countertop Cutout Width	22.13" (56 cm)
Countertop Cutout Depth	18.63" (47 cm)
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	1800.0
Element #2 Size	6.5" (17 cm)
Element #2 Wattage	1200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	1200.0
Element #4 Size	6.5" (17 cm)
Element #4 Wattage	1200.0
Power Cord Included	No
