SUMMIT 24" Wide 230v 4-burner Coil Cooktop

• Designed and constructed domestically
• Fits 22 5/8" W x 18 5/8" D counter cutouts
• Metallic design for a professional look with lasting durability
• Traditional design offers reliable heating and strong durability for everyday use
• Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
• Larger element is ideal for heating wider pots and pans
• Standard burners accommodate most heating needs
• Each coil element includes a removable chrome pan to catch spills for easier cleanup
• Curved design helps to contain spills on the surface
• Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
• Knobs require a small amount of force for added safety
• Professional installation required
• Compatible with standard 40 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The ZEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The ZEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Overview

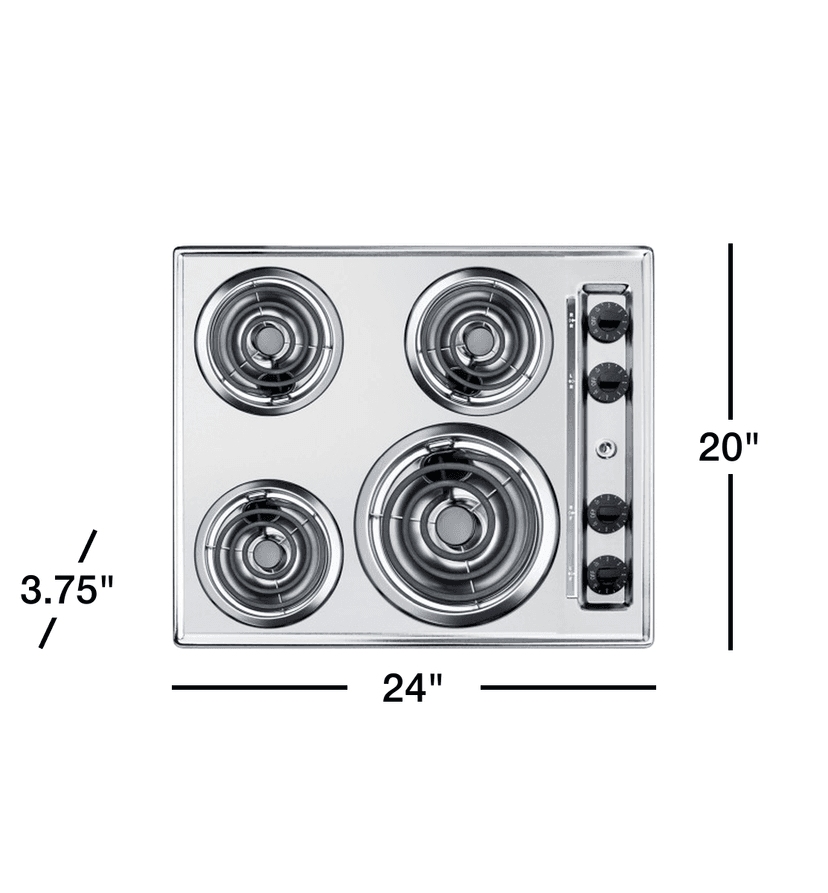

Height of Cabinet	3.75" (10 cm)
Width	24.0" (61 cm)
Depth	20.0" (51 cm)
Cabinet	Chrome
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	30.0
Voltage/Frequency	230 V AC/60 Hz
Weight	27.0 lbs. (12 kg)
Parts & Labor Warranty	1 Year
UPC	761101061658
Electric Cooktop
Heating Type	Radiant
Element Type	Coils
Number of Elements	4
Controls	Dial
Countertop Cutout Width	22.63" (57 cm)
Countertop Cutout Depth	18.63" (47 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	950.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	675.0
Power Cord Included	No
