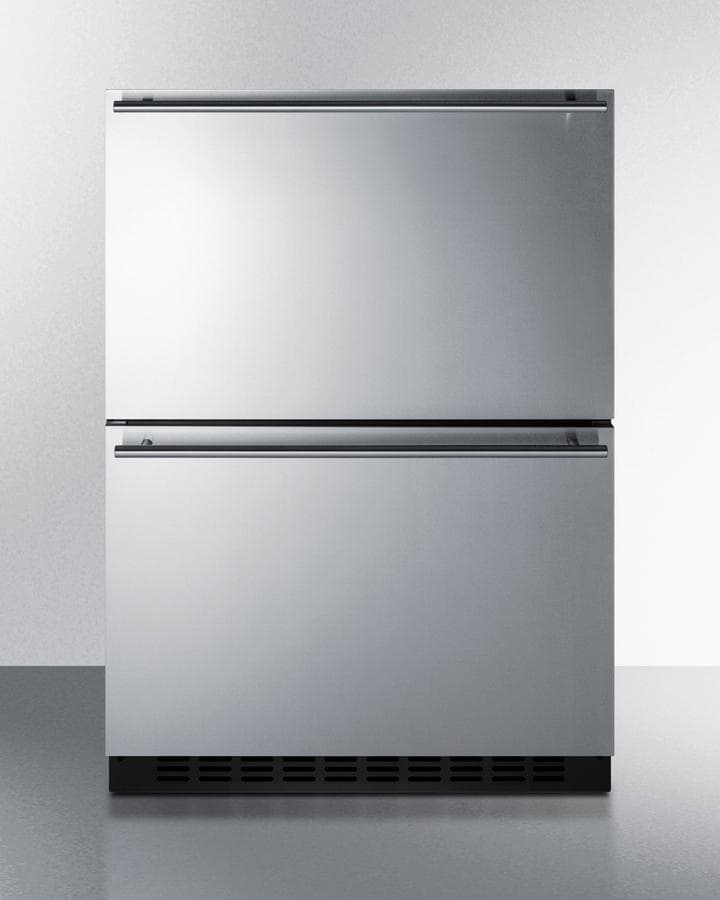

Summit’s ADRF244 model is a versatile 2-drawer refrigerator-freezer designed to bring modern convenience and elegant style to any undercounter space. This unit is ADA-compliant, making it suitable for both indoor and outdoor installation. Measuring just under 24" wide and 32" high, it fits perfectly under lower counters. Its fully finished black cabinet and stainless steel drawer fronts are weatherproof, ensuring durability and safe use in outdoor kitchens. The drawer fronts can also accept user-provided overlay panels to blend seamlessly with existing cabinetry designs. With features like frost-free operation, digital thermostat, LED lighting, and commercial listing, the ADRF244 offers a complete and efficient refrigeration solution.
Highlights
-
24" Wide 2-Drawer Refrigerator-Freezer: Provides complete refrigeration storage with a top-drawer refrigerator and a bottom-drawer freezer.
-
ADA-Compliant Design: Sized just under 32" high for installation under lower ADA-compliant counters.
-
Built-in Capable: Front-breathing design allows for flush installation under counters in 24" wide openings.
-
Indoor/Outdoor Compatible: Constructed and approved for outdoor use with a fully sealed cooling system and weatherproof exterior.
-
Commercially Listed: ETL-S is listed to ANSI-NSF Standard 7 for commercial use.
-
Stainless Steel Drawers: Both the interior and exterior of drawers are made from 304-grade stainless steel for durability and style.
-
Panel-Ready Drawer Fronts: Drawers can accept overlay panels to blend with cabinetry (panel size: 23.43" W x 14.1" H at 3/4" thick).
-
Professional Handles: Sleek stainless steel handles enhance any setting.
-
Frost-Free Operation: No-frost operation reduces user maintenance.
-
Digital Thermostat: Electronic controls on the top drawer with an external readout that switches between Celsius and Fahrenheit.
-
LED Lighting: Gentle white LED lighting illuminates the refrigerator section.
-
Internal Fan: Ensures even cooling from top to bottom.
-
Drawer Dividers: Includes two adjustable dividers for organized storage.
-
Sliding Basket: A removable chrome basket adds storage convenience.
-
Temperature Alarm: Sounds if the unit’s interior goes out of the recommended range.
-
Open Drawer Alarm: An audible alarm sounds if a drawer is left open longer than one minute.
-
Sabbath Mode: Disables lighting and alarm for up to 48 hours.
-
Child Lock: Disables digital controls after two minutes of inactivity for added safety.
-
Temperature Memory Function: Restores the most recent temperature settings after power loss.
-
Right Angle Plug: Allows flush installation against wall sockets.
-
Sealed Back: No exposed coils for easier cleanability and added protection.
-
Fully Finished Black Exterior Cabinet: Allows for freestanding use.
-
Anti-Tip Bracket: Included to reduce the risk of tipping.
-
Commercially Approved: ETL-S listed to NSF-7 standards for use in commercial establishments.
-
100% CFC Free: Environmentally friendly design without ozone-damaging chemicals.
-
CARB Compliant: Uses eco-friendly hydrocarbon-based refrigerant meeting current CARB regulations.
- Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
- Sized just under 32" high to allow installation under lower ADA compliant counters
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
- Sleek stainless steel handles add an elegant touch to any setting
- No-frost operation for minimum user maintenance
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Two adjustable dividers make it simple to organize the drawer interiors
- Removable chrome basket included for added storage convenience
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Audible alarm will sound if either drawer is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- Disables digital controls after two minutes of activity for added safety
- Unit will restore the most recent temperature settings after losing power
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability and added protection from the elements
- Allows the unit to be used freestanding
- Included and recommended for user-installation to reduce the risk of tipping
- ETL-S listed to NSF-7 standards to allow use in commercial establishments
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADRF244 is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The fully finished black cabinet and stainless steel drawer fronts feature weatherproof construction for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADRF244 has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRF244 is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless options for ADA compliant undercounter spaces.

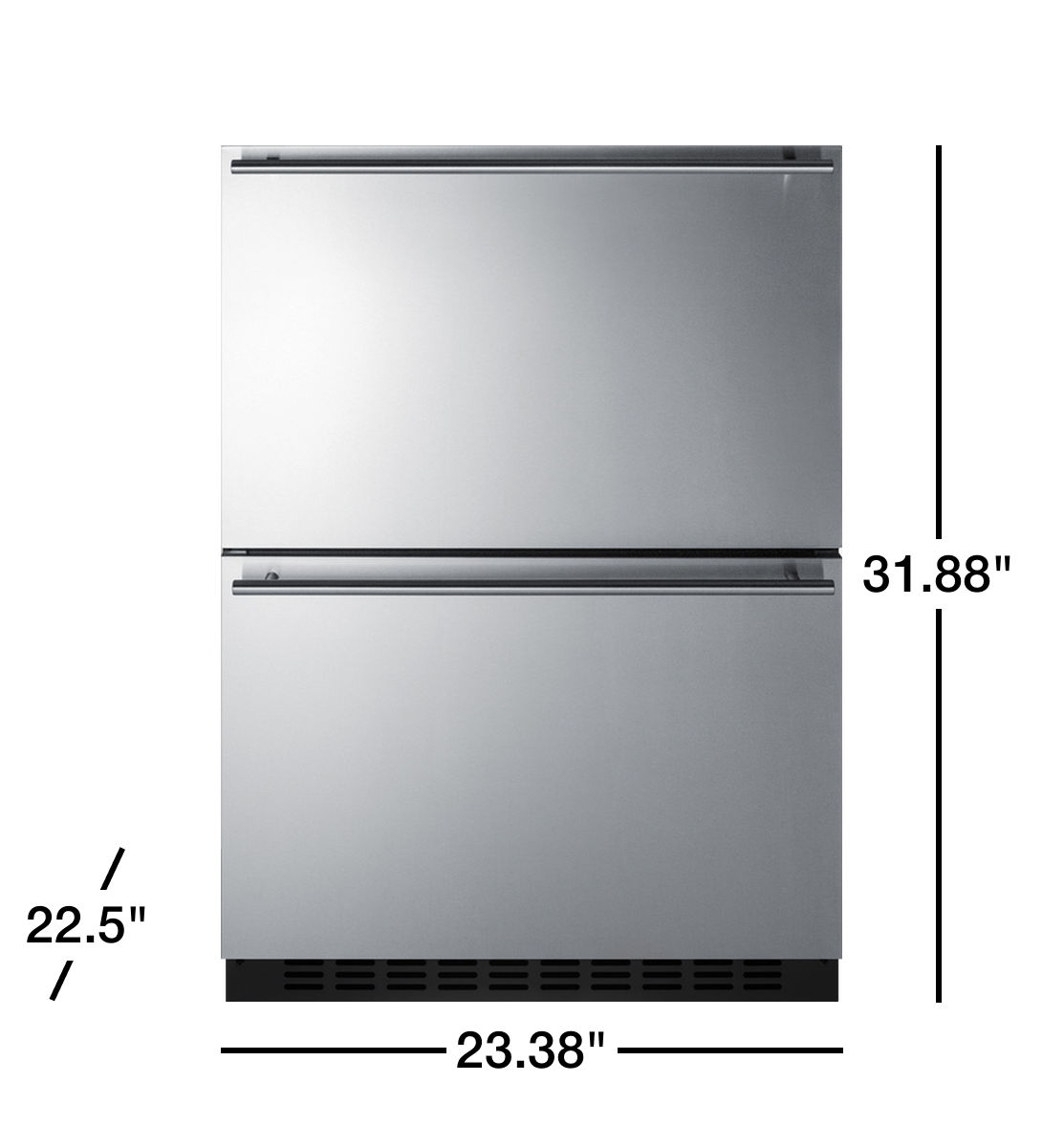

Height of Cabinet |
31.88" (81 cm) |
Width |
23.38" (59 cm) |
Depth |
22.5" (57 cm) |
Depth with Handle |
23.88" (61 cm) |
Depth with door at 90° |
34.25" (87 cm) |
Capacity |
3.32 cu.ft. (94 L) |
Defrost Type |
Frost-Free |
Door |
Stainless Steel/Panel-Ready |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Energy Usage/Year |
368.0kWh/year |
Amps |
1.0 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
105.0 lbs. (48 kg) |
Shipping Weight |
150.0 lbs. (68 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101079578 |
Door Swing |
Drawer |
Interior Light |
Yes |
Refrigerator - Interior Height |
8.0" (20 cm) |
Refrigerator - Interior Width |
17.0" (43 cm) |
Refrigerator - Interior Depth |
14.5" (37 cm) |
Refrigerator - Temperature Range |
36°F to 43°F |
Freezer - Interior Height |
8.0" (20 cm) |
Freezer - Interior Width |
17.0" (43 cm) |
Freezer - Interior Depth |
14.5" (37 cm) |
Thermostat Type |
Digital |
Fan Type |
Interior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.38 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
4 |
Freezer - Temperature Range |
-11°F to 11°F |
Compressor Step Height |
4.0" (10 cm) |
Compressor Step Width |
17.0" (43 cm) |
Compressor Step Depth |
3.5" (9 cm) |
Sabbath Mode |
Yes |
Sound Level |
34.6 dB |
