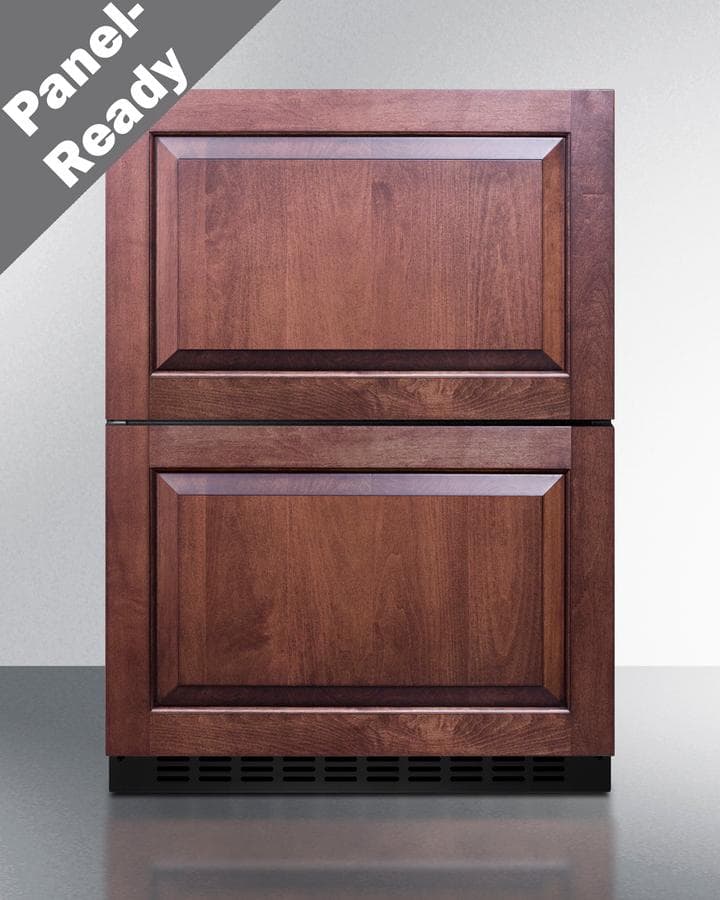

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. Sized at just under 24" wide and 32" high, model ADFD243PNR is a 2-drawer all-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces. Inside, the ADFD243PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
- 24" wide 3.7 cu.ft. freezer with two gliding drawers
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
- Sized just under 32" high to allow installation under lower ADA compliant counters
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
- Sleek stainless steel handles add an elegant touch to any setting
- No-frost operation for minimum user maintenance
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
- Fan-forced cooling ensures even temperature distribution from top to bottom
- Two adjustable dividers make it easier to organize the drawer interiors
- Removable chrome basket included for added storage convenience
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Audible alarm will sound if either drawer is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
- Disables digital controls after two minutes of activity for added safety
- Unit will restore the most recent temperature settings after losing power
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability and added protection from the elements
- Allows the freezer to be used as a freestanding model
- Included and recommended for user-installation to reduce the risk of tipping
- ETL-S listed to NSF-7 standards to allow use in commercial establishments
- Pair with the ADRD241 refrigerator to create a complete 2-drawer undercounter set
- Environmentally friendly design without ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. Sized at just under 24" wide and 32" high, model ADFD243PNR is a 2-drawer all-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces. Inside, the ADFD243PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.

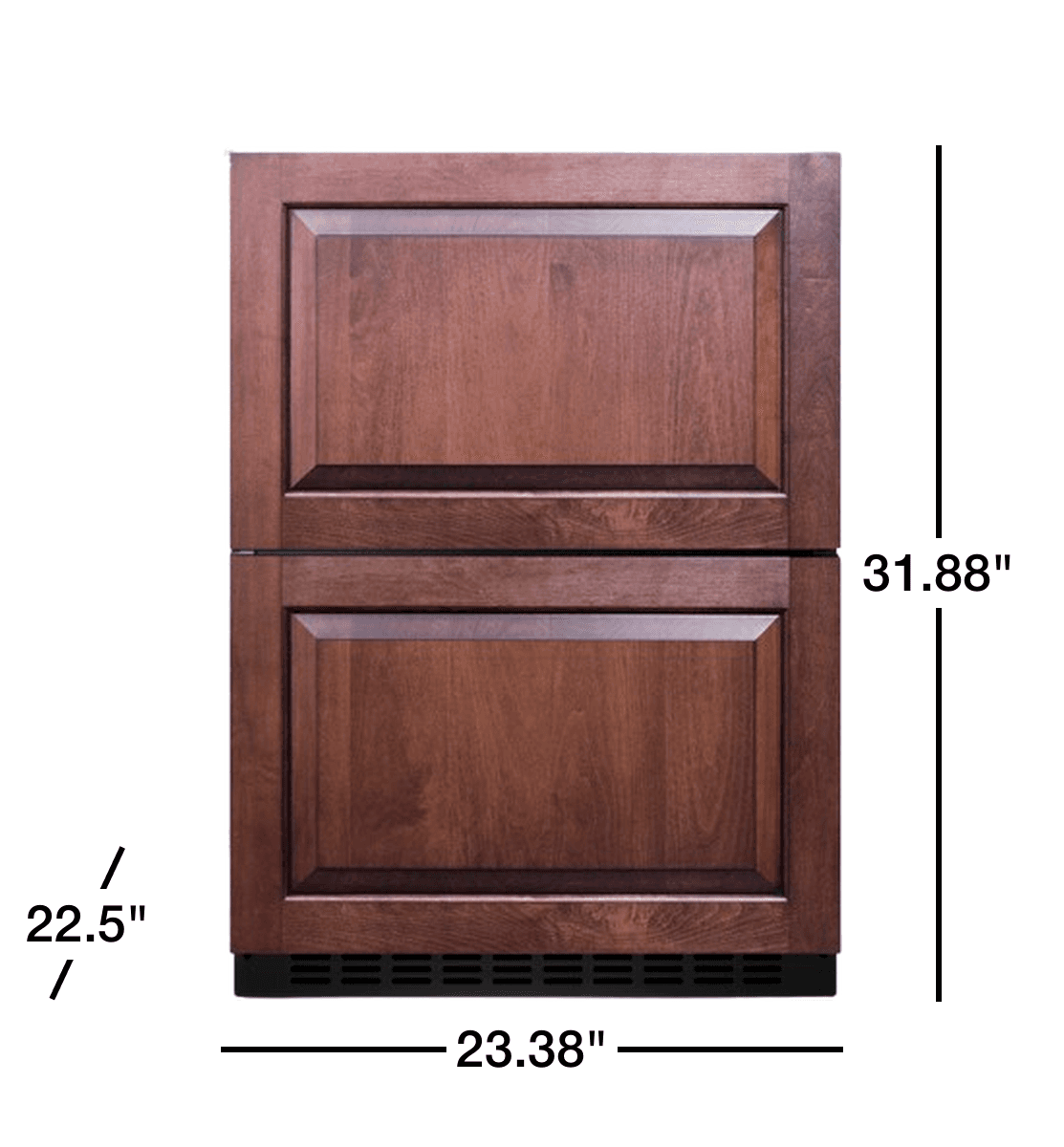

Height of Cabinet |
31.88" (81 cm) |
Width |
23.38" (59 cm) |
Depth |
22.5" (57 cm) |
Depth with Handle |
23.88" (61 cm) |
Depth with door at 90° |
34.25" (87 cm) |
Capacity |
3.7 cu.ft. (105 L) |
Defrost Type |
Frost-Free |
Door |
Panel-Ready |
Cabinet |
Black |
US Electrical Safety |
ETL |
Canadian Electrical Safety |
ETL-C |
Sanitation |
ETL-S |
Energy Usage/Year |
395.0kWh/year |
Amps |
1.5 |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
106.0 lbs. (48 kg) |
Parts & Labor Warranty |
1 Year |
Compressor Warranty |
5 Years |
UPC |
761101088204 |
Thermostat Type |
Digital |
Interior Light |
Yes |
Fan Type |
Interior and Exterior |
Refrigerant Type |
R600a |
Refrigerant Amount |
1.31 oz. |
High Side PSI |
270.0 |
Low Side PSI |
105.0 |
Level Legs |
4 |
Interior Drawers |
Yes |
Drawers Qty |
2 |
Interior Height - Drawer 1 |
8.0" (20 cm) |
Interior Width - Drawer 1 |
17.0" (43 cm) |
Interior Depth - Drawer 1 |
14.5" (37 cm) |
Interior Height - Drawer 2 |
8.0" (20 cm) |
Interior Width - Drawer 2 |
17.0" (43 cm) |
Interior Depth - Drawer 2 |
14.5" (37 cm) |
Compressor Step Height |
4.0" (10 cm) |
Compressor Step Width |
17.0" (43 cm) |
Compressor Step Depth |
3.5" (9 cm) |
Temperature Range |
-11°F to 11°F |
Sabbath Mode |
Yes |
Sound Level |
33.8 dB |
