SUMMIT 21" Wide Built-in All-refrigerator, ADA Compliant, Door shelves (panel Not Included)

Discover Summit Appliance's range of 21" wide built-in undercounter all-refrigerators designed to meet ADA guidelines for lower counter installations. The ALR47BIF offers advanced features for user convenience and seamless integration into any kitchen design.

Highlights

• ADA-Compliant Design: 32" height ensures easy installation under lower ADA-compliant counters.

• Built-in Capable: Front-breathing design allows for built-in installation, maximizing space utilization.

• Panel-Ready Door: The integrated stainless steel door frame accepts full overlay panels, enabling customization or seamless blending into cabinetry design.

• Adjustable Thermostat: A Digital thermostat offers easy temperature management with Fahrenheit or Celsius readout.

• Door Shelves: Three removable door racks provide additional storage for larger items.

• Adjustable Glass Shelves: Three spill-proof glass shelves offer optimal storage in the 3.53 cu. ft. interior.

• Fruit and Vegetable Crisper: A convenient slide drawer ensures the longest life and best taste for produce.

• 3" Thick Door: Enhanced insulation for efficient performance.

• Temperature Alarms: User-set high/low-temperature alarms provide added security against temperature fluctuations.

• Open Door Alarm: Audible alarm alerts if the door is left ajar for over a minute.

• Sealed Back: Space-saving design ensures easier cleanability.

• Right-Angle Plug: Allows flush plug-in against the wall socket without adding extra depth.

• Automatic Defrost: Reduced user maintenance with an auto defrost system.

• Interior Light: Front-located LED light ensures the entire interior is illuminated when the door opens.

• Matching All-Freezer: This can be paired with the ALFZ37BIF all-freezer for a complete set.

• Fully Finished Black Cabinet: Enables freestanding use, offering versatility in placement.

• 100% CFC Free: Environmentally friendly design without ozone-damaging chemicals.

• CARB Compliant: Utilizes environmentally friendly hydrocarbon-based refrigerant, meeting current CARB regulations.

• 32" height allows easy installation under lower ADA compliant counters
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles
• Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
• Three removable door racks for additional storage of larger items
• Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
• Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
• Improved insulation for an efficient performance
• User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
• Audible alarm will sound if the door is left ajar for over a minute
• Space-saving design that offers easier cleanability
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Reduced user maintenance with an auto defrost system
• Front-located LED light ensures entire interior is lit when door opens
• This unit can be paired with the ALFZ37BIF all-freezer for a complete set
• Allows the unit to be used freestanding
• Environmentally friendly design without ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALR47BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR47BIF features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALR47BIF is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ37BIF all-freezer. Additional choices in complete stainless steel and black cabinet styles are available.

Overview

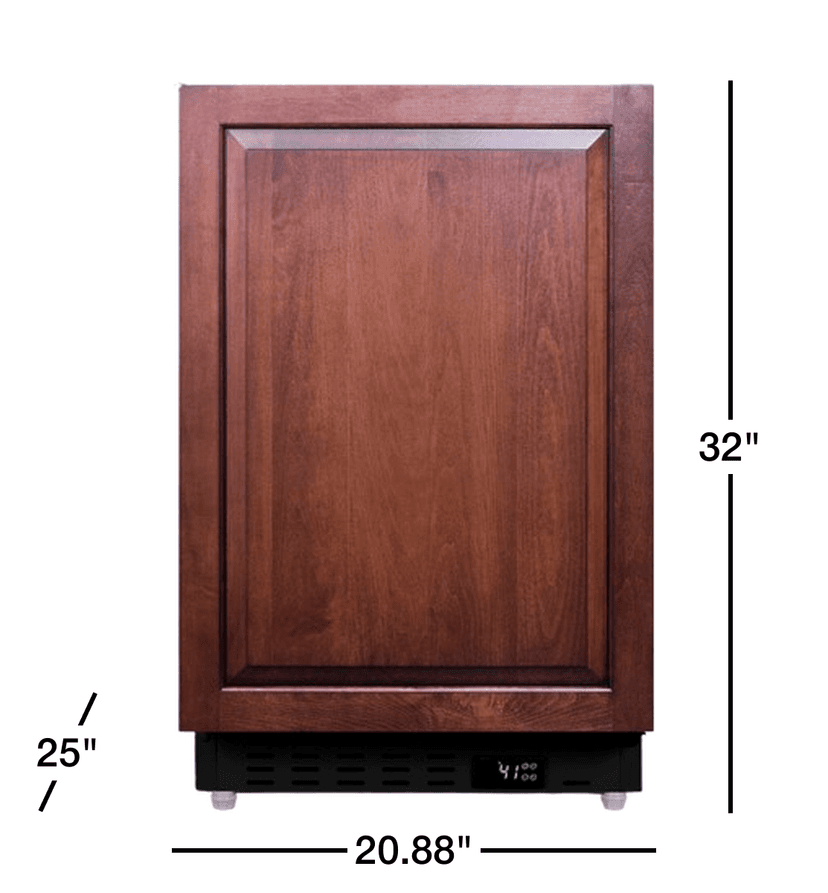

Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	20.25" (51 cm)
Depth	23.0" (58 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	75.0 lbs. (34 kg)
Shipping Weight	89.0 lbs. (40 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076522
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Temperature Range	35 to 46°F
Sound Level	33.2 dB
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
