The Summit RG200WS is a space-saving gas range designed for compact kitchens. This 20-inch wide freestanding unit boasts a full suite of features for efficient and safe cooking, making it ideal for apartments, studio spaces, or anywhere maximizing counter space is essential.
Highlights
-
Compact Design: Measuring just 20 inches wide, the RG200WS easily fits into kitchens with limited counter space.
-
Four-Sealed Burners: Enjoy safer and cleaner cooking with four sealed burners featuring removable cast iron grates for easy cleaning.
-
Variety of Burner Options: The cooktop features a high-output 12,500 BTU front burner for powerful cooking, two standard 9,500 BTU burners for everyday needs, and a 5,000 BTU burner for simmering or delicate tasks.
-
Large Oven Capacity: Despite its compact size, the RG200WS offers a roomy 2.3 cu. ft. oven interior to accommodate various baking and roasting needs.
-
Lower Broiler Compartment: The broiler compartment is located conveniently below the oven cavity for even broiling results. A two-piece broiler pan with a lid is included.
-
Electronic Ignition: The RG200WS features a safe and reliable electronic ignition system for easy flame start-up.
-
Safety Features: Safety brake racks prevent accidental spills by stopping the racks from fully extending. Additionally, the cooktop knobs are designed to minimize accidental turning, and an anti-tip bracket is included for added stability.
-
User-friendly Controls: Upfront controls with easy-to-grip knobs provide intuitive operation, making the RG200WS ADA-compliant for users with disabilities.
-
Easy Cleaning: The smooth cooktop with sealed burners and removable grates simplifies post-cooking cleaning. The high backguard also helps protect walls from splatters and spills.
-
LP Convertible: The unit comes set for natural gas but includes an LP kit for easy conversion to propane gas.
- Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
- Unit is set for natural gas but can be converted aftermarket with the included LP kit
- Full 2.3 cu.ft. interior in slim 20" width
- Front left burner features 12,500 BTU output for powerful cooking
- Two right burners operate at 9,500 BTU to handle most heating needs
- Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
- Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans
- Drop-down lower compartment offers the ideal conditions for broiling
- Safety knobs help prevent accidents from turning on the oven or burners
- Added safety with spark ignition system
- Sliding racks will stay in your oven with special brake mechanism
- Two-piece broiler pan with lid included with each range
- Upfront controls and easy-to-operate knobs offer easier accessibility
- Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
- Standard 3-pronged 115V cord included for the electronic ignition
- Included for user installation to help prevent accidents
SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. The RG200WS is sized at just 20" wide for an easy fit in smaller kitchen spaces. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. We include a two-piece broiler pan with lid. The RG200WS comes in a classic white finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the RG200WS is the ideal gas range for apartment and small home kitchens. NOTE: This unit replaces model RG200W but features an upgraded sealed burner design.

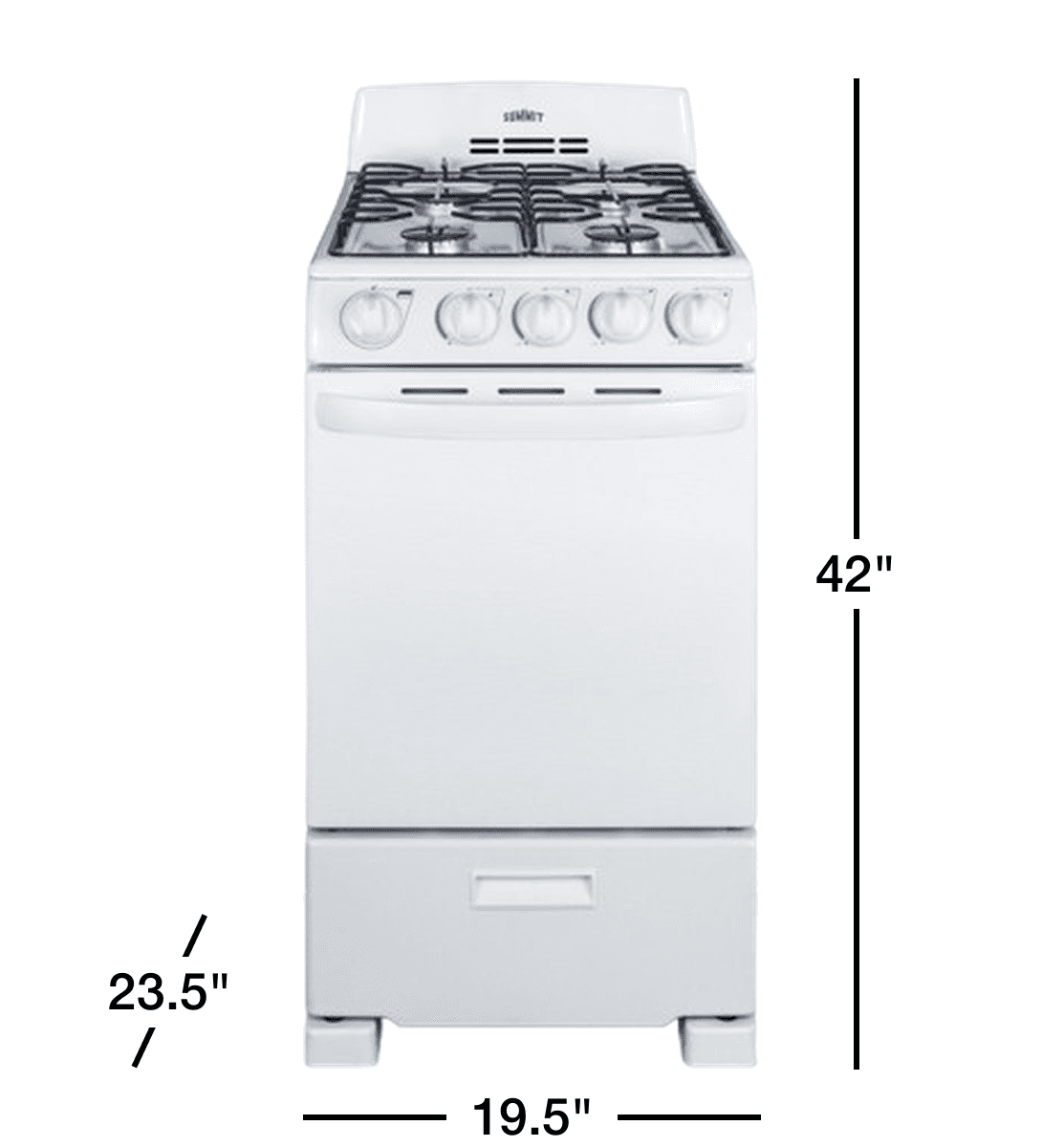

Height of Cabinet |
42.0" (107 cm) |
Width |
19.5" (50 cm) |
Depth |
23.5" (60 cm) |
Depth with Handle |
25.75" (65 cm) |
Depth with door at 90° |
43.25" (110 cm) |
Door |
White |
Cabinet |
White |
US Electrical Safety |
CSA |
Canadian Electrical Safety |
CSA-C |
Voltage/Frequency |
115 V AC/60 Hz |
Weight |
130.0 lbs. (59 kg) |
Parts & Labor Warranty |
1 Year |
UPC |
761101058269 |
Ignition |
Spark |
LP Convertible |
Yes |
Oven Capacity |
2.3 cu.ft |
Cooktop Surface |
Metal |
Burner Type |
Sealed |
Number of Burners |
4 |
Burner #1 BTU |
12000.0 |
Burner #2 BTU |
9500.0 |
Burner #3 BTU |
9500.0 |
Burner #4 BTU |
5000.0 |
Burner Controls |
Dial |
Oven Controls |
Dial |
Backguard |
Yes |
Cleaning Type |
Manual |
Oven Rack Qty |
2 |
Oven Interior Height |
15.25" (39 cm) |
Oven Interior Width |
14.5" (37 cm) |
Oven Interior Depth |
17.5" (44 cm) |
Broiler Location |
Below Oven |
