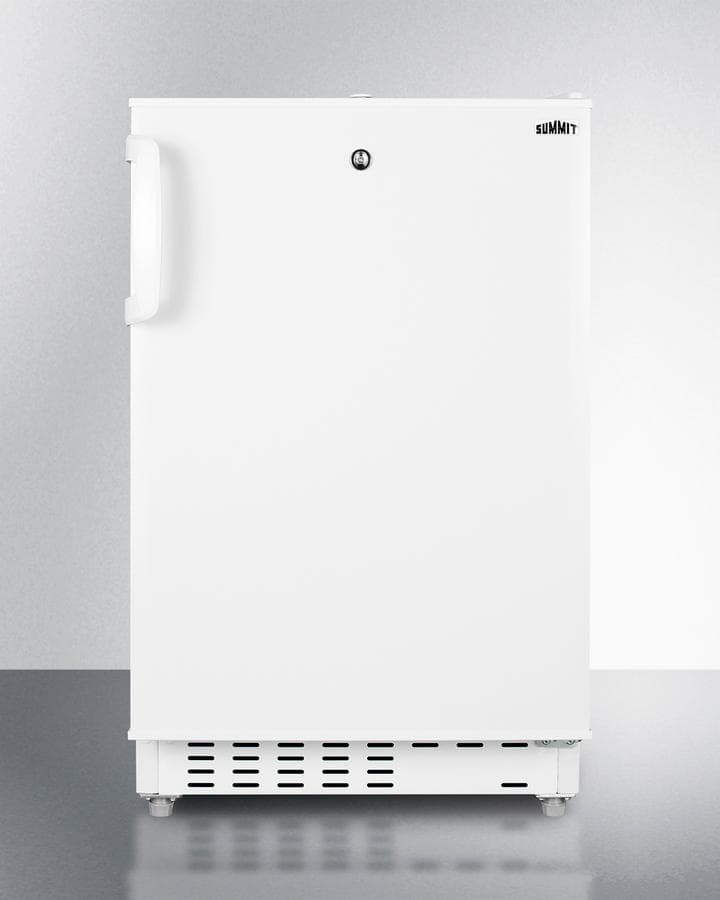

SUMMIT 20" Wide Built-in Refrigerator-freezer, ADA Compliant, Adjustable shelves

Summit Appliance presents the ALRF48, a versatile built-in undercounter refrigerator-freezer crafted for seamless installation under lower ADA-compliant counters. Boasting advanced features and thoughtful design, this unit offers both convenience and functionality.

Highlights

• ADA-Compliant Design: Tailored with a 32" height to effortlessly fit under lower ADA-compliant counters, ensuring accessibility.

• Built-in Capable: Front-breathing design optimizes space utilization by facilitating built-in installation under counters.

• Freezer Compartment: The interior freezer compartment provides convenient storage for frozen items, offering added versatility.

• Door Shelves: Equipped with three removable door racks, enhancing storage capacity for larger items and condiments.

• Adjustable Shelves: Three spill-proof glass shelves are adjustable to accommodate various storage needs within the 2.68 cu. ft. interior.

• Fruit and Vegetable Crisper: A convenient slide drawer ensures the longest life and best taste for stored produce.

• Adjustable Thermostat: The dial thermostat located inside enables easy temperature management for optimal cooling performance.

• Reversible Door: User-reversible door swing offers flexibility to best suit your space and preferences.

• 3" Thick Door: Enhanced insulation ensures efficient performance; note the oversized design, the door does not open in its own radius.

• Factory Installed Lock: Positioned towards the top of the door, the lock provides added security for the unit, with two keys included.

• Sealed Back: Space-saving design enhances cleanability and maintenance ease.

• Right-Angle Plug: Flush plug design allows for seamless installation against the wall socket, eliminating the need for extra depth.

• Manual Defrost: Efficient performance and reliable temperature stability achieved through manual defrost functionality.

• Interior Light: Front-located LED light ensures the entire interior is illuminated when the door opens, enhancing visibility.

• Fully Finished White Cabinet: Allows for freestanding use, blending seamlessly with various décor styles.

• 100% CFC Free: Environmentally friendly design devoid of ozone-damaging chemicals, prioritizing sustainability.

• CARB Compliant: Utilizes environmentally friendly hydrocarbon-based refrigerant, ensuring compliance with current CARB regulations.

• 32" height allows easy installation under lower ADA compliant counters
• Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Interior freezer compartment offers convenient storage for frozen items
• Three removable door racks for additional storage of larger items
• Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
• Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
• Dial thermostat located inside for easy temperature management
• User-reversible door swing for added flexibility to best accommodate your setting
• Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
• Lock provides added security of unit (2 keys included)
• Space-saving design that offers easier cleanability
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Efficient performance with reliable temperature stability
• Front-located LED light ensures entire interior is lit when door opens
• Allows the unit to be used freestanding
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALRF48 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed. Inside, the ALRF48 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover. With its compact size and convenient features, the ALRF48 is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

Overview

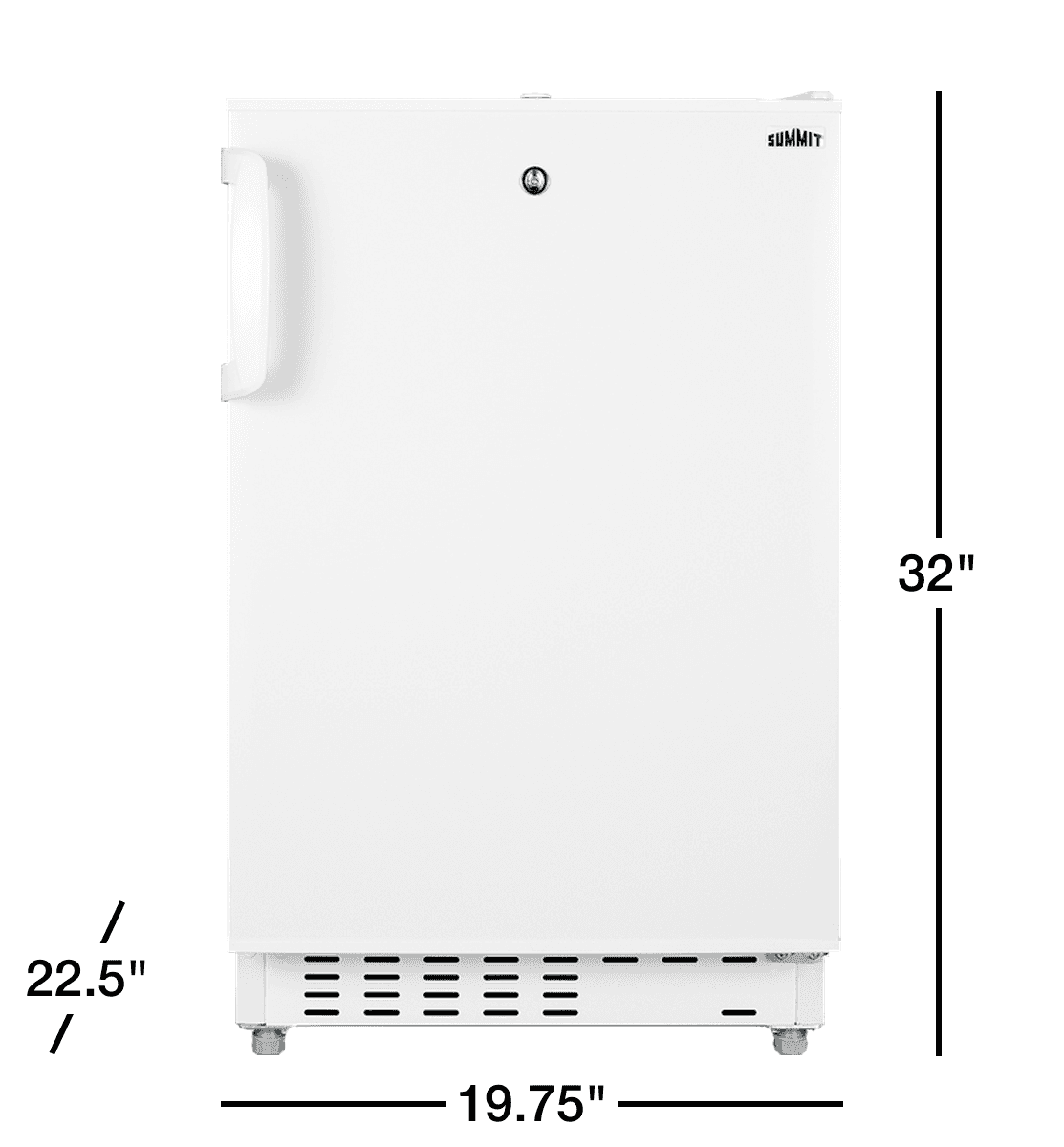

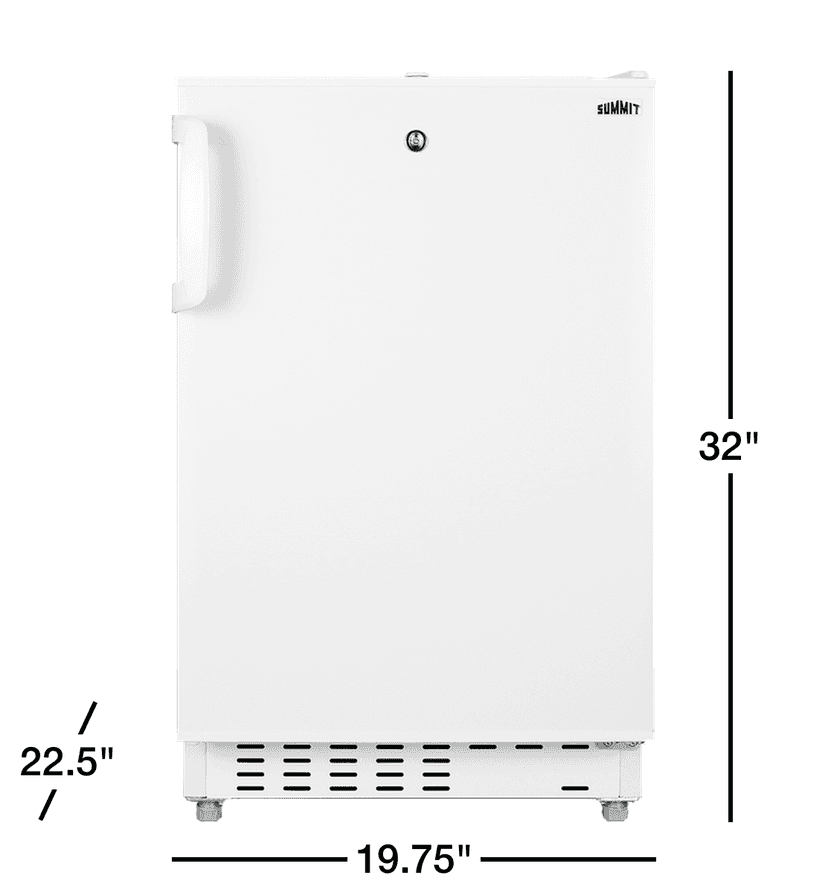

Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.68 cu.ft. (76 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	259.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Shipping Weight	93.0 lbs. (42 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063034
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	17.5" (44 cm)
Refrigerator - Interior Width	16.25" (41 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Refrigerator - Temperature Range	35-46 F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	0.92 oz.
Freezer - Interior Height	5.75" (15 cm)
Freezer - Interior Width	16.25" (41 cm)
Freezer - Interior Depth	11.25" (29 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Sound Level	32.9 dB
