SUMMIT 18" Wide Built-in Integrated Dishwasher, ADA Compliant (panel Not Included)

• Slim fit with full dishwashing capability for a great addition to any small kitchen
• 32.25" high to fit under lower counters following ADA guidelines
• Advanced sound absorbing construction operates at 47 dB
• Intuitive button controls with a digital display to ensure you select the proper cycle
• Touch controls are located on the top of the door, providing a cleaner look to better integrate into your kitchen
• Unfinished door is designed to accept your own panel and handle, creating a seamless look to blend into your kitchen cabinetry
• Durable interior ensures long-lasting use
• Two easy-gliding racks for easy loading and long-lasting durability
• The upper rack can be repositioned to help accommodate taller items
• Top rack includes side pieces that help to keep tall glasses safely in place, or alternatively, allow you to maximize capacity by stacking smaller cups or holding longer items
• Lower rack includes two tines that can be folded down to make room for larger items, or raised to hold dishes in place
• Convenient basket makes it easy to arrange your silverware, and is also removable to open up more space if washing larger pots or pans
• Improved design to ensure both racks are properly cleaned
• Settings include Regular, Auto, Intensive, Intensive Plus, Daily, Delicate, Super, & Rinse
• Combine additional functions with your wash programs, including Sanitize, Extra Fast, Extra Dry, Hi-Temp, and Half Load
• Can be combined with any wash program to operate more efficiently for smaller loads of dishes
• Increases the water temperature in the final rinse for a cleaner wash
• Conveniently located inside towards the top of the door, with a push button release for easy loading
• Unit will self-adjust to the detergent type for optimum performance
• Allows you to program a wash cycle for up to 19 hours in advance
• Display screen will show when softening rinse aid needs to be adjusted
• Washing will stop if the machine detects an issue with the water supply or inlet tap
• Alert will flash if the dishwasher is taking in too much water or sensing a leak
• If food particles build up in the bottom filter, it can easily be removed and emptied as needed
• Includes three leveling legs that let you raise the unit to a standard 34" counter height, with an taller kickplate included to cover extra space
• Includes a pre-installed power cord with 3-pronged plug

Summit's European dishwashers offer true efficiency for the home, with ultra quiet operation. Model DW186NTADA is an 18" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This is a fully integrated dishwasher with an unfinished door designed to accept user-provided panels to create a seamless look that blends into your cabinetry. Users also provide their own handle. The control panel is located on top of the door to help ensure a seamless look with your kitchen. Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow. Inside, the DW186NTADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware. In addition to this dishwasher, Summit offers a stainless steel version (model DW185SSADA) as well as additional styles with front controls. Browse the full line to explore our assortment.

Overview

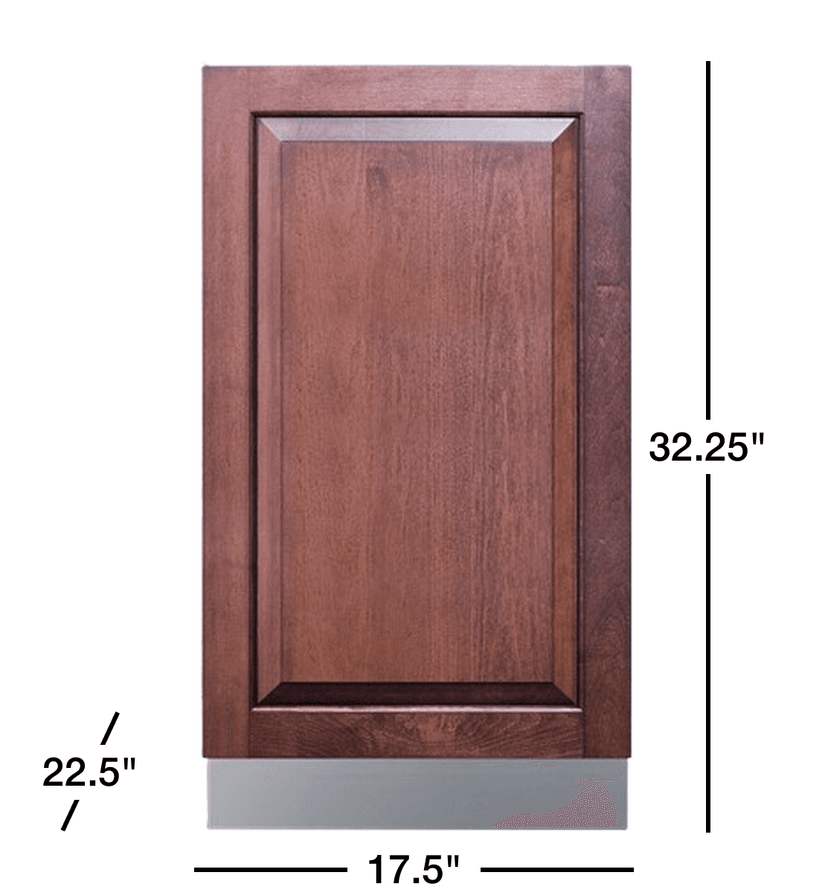

Height of Cabinet	32.25" (82 cm)
Width	17.5" (44 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.5" (116 cm)
Dishwasher	Standard
Door	Panel-Ready
Cabinet	Stainless Look
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	250.0kWh/year
Amps	12.0
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
UPC	761101089386
Dishwasher
Number of Cycles	8
Number of Racks	2
Rack Material	Wire
Silverware Basket	Yes
Delayed Start	Yes
China Setting	Yes
Interior Finish	Stainless Steel
Interior Height	24.75" (63 cm)
Interior Width	15.25" (39 cm)
Interior Depth	20.0" (51 cm)
Decibel Rating	47.0 dBA
Number of Options	8
Leveling Legs	Yes
Place Settings	8
