SUMMIT 18" Wide Built-in Beverage Center, ADA Compliant

• Make the best use of space by installing your appliance under the counter
• 32" height is designed to fit under lower ADA compliant counters
• ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
• Full display with a heat-safe glass door that keeps all stored items in view
• Fully wrapped stainless steel exterior cabinet for lasting durability
• Keyed lock for a secure interior
• Reduced maintenance with auto defrost system
• Electronic controls for precise temperature management.
• Gentle illumination with an on/off switch
• Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
• Space saving design
• User-reversible door swing allows for more flexibility in placing the unit
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

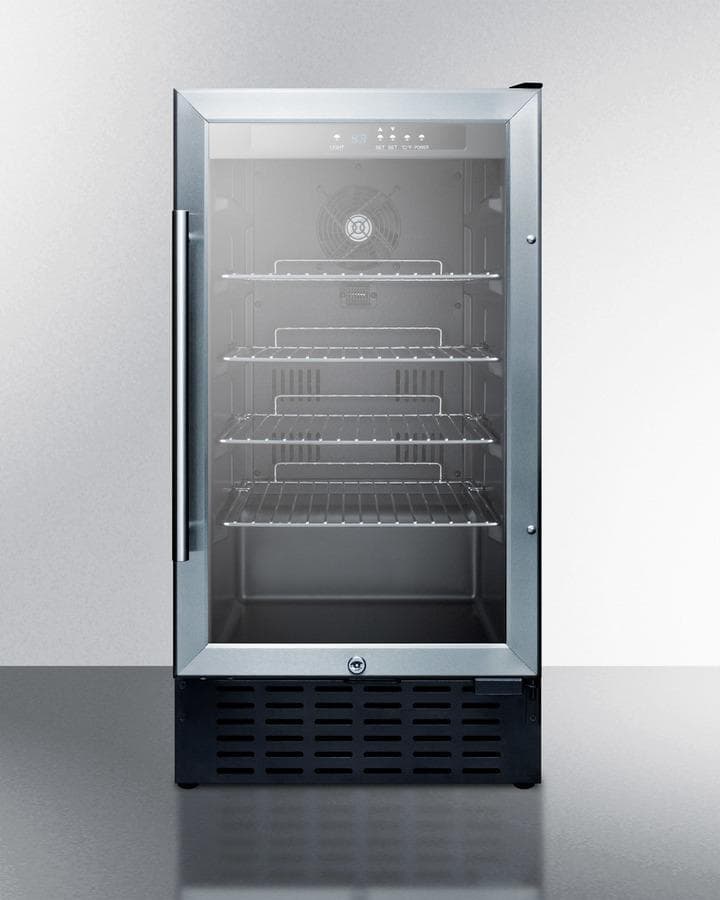

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting. The SCR1841BCSSADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. The reversible stainless steel trimmed door includes a factory installed lock and a professional style handle. This unit has a stainless steel wrapped cabinet and triple pane tempered glass door for heat-safe storage. Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. In addition to this unit, Summit offers a full collection of 18" wide ADA compliant choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

Overview

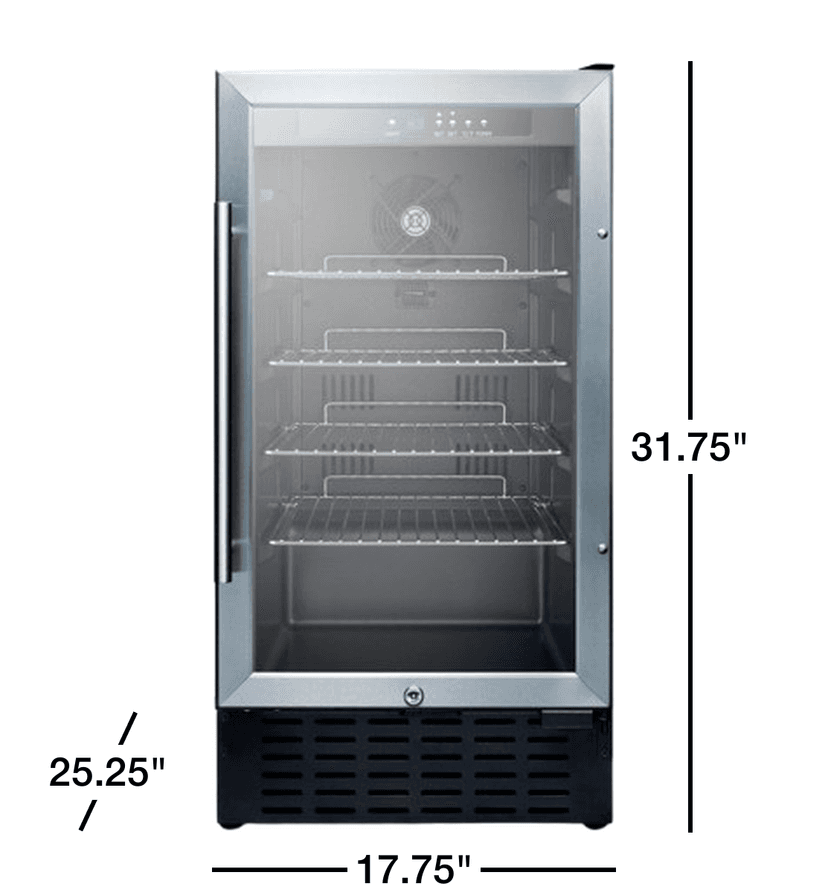

Height of Cabinet	31.75" (81 cm)
Width	17.94" (46 cm)
Depth	23.5" (60 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	284.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	103.0 lbs. (47 kg)
Shipping Weight	135.0 lbs. (61 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101050812
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34 to 64 F
Sound Level	34.2 dB
Dimensions
Interior Height	21.5" (55 cm)
Interior Width	12.75" (32 cm)
Interior Depth	4.5" (11 cm)
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)
