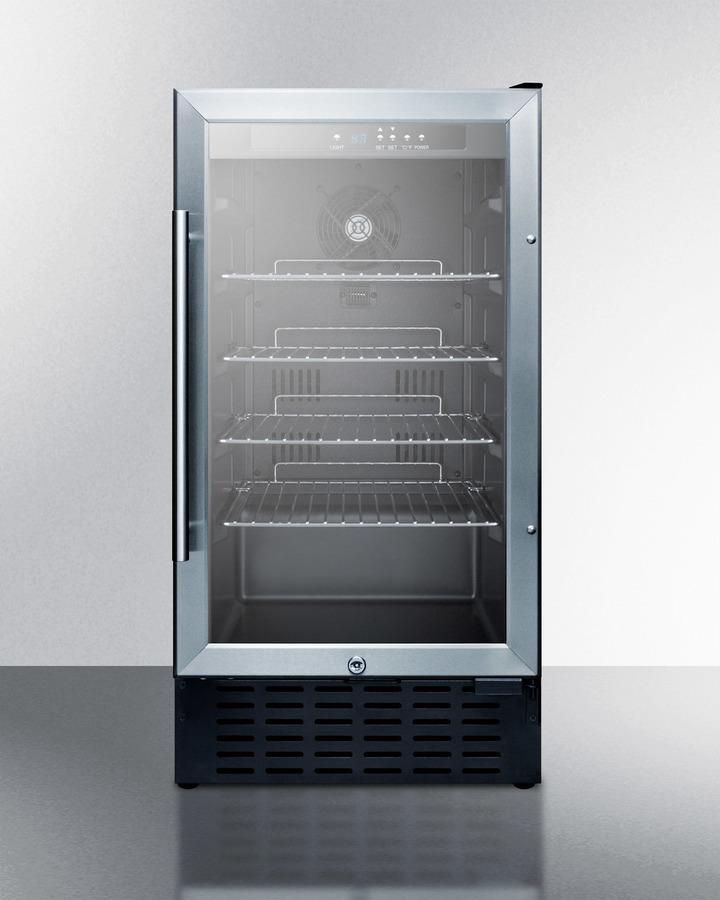

SUMMIT 18" Wide Built-in Beverage Center, ADA Compliant - Black

The SCR1841BADA is an 18" wide all-refrigerator specifically designed for residential use. Standing at 32" high, this unit fits perfectly under lower ADA-compliant counters. Its front-breathing system allows for built-in installation, while the fully finished black cabinet permits freestanding use. The refrigerator features a user-reversible stainless steel trimmed triple-pane tempered glass door for safe storage, accompanied by a professional handle and factory-installed lock. Inside, it offers four adjustable chrome shelves and elegant LED lighting within an auto-defrost interior. The digital thermostat provides intuitive temperature management. Summit's extensive collection of 18" wide ADA-compliant appliances includes single and dual-zone wine cellars, refrigerators, and frost-free freezers, all available on their website.

Highlights

• ADA compliant: 32" height designed to fit under lower ADA-compliant counters.

• Built-in capable: Make the best use of space by installing your appliance under the counter.

• Commercially approved: ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments.

• Stainless steel-trimmed triple-pane tempered glass door: Provides a full display of stored contents with a heat-safe triple-pane design.

• Factory-installed lock: Keyed security on the door.

• Digital thermostat: Electronic controls for precise temperature management.

• Digital display: Temperature readout can be shown in Celsius or Fahrenheit.

• LED lighting: Gentle illumination with an on/off switch.

• Automatic defrost: Reduced maintenance with the convenience of auto defrost.

• Adjustable chrome shelves: Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup.

• Reversible door: User-reversible door swing for added flexibility.

• Professional handle: Stainless steel look for added elegance.

• Flush back: Space-saving design.

• Fully finished black cabinet: Allows the unit to be used freestanding.

• 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals.

• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations.

• 32" height is designed to fit under lower ADA compliant counters
• Make the best use of space by installing your appliance under the counter
• ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
• Provides a full display of stored contents with a heat-safe double tempered design
• Keyed security on the door
• Electronic controls for precise temperature management.
• Temperature readout can be shown in Celsius or Fahrenheit
• Gentle illumination with an on/off switch
• Reduced maintenance with the convenience of auto defrost
• Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
• User-reversible door swing for added flexibility
• Stainless steel look for added elegance
• Space saving design
• Allows the unit to be used freestanding
• Environmentally friendly design with no ozone-damaging chemicals
• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting. The SCR1841BADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a user-reversible stainless steel trimmed triple pane tempered glass door for safe storage. A professional handle and factory-installed lock are included. Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. In addition to this unit, Summit offers a full collection of 18" wide ADA compliant choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

Overview

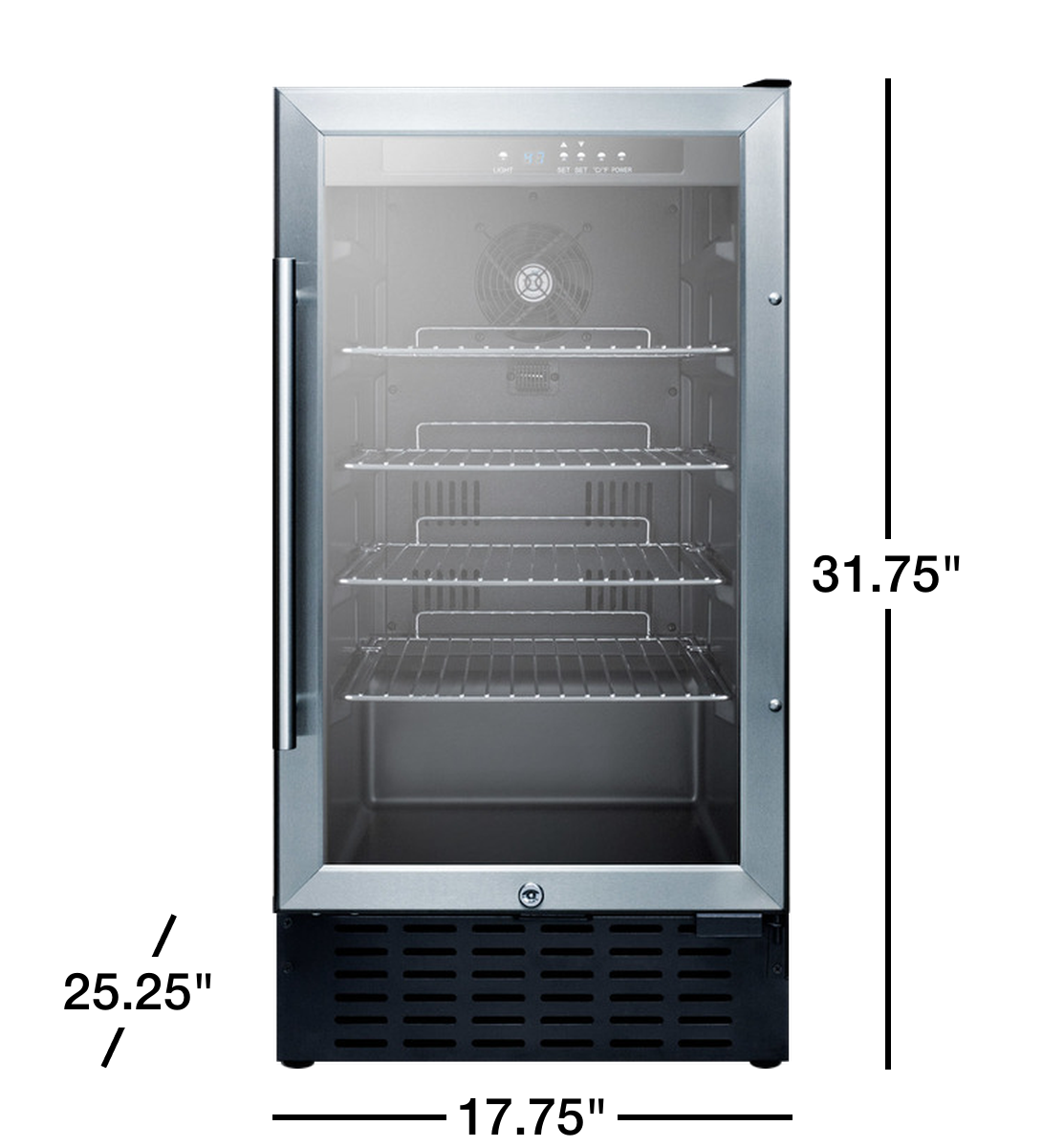

Height of Cabinet	31.75" (81 cm)
Width	17.75" (45 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	284.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	85.0 lbs. (39 kg)
Shipping Weight	123.0 lbs. (56 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101050799
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34 to 64 F
Sound Level	34.2 dB
Dimensions
Interior Height	21.5" (55 cm)
Interior Width	12.75" (32 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)
