SUMMIT 18" Wide 220v 2-burner Radiant Cooktop

• 3000W operation in a conveniently sized fit
• Easy operation with intuitive slide controls activated by a gentle touch
• Smooth surface and touch controls means no external knobs that can be easily lost in busy hotel settings
• Easy cleanup and elegant style on a smooth ceramic glass surface
• 1800W rear element offers powerful cooking for larger pots and pans
• 1200W front cooking zone in a 5.5" diameter accommodates smaller cookware
• Indicator will illuminate to warn if some part of the glass surface is too hot to touch
• Allows you to program either burner to heat at a specified level for up to 99 minutes
• Operating indicators light up to show which burner is in use
• Interior sensor monitors the cooktop temperature and will power off if needed
• Safety feature lets you lock the cooktop to prevent unsupervised heating
• Cooktop will turn off if power is left on without any control changes (timing varies by power level)
• Burners will automatically switch of if a control is accidentally held down for more than 10 seconds
• Upfront controls, easy-to-operate controls offer easier accessibility
• Designed for built-in installation in 16.5" x 20.25" cutouts
• Professional installation required (cord not included)

Summit offers a quality lineup of electric cooktops designed to suit any residential or hotel kitchen setup. Made in Europe, the CR2B228T is a 220-240V 2-burner radiant cooktop designed to fit popular 16.5" W x 20.25" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Upfront digital controls ensure safe, intuitive use, with slide controls that respond to a gentle touch. The design meets ADA guidelines for user compliance, ensuring those cooking don't have to reach over hot burners to adjust the controls. The rear 7" 1800W burner is ideal for boiling water and heating large cookware, while the front 5.5" 1200W element accommodates basic heating needs. Advanced safety features include automatic shutoff and unintended use protection to turn the burners off if accidentally activated, as well as a child lock function. This unit includes burner indicators and a residual heat indicator to warn if the surface is still hot to touch. A timer function offers added cooking convenience. With its user-friendly design and modern style, the CR2B228T is the perfect addition to smaller kitchen spaces that prioritize convenience and safety, especially in hospitality settings.

Overview

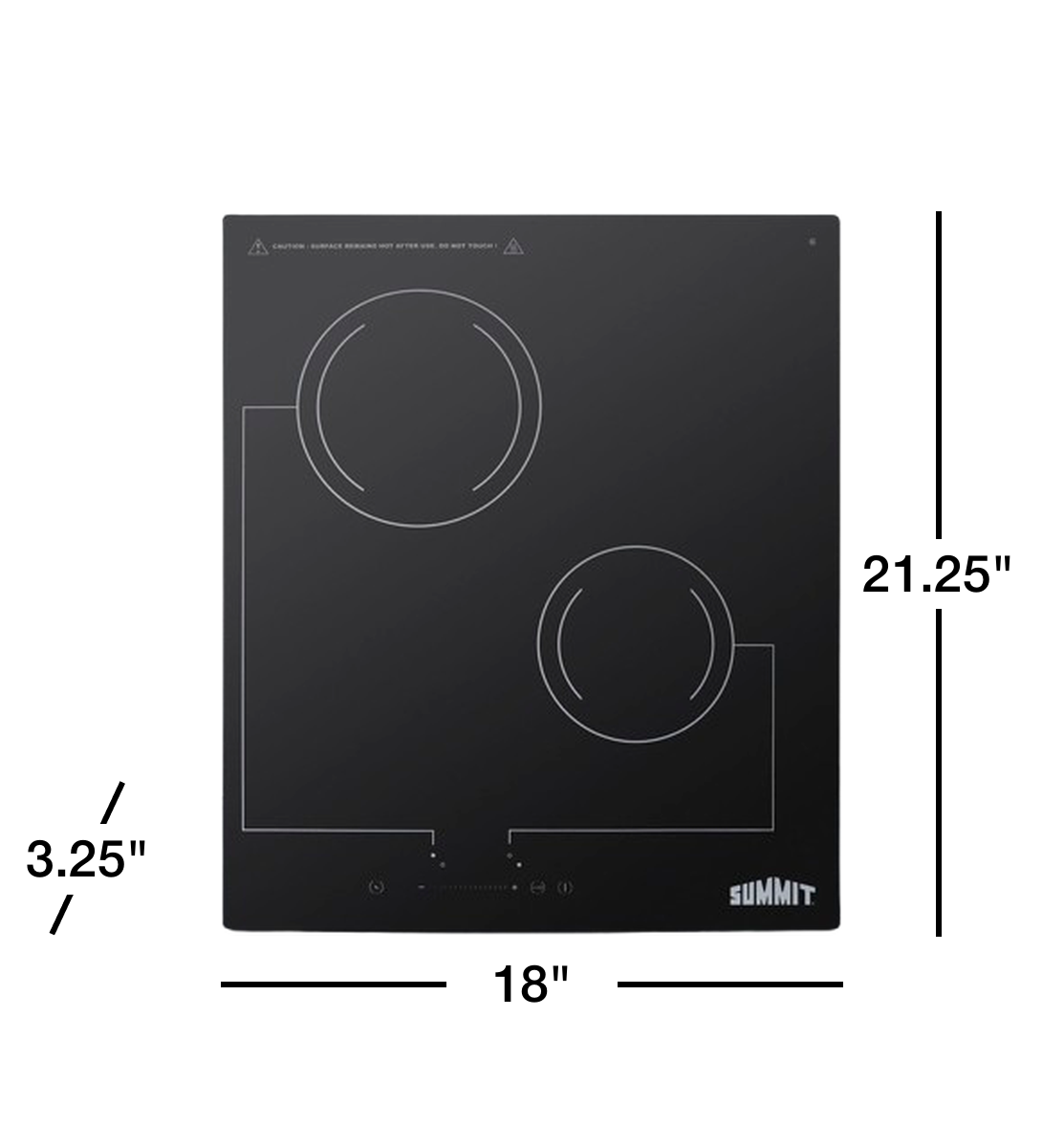

Height of Cabinet	3.25" (8 cm)
Width	18.0" (46 cm)
Depth	21.25" (54 cm)
Cabinet	Black
US Electrical Safety	ETL
Amps	20.0
Voltage/Frequency	220 V AC/60 Hz
Weight	20.0 lbs. (9 kg)
Parts & Labor Warranty	1 Year
UPC	761101085012
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	5.0" (13 cm)
Countertop Cutout Width	16.5" (42 cm)
Countertop Cutout Depth	20.25" (51 cm)
Element #1 Size	5.5" (14 cm)
Element #1 Wattage	1200.0
Element #2 Size	7.0" (18 cm)
Element #2 Wattage	1800.0
Power Cord Included	No
