SUMMIT 18" 8 Lb. Drain-free Icemaker, ADA Compliant (panel Not Included)

• Sized just under 32" high for installation under lower ADA compliant counters
• Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
• Make the best use of space by installing your appliance under the counter
• Convenient design allows more flexibility in positioning the unit
• Makes and stores up to 8 lbs. of crescent cubes
• Bucket can be removed for fast and easy cleaning
• Electronic controls for precise temperature management.
• Temperature readout can be shown in Celsius or Fahrenheit
• Eliminates the need to manually defrost the interior
• Adjustable chrome shelves included to accommodate additional items
• Space saving design with easier cleanability
• Allows the unit to be used freestanding
• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• Environmentally friendly design with no ozone-damaging chemicals
• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings. Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit. Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance. With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.

Overview

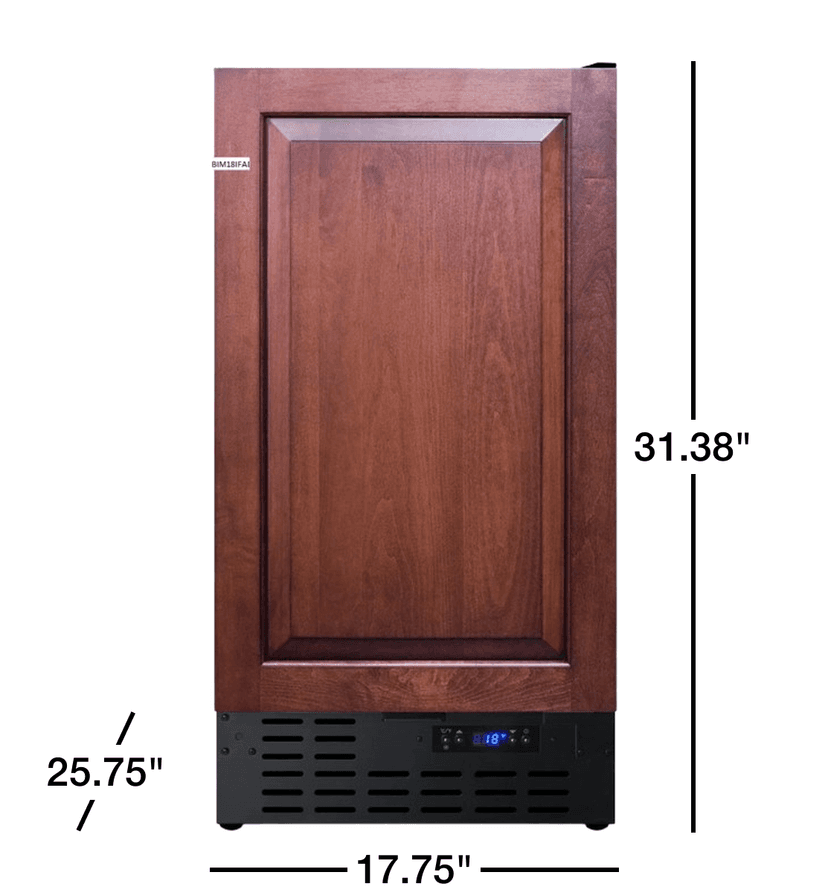

Height of Cabinet	31.38" (80 cm)
Width	17.75" (45 cm)
Depth	24.0" (61 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	40.0" (102 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	82.0 lbs. (37 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063751
Icemaker
Door Swing	RHD
Reversible	Factory Reversible
Daily Ice Production	8.0 lbs. (4 kg)
Ice Storage Capacity	8.0 lbs. (4 kg)
Ice Shape	Crescent
Number of Ice Cube Sizes	1
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	270.0
Low Side PSI	103.0
Interior Height	23.5" (60 cm)
Interior Width	12.75" (32 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)
Level Legs	4
Temperature Range	-22 to 14 F
